Metal High Sleeper
Assembly Instructions

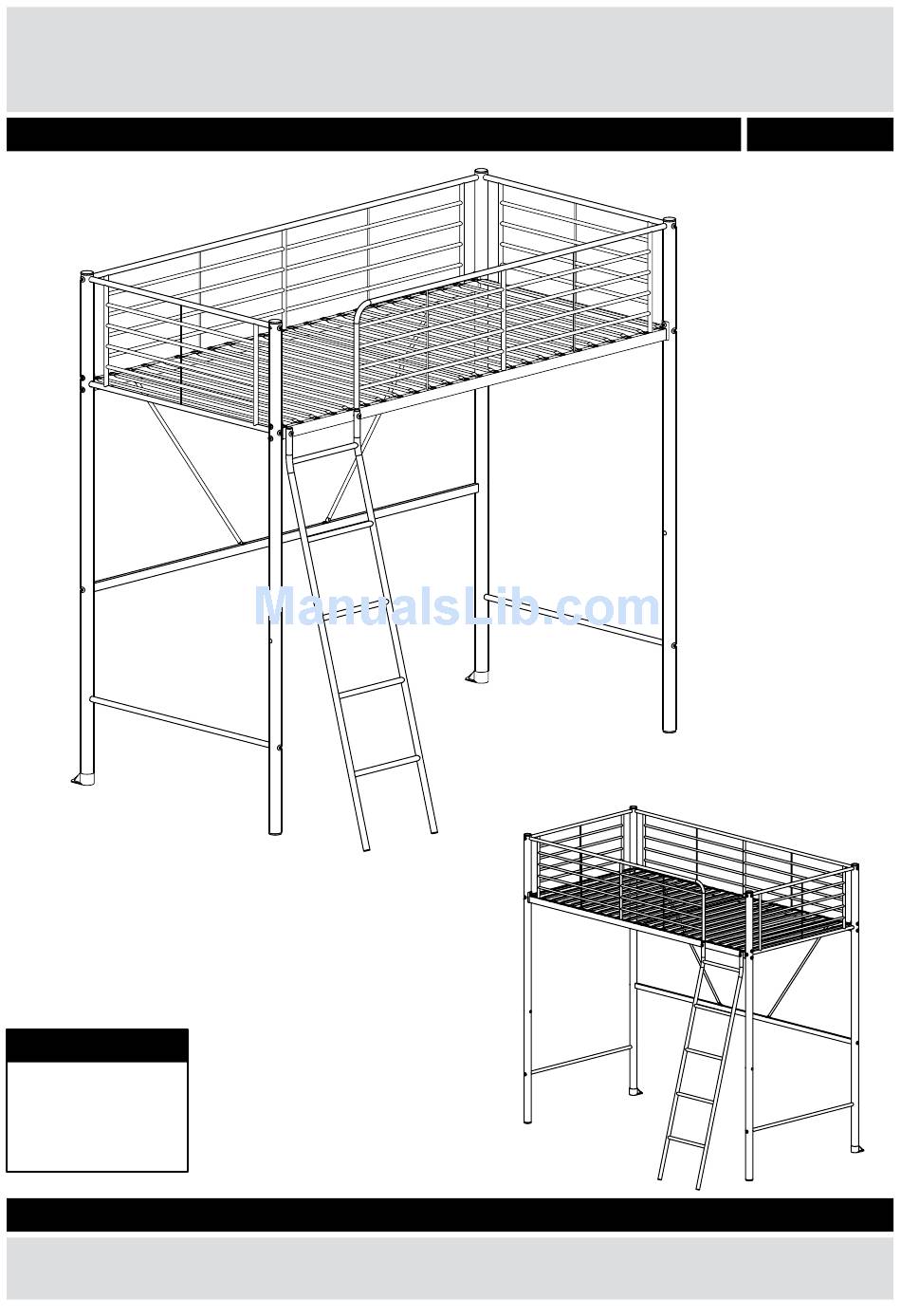

Dimensions
Length - 200cm
Width - 97.5cm
Height - 185cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
– Please keep for future reference
656/0159
Issue 2 - 26/06/13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 656/0159
Summary of Contents for Argos 656/0159
- Page 1 Metal High Sleeper Assembly Instructions 656/0159 – Please keep for future reference Dimensions Length - 200cm Width - 97.5cm Height - 185cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
-
Page 2: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Make sure you have enough • Place the product on flat and components and tools listed on space to layout the parts before steady surface during use. -
Page 3: Components - Parts
Components - Parts Please check you have all the parts listed below Corner post x 2 (Ø4.5 x 184.7cm) Corner post x 2 (Ø4.5 x 184.7cm) Smaller diameter Lower stretcher (short) x 2 (Ø1.9 x 88.5cm) End panel x 2 Support x 2 (97 x 39.8cm) (Ø1.3 x 90cm) -
Page 4: Tools Required
Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 5 Assembly Instructions Step 1 Assembling side frames Lay front corner post ,rear corner post , end panel and lower stretcher flat on the floor as shown. Note: Hole at top Note: The holes in end panel must be at the top.
- Page 6 Assembly Instructions Step 2 Assembling rear guard Two people are needed here. With help, stand both side frames upright. Assemble rear guard in between the side frames as shown. Note: Do not fully tighten any screws during the assembly. Secure at the top using fixings shown.
- Page 7 Assembly Instructions Step 3 Assembling front guard At this stage, choose if you want the ladder on the right hand side or left hand side. According to which side you want the ladder, assemble front guard in between the side frames as shown.
- Page 8 Assembly Instructions Step 4 Attaching ladder Assemble ladder front guard using fixings Note: fixings located inside the frame as shown.
- Page 9 Assembly Instructions Step 5 Assembling slats Fit slats in the very last fixing holes at each end of the bed. Note: The arrow labels on slats must point outside. Note: Slats have been labelled for easier identification. Assemble slats using screws as shown.
