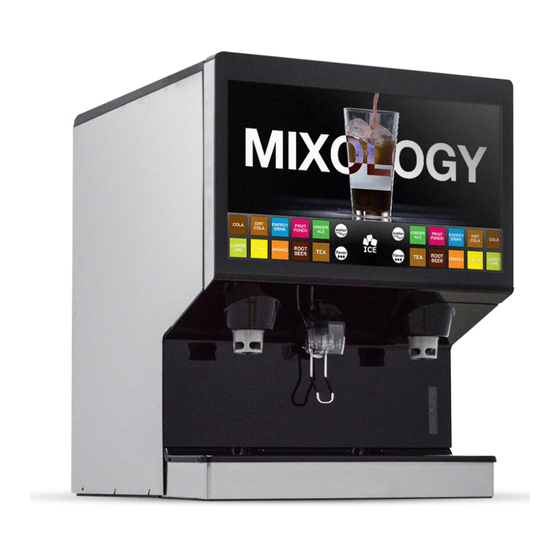

- Page 1 Cornelius IDC Pro255 Brix Setup...
- Page 2 Once the syrup lines are purged, it is now time to set the ratios. You MUST have ice on the cold plate for at least 30 minutes prior to setting the ratio. If you have not done so already, add ice to the hopper.
- Page 3 Accessing the Service UI Use the keypad on the screen to enter the correct code To access the service UI, tap the four corners of the video Store Level Access: 1111 portion of the screen in the order shown. Top right, top Manager Level Access: 2222 left, bottom left, bottom right.
- Page 4 Brix Setup: Access Brix Setup Tap Unit Setup Tap Brix Setup...
- Page 5 Brix Setup: Valve Layout Description When you activate a valve, it will dispense for a pre-programmed 4 second dispense. Note: The valve layout on the screen matches the physical valve layout in the IDC Pro • Example: A1 is the 1 valve from left on the top row •...
- Page 6 Brix Setup: Setting Left Side Water Flowrate When you activate a valve, it will dispense for a pre-programmed 4 second dispense. Left Side Flowrate Target: CW1 = 7oz. CW2 = 3oz. PW1 = 7oz. PW2 = 3oz. Carb Water = 10oz. Plain Water = 10oz.
- Page 7 Brix Setup: Setting Right Side Water Flowrate When you activate a valve, it will dispense for a pre-programmed 4 second dispense. Right Side Flowrate Target: CW3 = 7oz. CW4 = 3oz. PW3 = 7oz. PW4 = 3oz. Carb Water = 10oz. Plain Water = 10oz.
- Page 8 Brix Setup: Setting Left Side Syrup Flowrate When you activate a valve, it will dispense for a pre-programmed 4 second dispense. Left Side Flowrate Target: Follow syrup manufacturer or account specs Place your brix cup under the appropriate nozzle. Tap the appropriate valve to activate the dispense and capture the volume. Adjust the flow control as needed to achieve the correct flow rate;...
- Page 9 Brix Setup: Setting Right Side Syrup Flowrate When you activate a valve, it will dispense for a pre-programmed 4 second dispense. Right Side Flowrate Target: Follow syrup manufacturer or account specs Place your brix cup under the appropriate nozzle. Tap the appropriate valve to activate the dispense and capture the volume. Adjust the flow control as needed to achieve the correct flow rate;...
- Page 10 Brix Setup: Setting Left Side Flavor Shot Flowrate When you activate a valve, it will dispense for a pre-programmed 4 second dispense. Left Side Flowrate Target: Follow syrup manufacturer or account specs Place your brix cup under the appropriate nozzle. Tap the appropriate valve to activate the dispense and capture the volume.
- Page 11 Brix Setup: Setting Right Side Flavor Shot Flowrate When you activate a valve, it will dispense for a pre-programmed 4 second dispense. Right Side Flowrate Target: Follow syrup manufacturer or account specs Place your brix cup under the appropriate nozzle. Tap the appropriate valve to activate the dispense and capture the volume.
