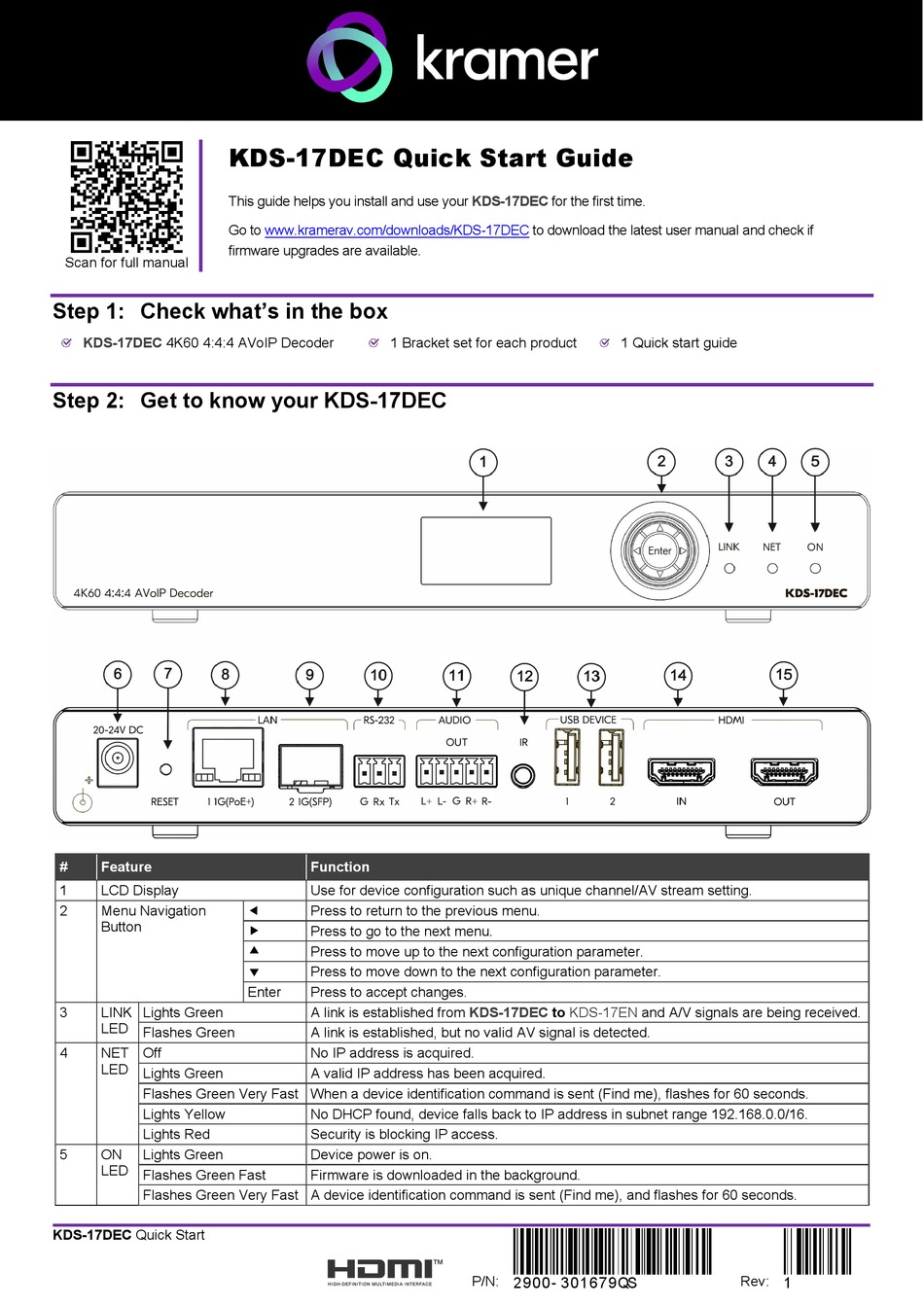

Kramer KDS-17DEC Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

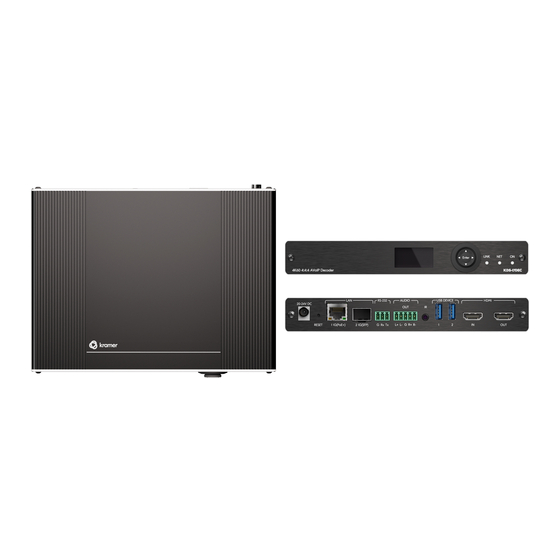

KDS-17DEC 4K60 4:4:4 AVoIP Decoder

Step 2: Get to know your KDS-17DEC

# Feature
1 LCD Display
2 Menu Navigation
Button
3 LINK Lights Green
LED
Flashes Green
4 NET Off
LED
Lights Green
Flashes Green Very Fast When a device identification command is sent (Find me), flashes for 60 seconds.
Lights Yellow
Lights Red
5 ON Lights Green
LED
Flashes Green Fast
Flashes Green Very Fast A device identification command is sent (Find me), and flashes for 60 seconds.
KDS-17DEC Quick Start
KDS-17DEC Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/KDS-17DEC
firmware upgrades are available.
1 Bracket set for each product
Function
Use for device configuration such as unique channel/AV stream setting.
Press to return to the previous menu.

Press to go to the next menu.

Press to move up to the next configuration parameter.

Press to move down to the next configuration parameter.

Enter Press to accept changes.
A link is established from
A link is established, but no valid AV signal is detected.
No IP address is acquired.
A valid IP address has been acquired.
No DHCP found, device falls back to IP address in subnet range 192.168.0.0/16.
Security is blocking IP access.
Device power is on.
Firmware is downloaded in the background.
KDS-17DEC
for the first time.
to download the latest user manual and check if
1 Quick start guide
KDS-17DEC to KDS-17EN and A/V signals are being received.
P/N: 2900- 301679QS Rev: 1
