- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VM-100CB 1:10 Video Component Distributor...
-
Page 2: Table Of Contents
Figure 4: Connecting Several VM-100CB Units Tables Table 1: Front Panel VM-100CB 1:10 Video Component Distributor Features Table 2: Rear Panel VM-100CB 1:10 Video Component Distributor Features Table 3: VM-100CB Underside Trimmer Features Table 4: Technical Specifications of the VM-100CB 1:10 Video Component Distributor Contents... -
Page 3: Introduction
2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 4 For example, you can connect 2 VM-100CB units to make a 1:20 Component Distributor (see section 5.2) Introduction... -
Page 4: Your Vm-100Cb

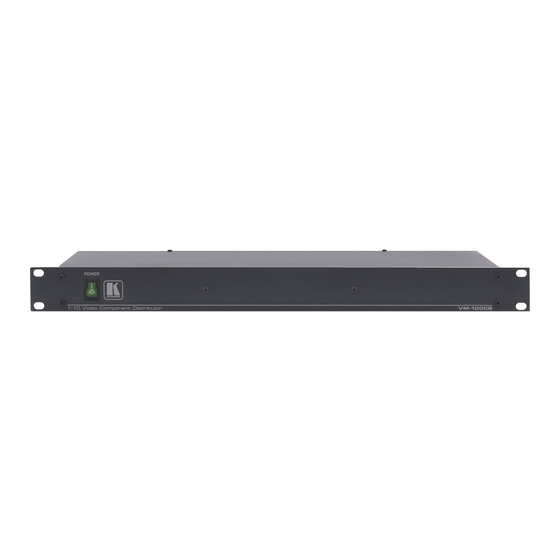

Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer VM-100CB away from moisture, excessive sunlight and dust Your VM-100CB Figure 1, Table 1, and Table 2 define the VM-100CB 1:10 Video Component Distributor: Your VM-100CB KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 6: Table 1: Front Panel Vm-100Cb 1:10 Video Component Distributor Features
Table 1: Front Panel VM-100CB 1:10 Video Component Distributor Features Feature POWER Switch Illuminated switch for turning the unit ON or OFF Table 2: Rear Panel VM-100CB 1:10 Video Component Distributor Features Feature Y BNC Connector R-Y BNC Connector B-Y BNC Connector... -
Page 7: Figure 2: Vm-100Cb Underside Trimmers
Figure 2 and Table 3 define the trimmers and switches on the underside of the VM-100CB: Figure 2: VM-100CB Underside Trimmers Table 3: VM-100CB Underside Trimmer Features Feature B-Y EQ. Trimmer B-Y LEVEL Trimmer R-Y EQ. Trimmer R-Y LEVEL Trimmer Y EQ. -
Page 8: Connecting The Vm-100Cb
1 Switch OFF the power on each device before connecting it to your VM-100CB. After connecting your VM-100CB, switch on its power and then switch on the power on each device 2 If less than 10 outputs are needed, connect only those outputs of the VM-100CB that are required, and leave the other outputs unconnected... -
Page 9: Connecting Several Vm-100Cb Units
5. Connect both power cords Figure 4: Connecting Several VM-100CB Units 1 Switch OFF the power on each device before connecting it to a VM-100CB unit. After connecting all VM-100CB units, switch on their power and then switch on the power on each device... -
Page 10: Technical Specifications
WEIGHT: ACCESSORIES: 1 Specifications are subject to change without notice Technical Specifications of the VM-100CB 1:10 Video Component Distributor Y, Pb/Cb, Pr/Cr) on BNC 1 set of component video ( Y, Pb/Cb, Pr/Cr) on BNC 10 sets of component video ( 2.2Vpp... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
