- Page 1 CORDLESS IMPACT WRENCH MODEL NO: CIR18Li PART NO: 4500615 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1217 ISS 3...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Impact Wrench. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS WORK ENVIRONMENT 1. Keep the work area clean and tidy and free from trip hazards. 2. Do not wear loose clothing or jewellery. Tie long hair out of the way. 3. If wearing gloves, make sure that there is no frayed material that could catch in rotating parts. -
Page 4: Impact Wrench Safety Instructions
14. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. 15. ALWAYS use an approved cable extension suitable for the power rating of the battery charger (see specifications), the conductor size should also be at least the same size or larger than that on the charger. -
Page 5: Safety Symbols
4. Dispose of spent batteries correctly as they contain Lithium-ion. They are re- cyclable and should be taken to a recycling centre to be disposed of as stipulated by local regulations. Do not incinerated battery as it may explode when exposed to fire. Do not attempt to open, disassemble, modify or service a battery pack. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. The battery charger for this product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. -
Page 7: Product Overview

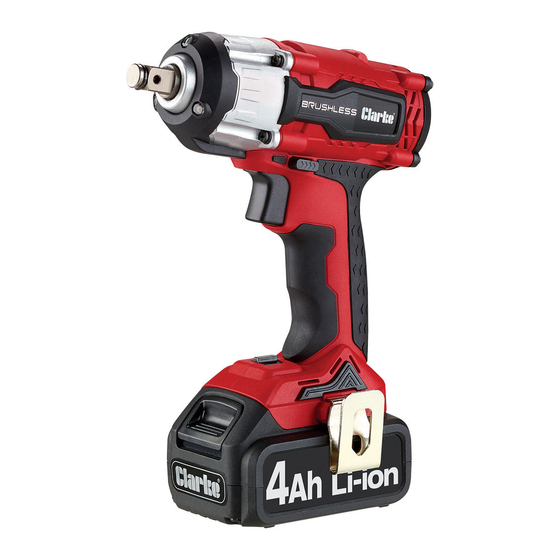

PRODUCT OVERVIEW The CIR18Li is a professional, cordless impact wrench which is rechargeable using the mains power adaptor. The key design features are shown above. Upon receipt, check the components against the following list. Any damage or deficiency should be reported to your Clarke dealer immediately. -
Page 8: Battery Charging
BATTERY CHARGING The battery will have been shipped in a low charge state and will require charging before use. 1. Press the battery release clip on the front of the battery pack and slide the battery pack from the impact wrench. 2. -
Page 9: Operation
The battery pack should slide in easily. If it is not to be fitted immediately, ensure that the metal contacts are protected to avoid the possibility of a short circuit which would cause battery damage. For maximum battery life, we recommend that you maintain the battery in a fully charged state. -
Page 10: Speed Selection
SPEED SELECTION 1. Three running speeds are available by moving the rocker switch shown. LOOSENING A NUT 1. Fit the appropriate socket to the square drive of the impact wrench. 2. With the FORWARD/REVERSE switchbar in the REVERSE running position, hold the wrench firmly and pull the trigger. -
Page 11: Maintenance
Keep the unit clean by wiping with a dry cloth. DO NOT use solvents as a cleaning agent. Your Clarke impact wrench has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer. -
Page 12: Battery Disposal
ACCESSORIES A wide range of impact wrench accessories is available from your nearest Clarke dealer, for further information, contact your nearest dealer, or telephone Clarke International Sales department on 01992 565300. Suitable impact wrench compatible socket sets include the following:... -
Page 13: Component Parts List
COMPONENT PARTS LIST Description No Description Screw M4 x 18 Side Pad Spring Washer Screw st3x12 Rubber Baseboard Fastener Surround Screw Screw 3-Position Button Lamp Assembly Battery Impact Drive Assembly Baffle Motor Control Board Rear Cover Belt Clip Screw st3 x 14 Screw M4 x 8 Forward/Reverse Selector Bar 3-speed Control Switch... -
Page 14: Specifications
1.5 m/s Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
