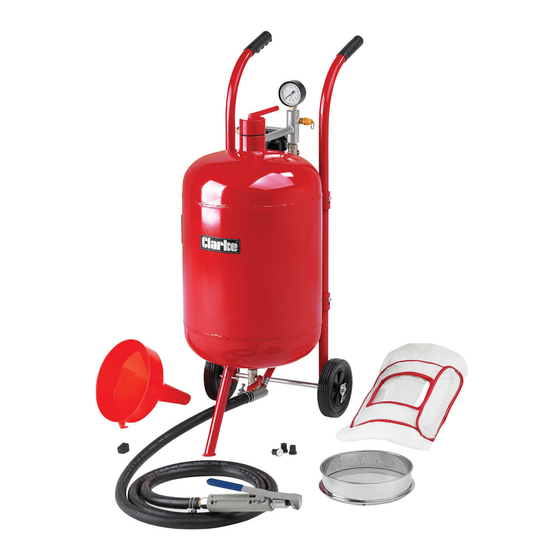

- Page 1 PRESSURISED SANDBLASTER MODEL NO: CPSB100B PART NO: 7640133 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0218 ISS1...
-
Page 2: Carton Contents
INTRODUCTION Thank you for purchasing this CLARKE Pressurised Sandblaster. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLIES. 1. Read this instruction manual before connecting the sandblaster to your compressor. 2. -
Page 4: Environmental Protection
14. Do not attempt to operate this product near flammable materials or combustibles. Failure to comply may cause serious injury. 15. Always make sure that the trigger is not on before connecting the sandblaster to the air supply. 16. Store idle equipment out of the reach of children and untrained persons. Tools may be dangerous in the hands of untrained users. -
Page 5: Fit The Pressure Gauge To The Tank
ASSEMBLY FIT THE PRESSURE GAUGE TO THE TANK 1. Screw the pressure gauge onto Fig 1 the sandblaster as shown in Fig 1. FIT THE HANDLE BARS TO THE TANK 1. Lay the tank on a flat level surface Fig 2 such as a workbench, with the handlebar mounting brackets facing up, as shown in Fig 2. -
Page 6: Assemble The Axle
ASSEMBLE THE AXLE 1. Slide the axle through the holes at the bottom of the handlebars, see Fig 3. 2. Slide a washer onto each end of the axle. 3. Slide a wheel onto each end of the axle followed by another washer. -
Page 7: Operation
AND PROPERLY SEALED. WARNING: THIS SANDBLASTER IS NOT INTENDED FOR USE WITH SILICA BASED ABRASIVES. WHICH HAVE BEEN LINKED TO SEVERE RESPIRATORY DISEASE. ALWAYS USE SILICA SUBSTITUTES (SUCH AS CLARKE GLASS BEAD ABRASIVE. SAFETY AND HEALTH CONSIDERATIONS • Before opening the tank make sure it is not pressurized. Ensure the pressure gauge reads “0”. -
Page 8: Abrasive Selection And Loading
ABRASIVE SELECTION AND LOADING The type of abrasive you choose will greatly influence the amount of time needed to clean a given surface area. See page 12 for suitable abrasives. • To prevent clogging, ensure that the abrasive you use is dry. •... -
Page 9: To Start Blasting
TO START BLASTING NOTE: Start with all valves in the closed position. Following the instructions below will help prevent clogging in the delivery hose, outlet manifold and the gun. 1. Connect the compressor to the inlet connector. 2. Start the compressor and open the air supply valve, see Fig 10. -
Page 10: To Stop Blasting
TO STOP BLASTING 1. While continuing to squeeze the Fig 14 trigger, turn the abrasive control valve to the closed position, see Fig 14. 2. When you notice only air (no abrasive material) is coming out of the gun, you can stop the air flow by releasing the trigger. -
Page 11: Maintenance
MAINTENANCE WARNING: DISCONNECT THE SANDBLASTER FROM THE AIR SUPPLY BEFORE CHANGING ACCESSORIES, ATTEMPTING TO MOVE THE SANDBLASTER OR PERFORMING ANY MAINTENANCE. 1. Keep your sandblaster clean and protect it from damage. 2. When initially pressurising, check for leaks at the top of the tank and at all hoses and fittings. -
Page 12: Replacing The Nozzle
3. Remove the old nozzle (37). 4. lnsert the new nozzle. • A pack of 4 replacement nozzles are available from your Clarke dealer: Part number 7640132. 5. Replace the nozzle adapter (38) and firmly screw it onto the gun. -
Page 13: Specifications
SPECIFICATIONS Sand Grade Type Above 60-120 grit Abrasive Material Aluminium Oxide, Sand, Garnet, Glass Beads Tank Capacity (working) 32 Litres (7.04 Gallons) Operating Pressure 65 - 125 PSI (4.4 - 8.6 Bar) Flow Rate Required 169-707 l/min (6 - 25 CFM) depending on nozzle &... -
Page 14: Exploded Diagram
EXPLODED DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Parts List
PARTS LIST DESCRIPTION DESCRIPTION Tank Abrasive Media Hose Wheel Funnel Cotter Pin Hood Front Leg Lens (for Hood) Axle Upper Gun Body Handle Bar Lower Gun Body Handle Grip Metal Pipe Pan Head Screw Inlet Connector Hex Nut Adapter Safety Valve O-Ring 0-Ring Ceramic Nozzle...
