- Page 1 CORDLESS IMPACT WRENCH MODEL NO: CIR450C PART NO: 4500633 OPERATING & MAINTENANCE INSTRUCTIONS GC0415...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE Impact Wrench. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair out of the way. 3. Keep children and visitors away - do not let children handle the wrench. 4. -
Page 4: Impact Wrench Safety Instructions
21. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. IMPACT WRENCH SAFETY INSTRUCTIONS 1. ALWAYS use the impact wrench in the manner and for the functions described in these instructions. -
Page 5: Electrical Connections
3. Should you wish to replace the fuse cover, ensure that the correct replacement is used (as indicated by marking or colour code). 4. Replacement fuse covers can be obtained from your local Clarke dealer or most electrical stockists. FUSE RATING The fuse in the plug must be replaced with one of the same rating and this replacement must be ASTA approved to BS1362. -
Page 6: Safety Symbols

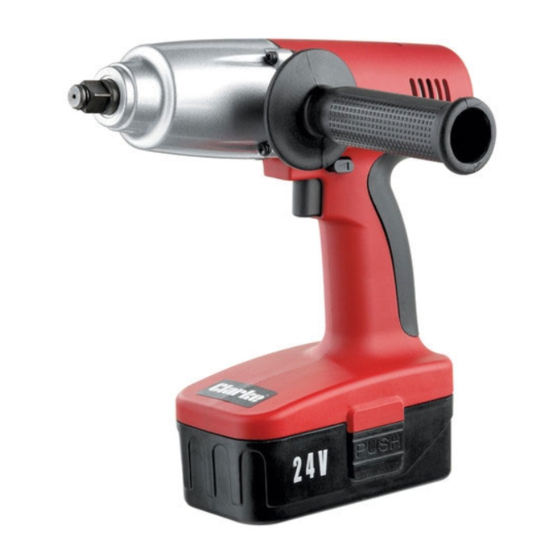

The CIR450 is a professional, cordless impact wrench which is rechargeable using the mains power adaptor. Upon receipt, unpack and lay out the components, checking against the following list. Any damage or deficiency should be reported to your CLARKE dealer immediately. 1. 24V Impact Wrench with 1.7 Ah battery pack 2. -
Page 7: Component Identification
2. Battery Release Button 3. Forward/Reverse Switch-bar 4. Battery Pack 5. Trigger 6. Wrist Strap 7. Hand Grip NOTE: The CIR450C charger is not compatible with the earlier CIR450/450B battery. BATTERY CHARGING 1. The new battery pack will require charging before use. - Page 8 Minimum 4°C /Maximum 50°C. Avoid placing batteries in direct strong sunlight or other heat source. NOTE: Ni-Cad batteries as used in Clarke cordless power tools should be given a full charge when first supplied new. Maximum battery performance will be achieved after approximately 5 complete charge/discharge cycles.
-
Page 9: Operation
Nickel cadmium batteries will slowly lose their power whilst in storage. If they become fully discharged, do not leave the batteries in this state for any length of time. OPERATION CAUTION: ALWAYS BE SURE THAT THE TOOL IS SWITCHED OFF BEFORE ATTACHING OR REMOVING A SOCKET. -
Page 10: Tightening A Nut
nut will be impacted repeatedly until it is loosened. IMPORTANT! Release the trigger immediately the nut begins to loosen. 3. Jack up the vehicle according to the vehicle handbook so that the wheel is clear of the ground, then proceed to fully undo the wheel nuts. WARNING: ENSURE THAT THE CORRECT SOCKET IS BEING USED FOR THE NUTS ON YOUR PARTICULAR VEHICLE. -
Page 11: Maintenance
Keep the unit clean by wiping with a dry cloth. DO NOT use solvents as a cleaning agent. Your Clarke Impact Wrench has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer. -
Page 12: Parts List
Bearing Screw Battery charger (not shown) is available separatly. A wide range of accessories is available from your nearest CLARKE dealer, for further information, contact your nearest dealer, or telephone CLARKE International Sales department on 01992 565300. Suitable impact wrench compatible socket sets include the following:... -
Page 13: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Specification
13.48 m/s Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
