StarTech.com SV431DD2DU3A Quick Start Manual

Quick-Start Guide
4-Port Dual Monitor DVI KVM Switch with Audio & USB 3.0 Hub
SV431DD2DU3A
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
Package Contents
• 1 x KVM Switch
• 4 x Rubber Feet
• 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
• 1 x Quick-Start Guide
Requirements
Console
• 2 x DVI Enabled Display Device
• 2 x DVI Cable (Male to Male)
• 1 x USB Keyboard
• 1 x USB Mouse
• (Optional) 1-2 x USB 3.0 Peripheral
• (Optional) 1-2 x USB 3.0 Cable (Type-A Male to Type-B Male)
• (Optional) 1 x Microphone-Enabled Audio Device
• (Optional) 1 x Speaker-Enabled Audio Device (or Headset/
Headphones)
• (Optional) 1-2 x 3.5 mm Audio Cable (Male to Male)
Source Computers
• 4 x Computer (with dual-head DVI capability)
• 8 x DVI Cable (Male to Male)
• 4 x USB 3.0 Cable (Type-A Male to Type-B Male)
• 4 x 2-in-1 Audio Cable (with Stereo Audio & Microphone Audio)
Note: This KVM Switch supports DVI-I. If you are using an analog
display or computer (DVI-A, VGA) ensure all of your PC connections
are also analog.

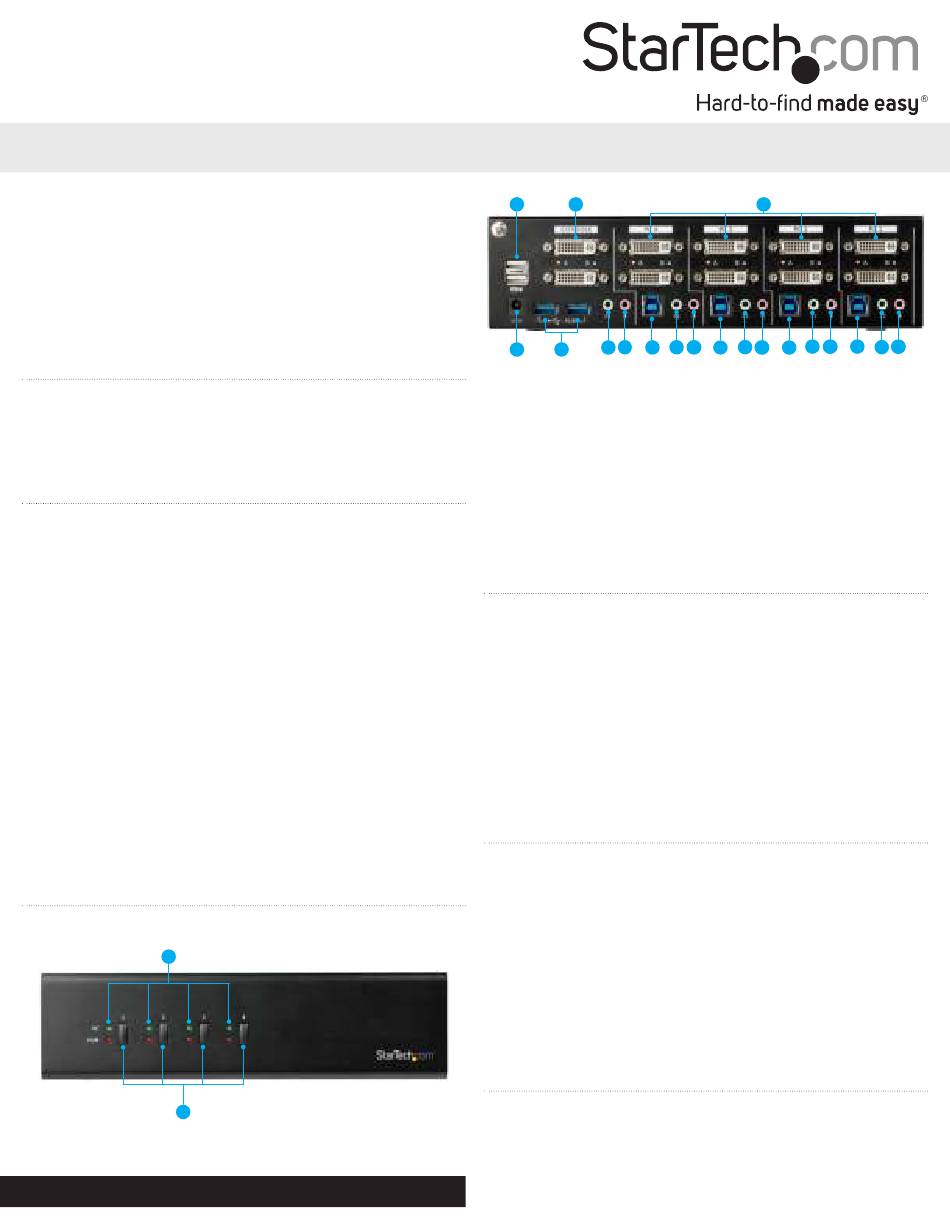

Product Diagram

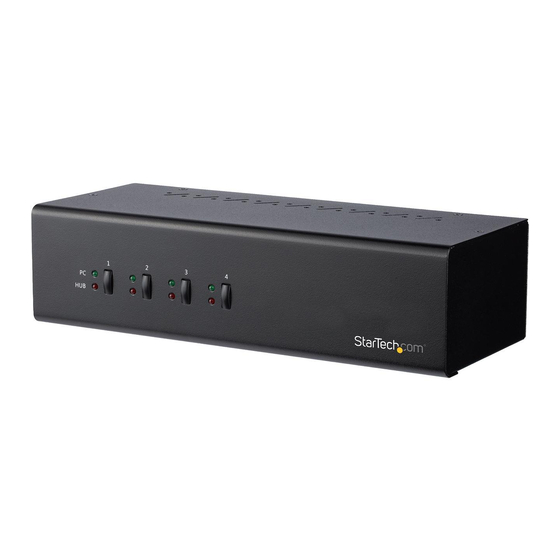

Front View
1
2
1. LED Indicators
2. Port Selection Buttons
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/SV431DD2DU3A.
*actual product may vary from photos
Rear View
1 2
6 7
8
4 5
1. Console USB 2.0 HID Ports (Keyboard and Mouse)
2. Console DVI Ports
3. PC DVI Ports
4. Power Input Port
5. Console Hub Ports (USB 3.0 Type-A)
6. Console Speaker Output Port
7. Console Microphone Input Port
8. PC USB Port (USB 3.0 Type-B)
9. PC Speaker Input Port
10. PC Microphone Input Port
Connect the PCs
1. Connect a DVI Cable from each of the DVI Ports on the Computer
to the PC DVI Ports under PC 1 on the KVM Switch.
2. Connect a USB A to B Cable (Type-A Male to Type-B Male) from
the USB A Port on the Computer to the PC USB Port (USB 3.0
Type-B) under PC 1 on the KVM Switch.
3. (Optional) If you're using Audio Devices, connect a set of 3.5
mm Audio Cables from the speaker / microphone port on your
computer to the corresponding PC Speaker Input Port / PC
Microphone Input Port under PC 1 on the KVM Switch.
4. Repeat steps 1 to 3 for any additional computers under PC 2, PC
3, and/or PC 4 on the KVM Switch.
Connect the Console
1. Turn off your Source Displays and any devices that you intend to
connect (e.g. printers, external hard drives, etc.).
2. (Optional) Connect 1-2 x USB 3.0 Peripheral(s) to the Console Hub
Ports on the KVM Switch.
3. Connect a Display to each of the Console DVI Ports on the KVM
Switch.
4. Connect a USB Keyboard and a USB Mouse to the Console USB 2.0
HID Ports on the KVM Switch.
5. (Optional) Connect a Speaker and Microphone, or a Headset-
Enabled Audio Device to the Console Speaker and Microphone
Ports on the KVM Switch.
Power-On Sequence
1. Connect the Universal Power Adapter from a wall outlet to the
Power Input Port on the KVM Switch.
2. Power on all USB 3.0 Peripherals.
3. Select PC 1 and power on the corresponding Computer.
3
10 9 10
9 8 9 10 8
*actual product may vary from photos
Manual Revision: 06/28/2018
