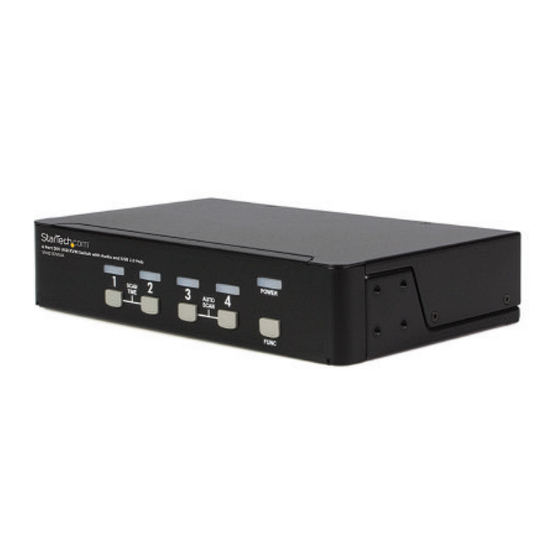

4 Port DVI USB KVM Switch with Audio
and USB 2.0 Hub
SV431DVIUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/22/2021
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com STCSV431DVIUA
Summary of Contents for StarTech.com STCSV431DVIUA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/22/2021...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Features ................................ 1 Before You Begin ............................1 Package Contents ............................. 1 Installation ....................2 Console Connections ..........................2 Connecting Slave Computers ....................... 3 Operation ....................4 Rack Mount Kit (Optional) ..............6 Troubleshooting ..................7 Specifications ..................8 Technical Support ..................9 Warranty Information ................9 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com 4 Port StarView DVI USB KVM Switch. This product offers a cost-effective way to operate up to four computers or servers from a single keyboard, monitor and mouse peripheral set, while saving valuable deskspace. -
Page 5: Installation
Installation PC BIOS Notice: The following BIOS setup changes are necessary for PC users but are not required for Mac users: 1. In STANDARD CMOS, set HALT ON ERROR to ALL BUT KEYBOARD. 2. In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set the USB IRQ to ENABLED. -
Page 6: Connecting Slave Computers
2. Use a 4-in-1 USB, DVI, Audio and Microphone KVM Switch cable, such as USBDVI4N1A15 to connect each computer to the desired port. For more information, please see Accessory Products from StarTech.com. Male to Male DVI One USB patch cable... -
Page 7: Operation
Please note: SV431DVIUA can be used with a VGA connection to controlled (slave) computers, however an adapter must be used to make the connection (please see Accessory Products from StarTech.com - DVIVGAMF). Also note: Analog and digital connections cannot be used concurrently. To successfully connect SV431DVIUA to the slave computers, all connections must be either digital or analog. - Page 8 “FUNC” Button To adjust the optimal video signal strength corresponding to the length or quality of DVI cable being used, use the FUNC button in combination with the other front panel pushbuttons. 1. Press the FUNC button three times. The POWER LED will flash once per second. 2.
-
Page 9: Rack Mount Kit (Optional)
Rack Mount Kit (Optional) The figure below shows how to attach optional mounting brackets and cable support (SV431RACK) to SV431DVIUA for use with a standard 19” rack cabinet: To Rack Cabinet Back Post To Rack Cabinet Back Post USB to monitor cables to the switch Two screws secure the... -
Page 10: Troubleshooting
Troubleshooting Symptom Causes Solution Press any front panel In Auto Scan mode, the Keyboard or mouse does button to select a keyboard and mouse not work computer, then use the are not operable. keyboard and mouse. Re-install device driver. The device should be Improper device driver self-powered;... -
Page 11: Specifications
Specifications No. of computer supported Front Panel Push Button Hot Plug-and-Play support Automatic Scan Interval 3, 8, 15, 30 seconds Cable Length (Max) 4.6m(15’) for USB Computer ON-LINE LED Computer selected LED Monitor Type USB Type B x 4 Computer peripheral connector Monitor DVI female x 4 USB Type A x 4... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
