Summary of Contents for Comtrol ROCKET LINX MP1204-XT
- Page 1 QUICK INSTALLATION GUIDE 2000641 Rev A | Release Date - November 2017...

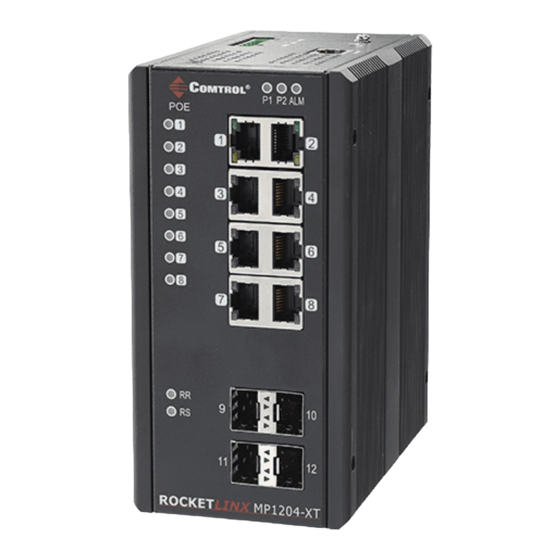

- Page 2 • Four 100/1000 SFP ports The MP1204-XT provides features needed for network control in an industrial network environment. See the Comtrol website (www.comtrol.com) for detailed product specifications and the product warranty. INSTALLATION OVERVIEW You can use the following information to install the MP1204-XT. If you need more detailed information, you can refer to the RocketLinx MP1204-XT User Guide on the download site (http://downloads.comtrol.com), which contains...
- Page 3 Electrical Specifications Value IEEE 802.3af 46-57/3.1A (Max) Power Input Voltage PWR1/PWR2 IEEE 802.3at 50-57VDC/5.2A (Max) IEEE 802.3af 15.4W Maximum PoE Power/Port IEEE 802.3at Power Budget PWR1/PWR2 240W Without PD load (Max) PoE with PD load (Max) 265W with 240W PSE Power Consumption IEEE 802.3af 2.92A @ 48VDC [134W]...
- Page 4 100/1000 Mbps fiber speed connections. Comtrol recommends using Comtrol-approved SFP mini GBIC transceivers. Note: Never attempt to view optical connectors that might be emitting laser energy. Do not power up the laser product without connecting the laser to the optical fiber and putting the dust cover in position, as laser outputs will emit infrared laser light at this point.
- Page 5 DIN RAIL MOUNTING Use the following procedure to mount the MP1204-XT on a DIN rail: Screw the DIN clip with screws in the accessory kit. Hook the unit onto the DIN rail. Push the bottom of the unit towards the DIN rail until it locks in place.
- Page 6 Using Telnet to Configure the IP Address You must have the MP1204-XT connected to your network. Open the command prompt and enter telnet 192.168.250.250. Enter admin as the Username and press the Enter key. Enter admin as the Password and press the Enter key.
- Page 7 Start the terminal emulation software and configure the port as previously described. You may need to press Enter to get the Username prompt. Enter admin as the Username and press the Enter key. Enter admin as the Password and press the Enter key. Enter enable and press the Enter key.
- Page 8 COMTROL CUSTOMER SERVICE You can use one of the following methods to contact Comtrol. Contact Method Web Address or Phone Number Support http://www.comtrol.com/support Downloads http://downloads.comtrol.com Website http://www.comtrol.com Phone +1 763.957.6000...
