Comtrol RocketPort Serial Hub Si Hardware Documentation

Product Overview

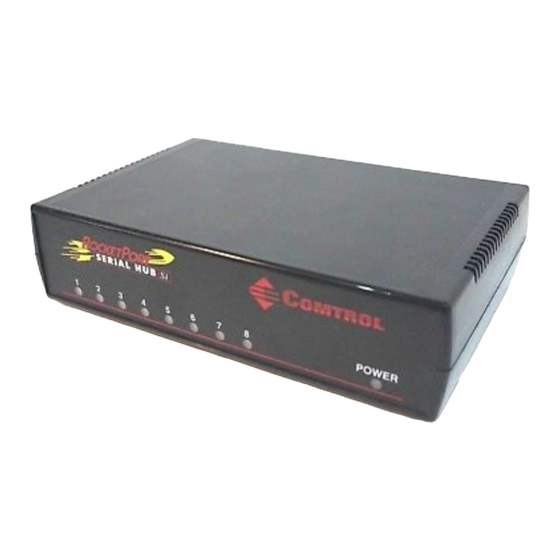

The RocketPort Serial Hub Si is a serial
communications device that easily connects to a 10/
100Base-T Ethernet hub, switch, or network interface
card (NIC).
The RocketPort Serial Hub Si uses a 33 MHz processor
specifically designed to process asynchronous serial
communications, thereby maximizing performance and
eliminating throughput bottlenecks.
RocketPort Serial Hub Si features include:
• Two DB9 selectable asynchronous RS-232, RS-422,
or RS-485 serial ports.
• Configurable network protocol, allowing the
RocketPort Serial Hub Si to use IP or MAC (media
access control) addressing. See the
Installation documentation for MAC or IP
addressing information.
• A power supply that supports input voltages
between 100 and 240 and 50 or 60 Hz operation.
• "Hot-swapping," which allows you to replace an
existing and configured RocketPort Serial Hub Si
with an identical unit, without downing the server
or reconfiguring ports.
• Auto polarity selection for network connection.
Some drivers feature:
• Multi-server port assignment, permitting the
sharing of this device with multiple servers. Each
individual server can be configured for MAC or IP
addressing.
• Port sharing among servers, the same port can be
used for multiple servers.
Product Overview
RocketPort™ Serial Hub Si
Hardware Documentation
What This Document Contains
Use this document to:
•
•
•
•
•
Software
•
•
•
See the RocketPort Serial Hub Si
documentation or the device driver readme file for
software installation information. The software
installation documentation may also provide
information about supporting applications available
with the driver for your operating system.
Additional or updated drivers may be available:
•
•
2-Port
Connect the RocketPort Serial Hub Si to the
network.
Verify that the RocketPort Serial Hub Si passes
the hardware diagnostics during the power up
phase.
Add additional units to an existing RocketPort
Serial Hub Si environment.
"Hot swap" RocketPort Serial Hub Si units that
have experienced a failure.
Build cables or loopback
- An ethernet crossover cable, if connecting the
RocketPort Serial Hub Si directly to a NIC card
(not included).
- Null-modem cable for the peripheral devices
that you are connecting to the RocketPort
Serial Hub Si (not included).
- RS-232/422 loopback plug (one included).
Troubleshoot installation or configuration
problems.
Review the RocketPort Serial Hub Si
and agency notices.
Contact Comtrol™ or download updated software
or documentation.
http://www.comtrol.com/coperate.htm
ftp://ftp.comtrol.com /readme.htm
plugs, including:
specifications
Software Installation
