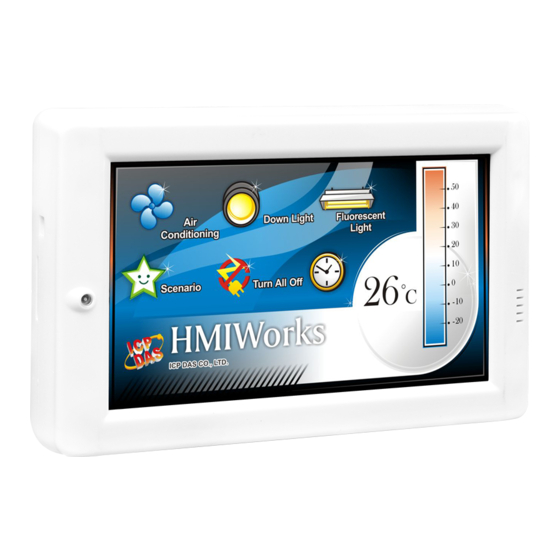

4.3" touch screen controller
Hide thumbs Also See for TPD-433-H:
1
2
3
4
5

Advertisement

Table of Contents

4.3" Touch Screen Controller
What's in the box?
Thanks for buying ICPDAS TPD-433-H/433-H-EU device.
This shipping package contains the following items:
TPD-433-H x 1
Back Piece x 1
Related Information
Documents, such as the User Manuals, the API References,
etc.:
https://www.icpdas-usa.com/tpd_433_h.html
Free Development Software, HMIWorks:
https://www.icpdas-usa.com/hmiworks.php
If you have any questions, please feel free to contact us via email.
TPD-433-H 4.3" Touch Screen Controller
ICP DAS USA, Inc. |
www.icpdas-usa.com
TPD-433-H
Quick Start
Quick Start x 1 (This Document)
PET Film Screen Protector
- QuickStart (Apr/2020)
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
57 mm x 98 mm x 1
1
