3
1

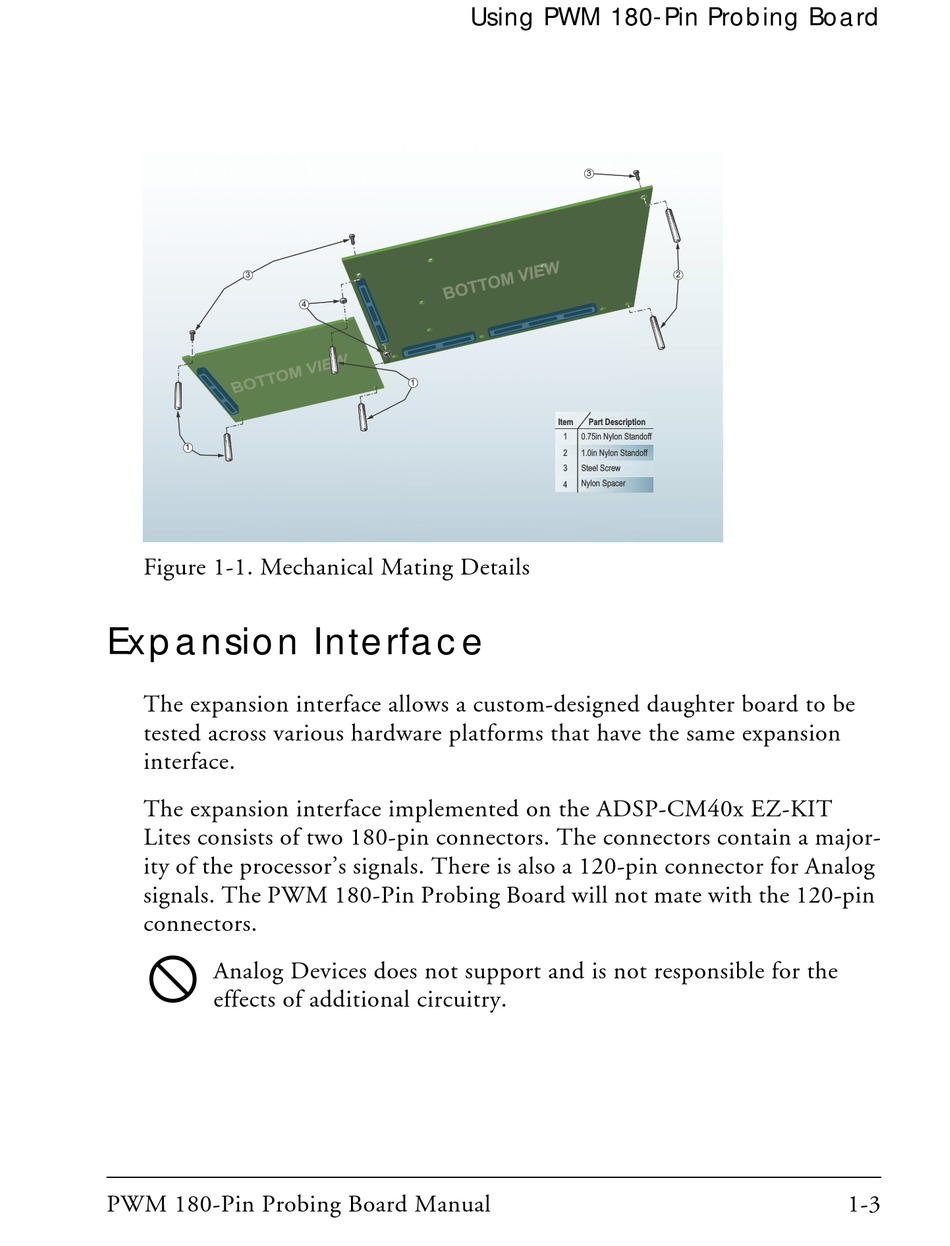

Figure 1-1. Mechanical Mating Details

Expansion Interface

The expansion interface allows a custom-designed daughter board to be
tested across various hardware platforms that have the same expansion
interface.
The expansion interface implemented on the ADSP-CM40x EZ-KIT
Lites consists of two 180-pin connectors. The connectors contain a major-
ity of the processor's signals. There is also a 120-pin connector for Analog
signals. The PWM 180-Pin Probing Board will not mate with the 120-pin
connectors.
Analog Devices does not support and is not responsible for the
effects of additional circuitry.
PWM 180-Pin Probing Board Manual
Using PWM 180-Pin Probing Board
4
1
3
2
Item
Part Description
1
0.75in Nylon Standoff
2
1.0in Nylon Standoff
Steel Screw
3
Nylon Spacer
4
1-3
