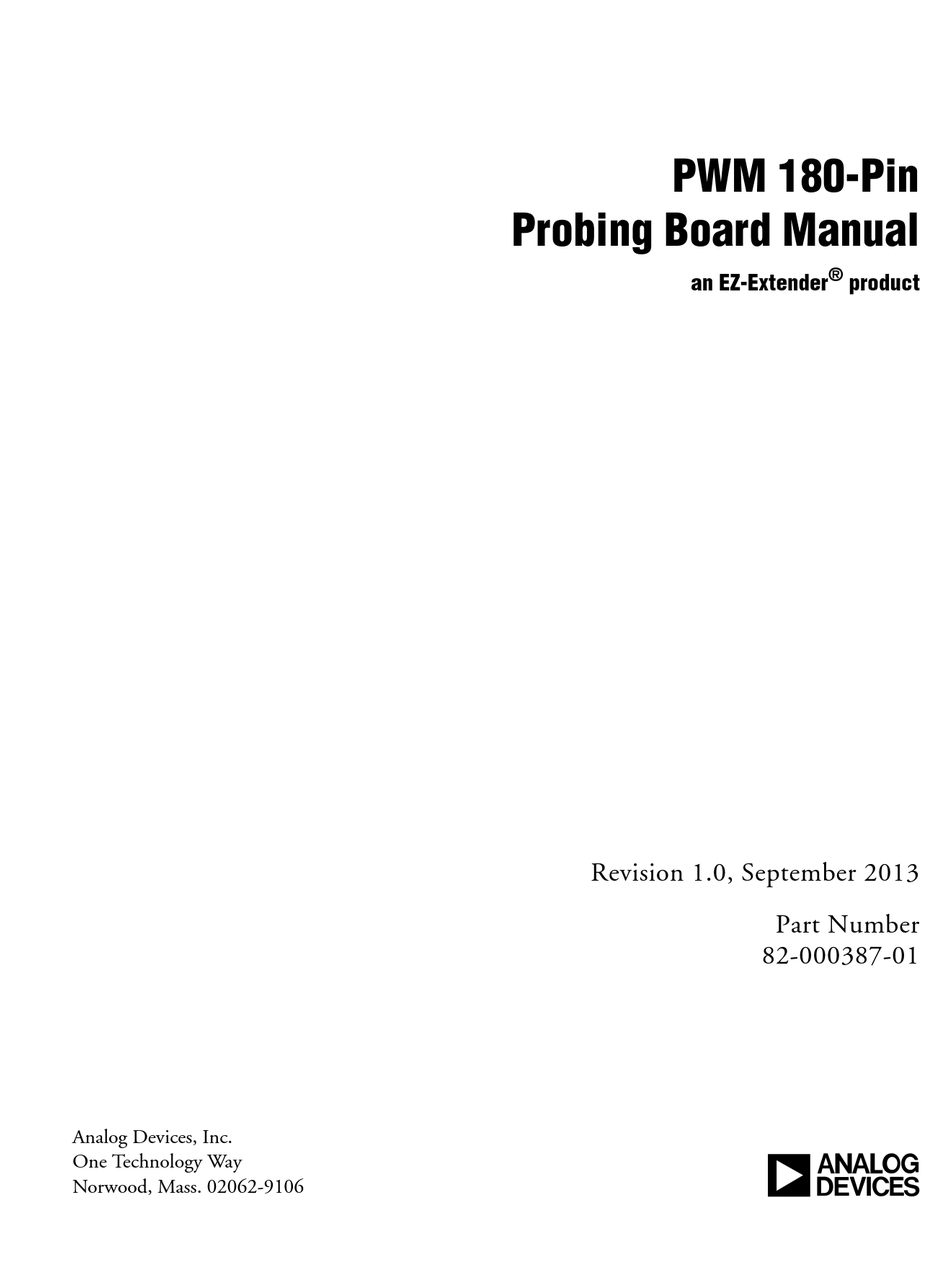

- Page 1 PWM 180-Pin Probing Board Manual ® an EZ-Extender product Revision 1.0, September 2013 Part Number 82-000387-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
- Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
- Page 3 Regulatory Compliance The PWM 180-Pin Probing Board is designed to be used solely in a labo- ratory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.
-
Page 5: Table Of Contents
Manual Contents ................ix What’s New in This Manual ............ix Technical Support ................x Supported Products ................x Product Information ............... xi Analog Devices Web Site ............xi EngineerZone ................xii Notation Conventions ..............xii PWM 180-Pin Probing Board Manual... - Page 6 Contents USING PWM 180-PIN PROBING BOARD Package Contents ................. 1-2 PWM 180-Pin Probing Board Installation ........1-2 Expansion Interface ..............1-3 Reference Design Information ............1-4 PWM 180-PIN PROBING BOARD HARDWARE REFERENCE System Architecture ..............2-1 Connectors ................... 2-2 Connector (J1) ............... 2-3 Connector (P1) ...............
-
Page 7: Product Overview
PREFACE Thank you for purchasing the PWM 180-Pin Probing Board, Analog Devices, Inc. probing board for the ADSP-CM40x family of mixed-signal control processors. The ADSP-CM408F mixed-signal control processor is based on the ® ® Cortex -M4 processor core and is designed for motor control and industrial applications. -
Page 8: Purpose Of This Manual
Purpose of This Manual • Five probing headers • Samtec TSW-118-07-L-D • Ten GND headers • FCI 90726-402HLF For information about the hardware components of the product, refer to PWM 180-Pin Probing Board Bill Of Materials. Purpose of This Manual The PWM 180-Pin Probing Board Manual provides instructions for installing the product hardware (board). -
Page 9: Manual Contents
Preface For additional information on this Analog Devices processor, see the ADSP-CM40x Mixed-Signal Control Processor Hardware Reference. This document describes the ARM Cortex-M4 processor core and memory architecture used on the ADSP-CM40x processor, but does not provide detailed programming information for the ARM core. -
Page 10: Technical Support
Technical Support Technical Support You can reach Analog Devices processors and DSP technical support in the following ways: • Post your questions in the processors and DSP support community ® at EngineerZone http://ez.analog.com/community/dsp • Submit your questions to technical support directly at: http://www.analog.com/support... -
Page 11: Product Information
Preface Product Information Product information can be obtained from the Analog Devices Web site and the online help system. Analog Devices Web Site The Analog Devices Web site, , provides information www.analog.com about a broad range of products—analog integrated circuits, amplifiers, converters, and digital signal processors. -
Page 12: Engineerzone
Notation Conventions EngineerZone EngineerZone is a technical support forum from Analog Devices. It allows you direct access to ADI technical support engineers. You can search FAQs and technical information to get quick answers to your embedded processing and DSP design questions. - Page 13 Preface Example Description Note: For correct operation, ... A Note provides supplementary information on a related topic. In the online version of this book, the word Note appears instead of this symbol. Caution: Incorrect device operation may result if ... ...
- Page 14 Notation Conventions PWM 180-Pin Probing Board Manual...
-
Page 15: Using Pwm 180-Pin Probing Board
Using PWM 180-Pin Probing Board 1 USING PWM 180-PIN PROBING BOARD This chapter provides information about using the PWM 180-Pin Prob- ing Board. The following topics are covered. • Package Contents • PWM 180-Pin Probing Board Installation • Expansion Interface •... -
Page 16: Package Contents
• Hardware for securing the extender board onto the EK-KIT Lite Contact the vendor where you purchased your EZ-KIT Lite or contact Analog Devices, Inc. if any item is missing. PWM 180-Pin Probing Board Installation Follow these instructions to ensure correct operation of the product hardware. -
Page 17: Expansion Interface
There is also a 120-pin connector for Analog signals. The PWM 180-Pin Probing Board will not mate with the 120-pin connectors. Analog Devices does not support and is not responsible for the effects of additional circuitry. PWM 180-Pin Probing Board Manual... -
Page 18: Reference Design Information
Reference Design Information Reference Design Information A reference design info package is available for download on the Analog Devices Web site. The package provides information on the design, lay- out, fabrication, and assembly of the probing board. The information can be found at: http://www.analog.com/MCEI1-PWMProbingBoard PWM 180-Pin Probing Board Manual... -
Page 19: Pwm 180-Pin Probing Board Hardware Reference
2 PWM 180-PIN PROBING BOARD HARDWARE REFERENCE This chapter describes the hardware design of the PWM 180-Pin Probing Board. The following topics are covered. • System Architecture Describes the board’s configuration and explains how the board components interface with the processor. •... -
Page 20: Connectors
Connectors Connectors This section describes connector functionality and provides information about mating connectors. The connector locations are shown in Figure 2-1. Figure 2-1. Connector Locations PWM 180-Pin Probing Board Manual... -
Page 21: Connector (J1)
PWM 180-Pin Probing Board Hardware Reference Connector (J1) Part Description Manufacturer Part Number 180-pin high speed socket SAMTEC QSH-090-01-F-D-A Mating Connector 180-pin high speed header SAMTEC QTH-090-01-F-D-A Connector (P1) Part Description Manufacturer Part Number 180-pin high speed header SAMTEC QTH-090-01-F-D-A Mating Connector 180-pin high speed socket SAMTEC... - Page 22 Connectors PWM 180-Pin Probing Board Manual...
-
Page 23: Pwm 180-Pin Probing Board Bill Of Materials
A PWM 180-PIN PROBING BOARD BILL OF MATERIALS The bill of materials corresponds to PWM 180-Pin Probing Board Schematic. Ref. Qty Description Reference Manufacturer Part Number Designator IDC 2X1 IDC2X1 P7-P16 90726-402HLF 0.5MM 180PIN SAMTEC_ SAMTEC QSH-090-01-F-D-A QSH-090-F-D-A 0.5MM 180PIN SAMTEC_ SAMTEC QTH-090-01-F-D-A QTH-090-F-D-A... - Page 24 PWM 180-Pin Probing Board Manual...
- Page 25 PWM 180-PIN PROBING BOARD ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD Title PWM 180-PIN PROBING BOARD Title Size Board No. A0387-2012 Date Sheet 09/25/2012...
- Page 26 PIN_2 PIN_1 PIN_1 PIN_2 PIN_4 PIN_3 PIN_3 PIN_4 PIN_6 PIN_5 PIN_5 PIN_6 PIN_8 PIN_7 PIN_1 PIN_2 PIN_37 PIN_38 PIN_7 PIN_8 PIN_10 PIN_9 PIN_9 PIN_10 PIN_12 PIN_11 PIN_3 PIN_4 PIN_39 PIN_40 PIN_11 PIN_12 ADDRESS PIN_14 PIN_13 PIN_13 PIN_14 PIN_16 PIN_15 PIN_5 PIN_6 PIN_41 PIN_42...
- Page 27 INDEX architecture, of this probing board, notation conventions, bill of materials, P1 connector, board installation, P2-P6 connector, mechanical mating details, P7-P16 connector, board schematic, package contents, product overview, connector (J1), connectors, reference design information, diagram of locations, schematic of board, P2-P6, system architecture, of this probing board, P7-P16,...
- Page 28 Index PWM 180-Pin Probing Board Manual...
- Page 29 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. ADZS-180PWM-SAM...
