H-2034, H-2035
SHRINK TUNNEL
IMPORTANT! Read this manual thoroughly
and familiarize yourself with ALL controls and
operating features. Keep this manual for future
reference and maintenance.
Unpacking: Check the machine for damage.
If damage is found, return to Uline.
MACHINE SPECIFICATIONS
• Package Size Capabilities: Tunnel 16" x 8"
• Speed: Will vary with length of package.
• Power Supply:
220 volt, 10 amp mesh belt conveyor
• Overall Dimensions: 32"L x 27"W x 28"H
TUNNEL STANDARD FEATURES
• 2,100-Watt tunnel heating power
• 360-degree air circulation
MESH BELT CONVEYOR
• Teflon coated mesh belt
• Speed controlled tunnel conveyor. 0-60 FPM
WARRANTY
• Full 1-year warranty on parts.
PAGE 1 OF 5
SPECIFICATIONS
WARNING! Damage to the machinery can
be caused by (but not limited to): electrical
overload, mechanical overload, incorrect
power source, lifting and/or moving the
equipment improperly, and misuse of
assemblies. Any damage from the above
constitutes misuse and/or abuse and we will not
be covered by the manufacturer's warranty.
This manual contains multiple precautionary
notes indicated with the word "CAUTION" and/
or "WARNING". Such notes are used to describe
functions that can cause bodily injury and/or
damage to the machine. Notes marked with
"WARNING" indicate a condition that can cause
harm to a person. Notes marked with "CAUTION"
indicate conditions which can cause damage
to the machine.
It is the employer's responsibility to ensure all
personnel associated with the operation of
this machine are adequately trained in the
operation, safety precautions and potential
hazards of this machinery.
1013 IH-2034

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-2034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-2034

Summary of Contents for U-Line H-2034

  • Page 1 H-2034, H-2035 SHRINK TUNNEL SPECIFICATIONS IMPORTANT! Read this manual thoroughly WARNING! Damage to the machinery can and familiarize yourself with ALL controls and be caused by (but not limited to): electrical operating features. Keep this manual for future overload, mechanical overload, incorrect reference and maintenance.

  • Page 2: Machine Startup

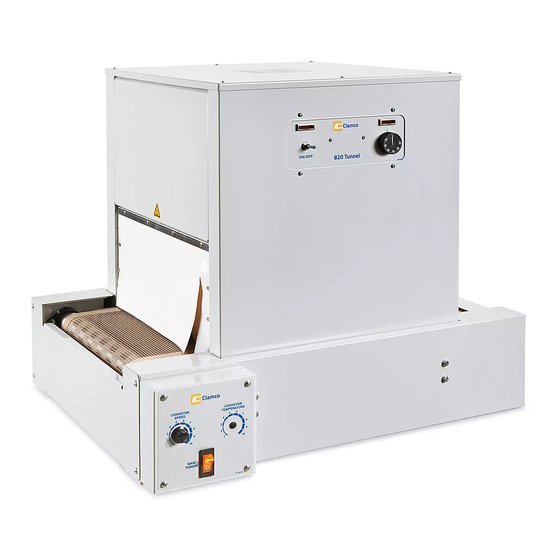

    Figure 2 POWER LIGHT HEAT INDICATOR LIGHT H-2034 Shrink Tunnel consists of a tunnel and a conveyor. The conveyor is a teflon coated mesh belt. The mesh belt allows the heated air to shrink the bottom of the package from the tunnel.

  • Page 3: Machine Components

    MACHINE COMPONENTS MAIN FRAME ASSEMBLY ELECTRICAL PANEL ASSEMBLY The main frame assembly of this machine consists of 1. This assembly is located under the drive roller. Only the rails, conveyor drive motor, and the operator panel. a qualified technician should access this assembly. TUNNEL CONVEYOR ASSEMBLY MESH BELT WARNING! Do not tamper with electrical wiring unless licensed or trained to do so.

  • Page 4: Setup Instructions

    OPTIONAL LEG KIT INSTALLATION AND SET UP CAUTION! Assembling the leg kit to the 3. Screw feet into threaded holes provided on bottom conveyor can be dangerous. Two people or of the shelf. Insert casters into nylon insert next to feet.

  • Page 5: Troubleshooting

    TROUBLESHOOTING The following guidelines are intended to ease the solu- The cause/solution statements are generally arranged tion of potential problems that may be encountered in order of most probable, easiest solution first on up to during the everyday operations of the machine. more involved, difficult solutions.
