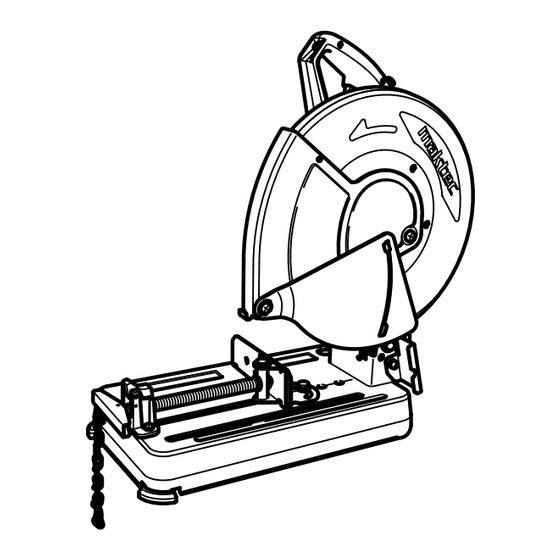

- Page 1 INSTRUCTION MANUAL Portable Cut-Off MT240 003979 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MT240 Wheel diameter 355 mm Hole diameter 25.4 mm No load speed (min 3,800 Dimensions (L x W x H) 500 mm x 280 mm x 620 mm Net weight European countries : 17.8 kg Other than European countries : 15.4 kg... - Page 3 Do not force small tools or attachments to do the Portable Cut-Off job of a heavy duty tool. Do not use tools for Model No./ Type: MT240 purposes not intended; for example, do not use are of series production and circular saws to cut tree limbs or logs.
-
Page 4: Additional Safety Rules For Tool
18. Use outdoor extension leads. 10. Make sure the wheel is not contacting the When tool is used outdoors, use only extension work-piece before the switch is turned on. cords intended for outdoor use. Before using the tool on an actual workpiece, 19. -
Page 5: Functional Description
The stopper plate prevents the cut-off wheel from FUNCTIONAL DESCRIPTION contacting the workbench or floor. When a new wheel is installed, set the stopper plate to position (A). When the wheel wears down to the extent that the lower portion of CAUTION: the workpiece is left uncut, set the stopper plate to Always be sure that the tool is switched off and... -
Page 6: Securing Workpiece
To change the cutting angle, follow the procedure below: CAUTION: Loosen the two hex bolts. Be sure to tighten the hex bolt securely. Insufficient • Set the guide plate to the desired angle (0° - 45°). tightening of the hex bolt may result in severe injury. For more accurate angle, use a protractor or Use the socket wrench provided to help assure triangle ruler. -
Page 7: Cutting Capacity
wheel wear, as well as, possible damage to the tool, 1. Guide plate cut-off wheel or workpiece may result. 2. Straight piece of Cutting capacity wood (Spacer) Max. cutting capacity varies depending upon the cutting 3. Over 85mm long angle and workpiece shape. Applicable wheel diameter: 355 mm Workpiece shape... -
Page 8: Maintenance
MAINTENANCE CAUTION: Always be sure that the tool is switched off and • unplugged before attempting to perform inspection or maintenance. Never use gasoline, benzine, thinner, alcohol or the • like. Discoloration, deformation or cracks may result. Replacing carbon brushes 1. - Page 12 Makita Corporation Anjo, Aichi, Japan www.makita.com 884491F227...
