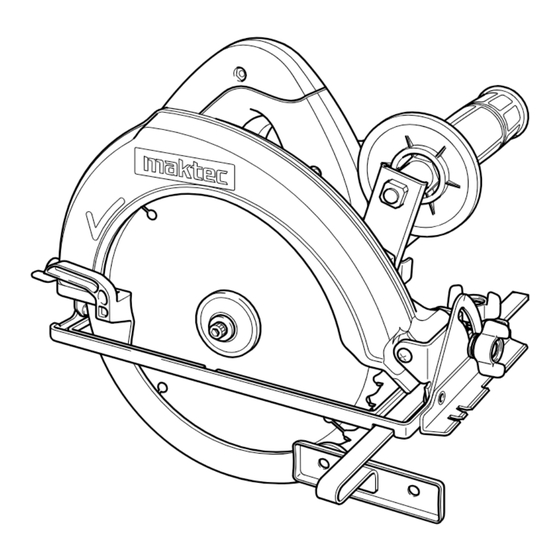

Circular Saw

MODEL MT581
I N S T R U C T I O N
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
DOUBLE
INSULATION
M A N U A L
005337

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mt581 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maktec mt581

Summary of Contents for Maktec mt581

  • Page 1: Circular Saw

    Circular Saw MODEL MT581 005337 DOUBLE INSULATION I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Specifications

    SPECIFICATIONS Model MT581 Blade diameter 185 mm at 90° 64 mm Max. cutting depth at 45° 42 mm 4,700 No load speed (min Overall length 299 mm Net weight 3.4 kg Safety class • Due to our continuing programme of research and development, the specifications herein are subject to change without notice.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES ENA100-1 WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

  • Page 4: Additional Safety Rules For Tool

    21. Keep cutting tools sharp and clean. Properly power tool for operations different from those maintained cutting tools with sharp cutting edges intended could result in a hazardous situation. Service are less likely to bind and are easier to control. 22.
  • Page 5 be released. For all other sawing, the lower guard down. DON’T TRY TO HOLD SHORT PIECES BY should operate automatically. HAND! (Fig. 6) 12. Adjustments. Before cutting be sure depth and bevel adjust- ments are tight. 13. Use Only Correct Blades In Mounting. Don’t use blades with incorrect size holes.

  • Page 6: Functional Description

    FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Adjusting depth of cut 004027 CAUTION: • After adjusting the depth of cut, always tighten the clamping screw securely.
  • Page 7 For tool without lock button To start the tool, simply pull the switch trigger. Release the switch trigger to stop. ASSEMBLY CAUTION: • Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. Removing or installing saw blade 004031 CAUTION:...

  • Page 8: Operation

    Side grip (auxiliary handle) (Accessory) 004034 Align the hole in the grip holder with the hole in the blade case (upper blade guard) and secure the grip holder onto the blade case using the screw as shown in the figure. Securely screw the side grip clockwise into the hole in the grip holder.

  • Page 9: Maintenance

    MAINTENANCE CAUTION: • Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance. Replacing carbon brushes 001145 Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders.
  • Page 10 Memo...
  • Page 11 Memo...
  • Page 12 Makita Corporation 884537A3...
