netvox R313W User Manual

Wireless water leak sensor
Hide thumbs Also See for R313W:

Advertisement

Table of Contents

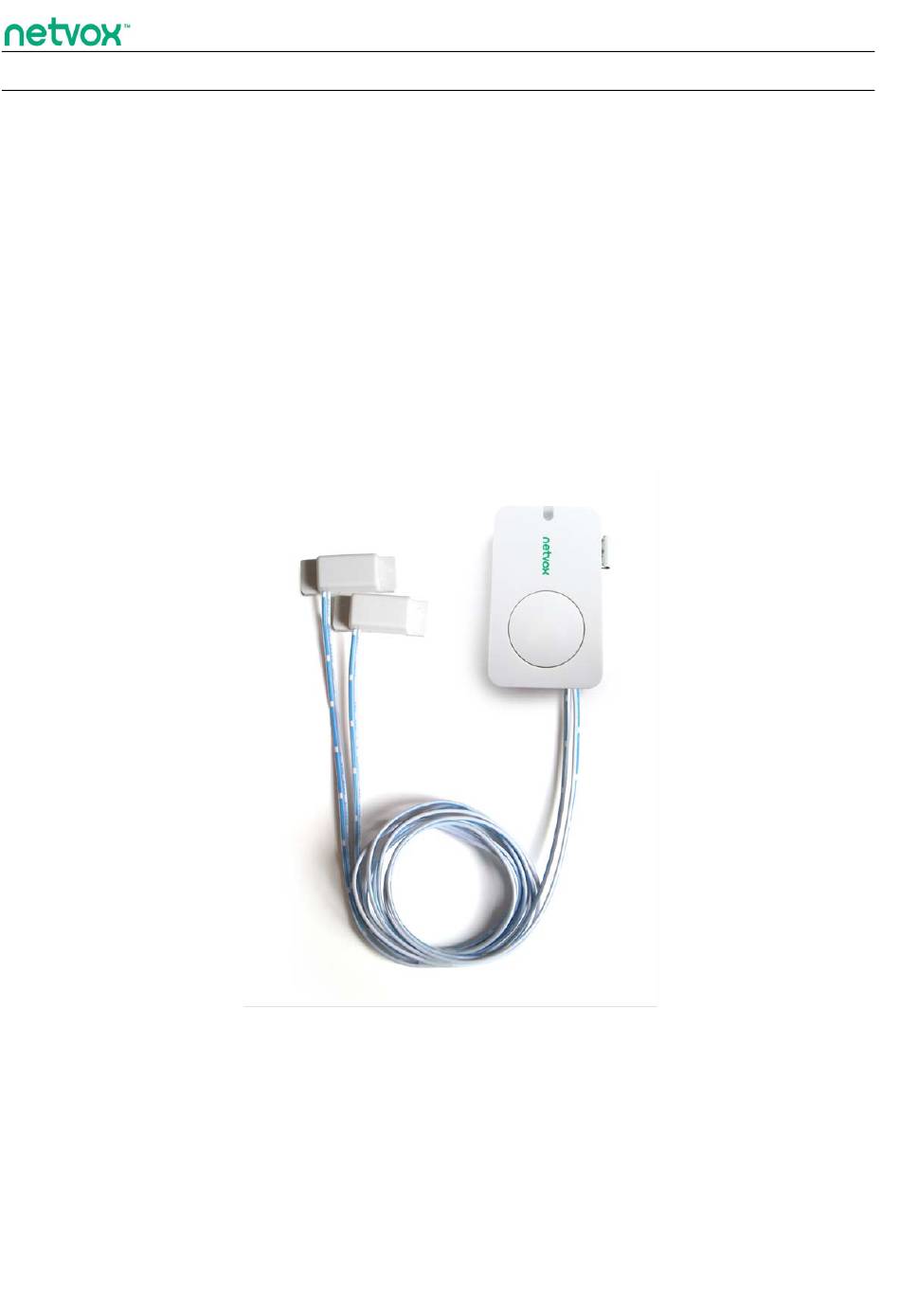

R313W
Model：
Wireless Water Leak Sensor
Wireless Water Leak Sensor
R313W
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology and is issued in strict
confidential and shall not be disclosed to others parties in whole or in parts without written permission of NETVOX Technology.
The specifications are subjected to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R313W and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R313W

Summary of Contents for netvox R313W

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology and is issued in strict confidential and shall not be disclosed to others parties in whole or in parts without written permission of NETVOX Technology. The specifications are subjected to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ................................2 2. Appearance ................................2 3. Main Features ................................3 4. Set up Instruction ..............................3 5. Data Report ................................4 6. Installation ................................8 7. Important Maintenance Instruction ......................... 9...

  • Page 3: Introduction

    1. Introduction Netvox water leak sensor R313W is a LoRaWAN device compatible with LoRaWAN protocol (ClassA). When the R313W sensor detects a leak, it will send an alarm message to the gateway. When the sensor detects no leaks, it will send a message that shows no leak to the gateway.

  • Page 4: Main Features

    3. Main Features  Compatible with LoRaWAN  2 sections of 3V CR2450 button battery power supply  Detectable voltage and water leak status  Simple operation and setting  Protection level IP30  Compatible with LoRaWAN Class A  Frequency hopping spread spectrum technology ...

  • Page 5: Data Report

    Minimum time: 3600s Battery: 0x01 (0.1V) R313W sensor is triggered: When the R313W status changes, it will send warning report. No water leak:0 Water leak:1 Note: The reported data is decoded by the Netvox LoRaWAN Application Command document and http://www.netvox.com.cn:8888/page/index...
  • Page 6 ReportReq (9Bytes,Fixed 0x00) Reserved ReadConfig MinTime MaxTime BatteryChange 0x82 (4Bytes,Fixed ReportRsp (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) 0x00) （1）Configure R313W device parameters: MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v Downlink： 0106003C003C0100000000 003C(H = 60(D Device returns： 8106000000000000000000（Configuration success） 8106010000000000000000（Configuration failed）...
  • Page 7 （2）Read R313W device parameters: Downlink： 0206000000000000000000 Device returns： 8206003C003C0100000000（Current configuration） Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V Max Time Max Time leeping (Min Time) leeping (Min Time) Wakes up and Wakes up and...
  • Page 8 Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Wakes up and collects data Users push the button, 2.7V |2.7-2.8|=0.1 REPORTS 2.7V. Wakes up and REPORTS 2.7V Recalculate MaxTime. collects data 2.7V sleeping sleeping Does not report 1H 10...

  • Page 9: Installation

    (2) T 1. Remove the 3M glue on the back of the magnet body The figure shows that the water immersion sensor (R313W) is and attach the body to the door frame (please do not stick used in bathing rooms where there is a possibility of water it on the rough door to avoid falling off after using the leakage in the pipeline.

  • Page 10: Important Maintenance Instruction

    (2) The battery installation method is shown in the figure below (battery with "+" facing outward). Note: To install the battery, use a screwdriver or similar tool to assist in opening the battery cover. 7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: •...
