netvox R311A User Manual

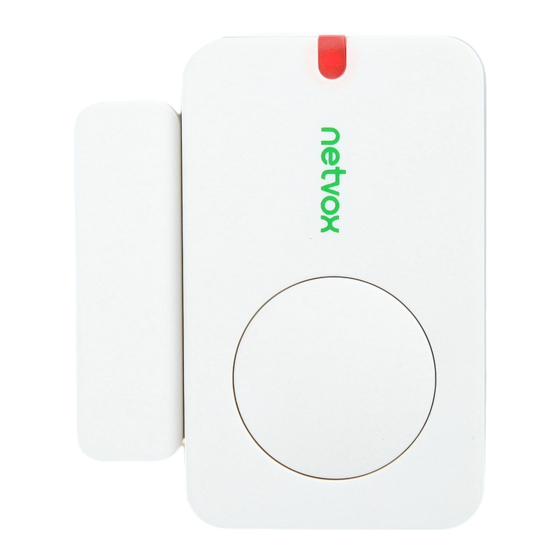

Wireless window door sensor
Hide thumbs Also See for R311A:
Table of Contents

Advertisement

Quick Links

Download this manual
R311A
Model：
Wireless Window Door Sensor
Window/Door Sensor
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R311A and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R311A

Summary of Contents for netvox R311A

  • Page 1 R311A Model： Wireless Window Door Sensor Window/Door Sensor User Manual...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction................................2 2. Appearance................................. 3 3. Main Features................................3 4.Set up Instruction.................................4 4.1 Power on and Turn on / off..........................4 4.2 Join Into Lora Network............................ 4 4.3 Function Key..............................4 4.4 Data Report...............................4 5. Restore to Factory Setting............................5 6.

  • Page 3: Introduction

    1. Introduction R311A is a long-distance window/door sensor based on the LoRaWAN open protocol (Class A). LoRa Wireless Technology: LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.

  • Page 4: Appearance

    2. Appearance Indicator Magnet Base Function Key Function Key 3. Main Features  Compatible with LoRaWAN  2 section 3V CR2450 button battery powered  Report voltage status, window/door status  Easy set up and installation...

  • Page 5: Set Up Instruction

    The network operation is as following: (1) If R311A had never joined any network or at factory setting mode, turn on the device; it will search an available LoRa network to join. The green indicator will stay on for 5 seconds to show it joins into the network, otherwise, the green indicator does not work.

  • Page 6: Restore To Factory Setting

    (B) When it is not in the network → R311A will enter sleeping mode and wake up every 15 seconds to search a network to join in the first two minutes. After two minutes, it will wake up every 15 minutes to request to join the network.

  • Page 7: Low Voltage Alarming

    7. Low Voltage Alarming The operating voltage threshold is 2.4V. If the voltage is lower than 2.4V, R311A will send a low-power report to the Lora network. 8. MyDevices Dashboard Interface Demonstration 9.

  • Page 8: Important Maintenance Instruction

    Note: To install the battery, use a screwdriver or similar tool to assist in opening the battery cover. 10. Important Maintenance Instruction The OEM integrator has to be aware of not to providing information to end users regarding how to install or remove this RF module in the user manual of the end product.The user manual which is provided by OEM integrators for end users must Include the following information in a prominent location.
