R315 Series

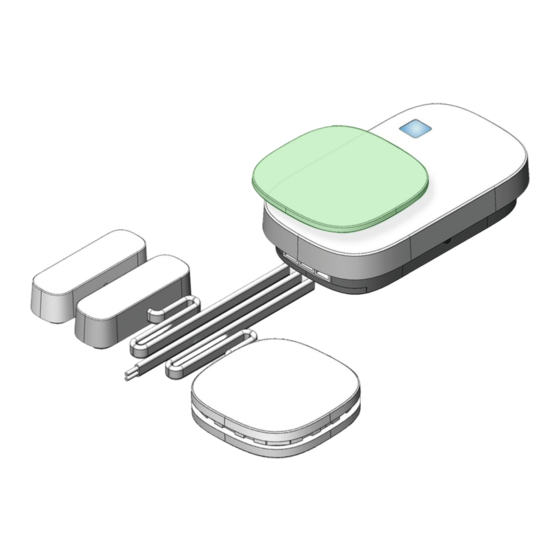

Wireless Multi-Sensor Device
Wireless Multi-Sensor Device
R315 Series
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict
confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The
specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R315 Series and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R315 Series

Summary of Contents for netvox R315 Series

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ..................................2 2. Features ....................................2 3. Appearance ..................................3 4. R315 8 in 1 Combination List ............................4 5. R315 Sensor Function ............................... 5 5.1 Internal Sensors ................................5 5.2 External Sensors ................................. 7 6.

  • Page 3: Introduction

    1. Introduction R315 series is a multi-sensor device of Netvox's Class A type device based on LoRaWAN open protocol. It can be connected with temperature and humidity, illuminance, door magnetism, internal vibration, external vibration, infrared detection, emergency button, tilt detection, water leakage detection, glass break, seat occupancy detection, dry contact in, DO out related functions (up to 8 types of sensors can be compatible at the same time), and compatible with LoRaWAN protocol.

  • Page 4: Appearance

    3. Appearance R31523 Internal Sensors External Sensors Tilt Temperature & Humidity Vibration Light Reed switch Glass break Water leak Light Sensor Reed Switch Water Leak Glass Break R31538 Internal Sensors External Sensors Tilt Temperature & Humidity Vibration Reed switch Emergency button Dry contact IN Digital OUT Emergency button...

  • Page 5: R315 8 In 1 Combination List

    4. R315 8 in 1 Combination List Internal Sensors External Sensors Reed Reed Reed Vibration Emergency Water Digital Vibration Glass Water Switch Glass Model TH Light Switch Tilt Switch contact Seat (internal) button Leak (external) break Leak*2 (external)* break*2 (internal) (external) ●...

  • Page 6: R315 Sensor Function

    5. R315 Sensor Function 5.1 Internal Sensors Internal Vibration Sensor Temperature & Humidity ⚫ Detect ambient temperature and humidity ⚫ Detect the vibration state of the current device body. Vibration: report 1 Unit: 0.01℃ or 0.01% Still: report 0 ⚫ Adjust sensitivity: Range: 0 to 10;...
  • Page 7 Default: IRDetectionTime: 5 minutes Note: IRDetectionTime: the total process of PIR detection; IRDisableTime: a short segment in IRDetectionTime IRDisableTime: 30 seconds When the PIR sensor is not triggered, … IRDetectionTime: 5minutes … IRDisableTime: 30s a. The PIR sensor stays off in 70% of the IRDisableTime and starts detecting at the last 30% of time. Note: To save energy, the IRDisableTime is divided into 2 parts: the first 70% (21 seconds) and the rest 30% (9 seconds).

  • Page 8: External Sensors

    5.2 External Sensors Light Sensor Emergency Button ⚫ Detect ambient illuminance ⚫ Press the emergency button to report the alarm status. Range: 0 – 3000Lux; unit: 1Lux No alarm: report 0 Alarm: report 1 ⚫ Configurable press duration Glass Break Sensor Reed Switch No broken glass detected: report 0 ⚫...
  • Page 9 Water Leak Sensor External Vibration Sensor ⚫ Detect vibration of external sensor Water detected: report 1 Vibration detected: report 1 No water detected: report 0 Still: report 0 ⚫ Adjust sensitivity: Range: 0 to 255; Default: 20 (a) The lower the sensitivity value is, the more sensitive the sensor is. (b) Restore function could be set through configuration.

  • Page 10: Set Up Instruction

    6. Set up Instruction On/Off Power on Insert batteries. Short press the function key and the green indicator flashes once. Turn on Step1. Press the function key for more than 8 seconds, and the green indicator light will flash continuously. Turn off Step 2.

  • Page 11: Data Repot

    Disabletime: 0x001E (30s) DectionTime: 0x012C (300s) AlarmONTime: 0x0F (15s) // Buzzer DryContactPointOutType: Normally Open Note: 1. The interval between two reports must be the minimum time. 2. The reported data is decoded by the Netvox LoRaWAN Application Command document and http://www.netvox.com.cn:8888/cmddoc.

  • Page 12: Example Of Reportdatacmd

    Data report configuration and sending period are as follows: Min Interval Max Interval Current Change≥ Current Change＜ Reportable Change Reportable Change Reportable Change (Unit: second) (Unit: second) Any number between Any number between Report Report Cannot be 0 1 to 65535 1to 65535 per Min Interval per Max Interval...
  • Page 13 Don’t Support this field) Note: R315 series would report 2 packets (DeviceType 0x11 and 0x12) when the light sensor and TH sensor are on. The interval of two packets would be 10 seconds. Only one ppacket (DeviceType 0x11) would be reported as the light sensor and TH sensor are off.
  • Page 14 Example of Uplink1: 01D2111C01815700550000 byte (01): Version byte (D2): DeviceType – R315 byte (11): ReportType byte (1C): Battery–2.8V, 1C (HEX) = 28 (DEC), 28* 0.1v = 2.8v – 7 byte (018157): FunctionEnableBits, 0x018157 = 0001 1000 0001 0101 0111 (BIN) //Bit 0, 1, 2, 4, 6, 8, 15, 16 =1 (enable) Bit0: Temperature and Humidity Sensor Bit1: Light Sensor Bit2: PIR Sensor...

  • Page 15: Example Of Configurecmd

    7.2 Example of ConfigureCmd FPort: 0x07 Bytes Var(Fix =9 Bytes) CmdID DeviceType NetvoxPayLoadData CmdID– 1 byte DeviceType– 1 byte – Device Type of Device NetvoxPayLoadData– var bytes (Max=9bytes) Device NetvoxPayLoadData Type Illuminance MinTime MaxTime BatteryChange TemperatureChange HumidityChange change 0x01 (1byte (2byte (1byte ConfigReportReq...
  • Page 16 SetShockSensorSe Status 0x85 Reserved (8Bytes,Fixed 0x00) nsitivityRsp (0x00_success) GetShockSensorSe 0x06 Reserved (9Bytes,Fixed 0x00) nsitivityReq InternalShockSensorSen ExternalShockSensorS sitivity ensitivity GetShockSensorSe 0x86 Reserved (7Bytes,Fixed 0x00) nsitivityRsp (1Byte,0xFF represent (1Byte,0xFF represent disable ShockSensor) disable ShockSensor) SensorType SetIRDisableTIme IRDisableTime IRDectionTime Reserved 0x07 (1Byte,0x00_PIRSensor (2bytes Unit:s) (2bytes Unit:s) (4Bytes,Fixed 0x00) , 0x01_SeatSensor)
  • Page 17 DryContactPointOutType GetDryContactPoi (1Byte, 0x8C Reserved (7Bytes,Fixed 0x00) ntOutTypeRsp 0x00_Normally Open 0x01_Normally Close) RestoreReportSet(1byte) SetRestoreReportR 0x00_DO NOT report when sensor restore 0x0D Reserved (8Bytes,Fixed 0x00) 0x01_DO report when sensor restore SetRestoreReportR 0x8D Status(0x00_success) Reserved (8Bytes,Fixed 0x00) GetRestoreReport 0x0E Reserved (9Bytes,Fixed 0x00) RestoreReportSet(1byte) GetRestoreReport 0x00_DO NOT report when sensor restore...

  • Page 18: Example Of Resendtimecmd

    7.3 Example of ResendtimeCmd (for resending time of reed switch and tilt sensor) FPort: 0x07 Device Description Device NetvoxPayLoadData Type Resendtime (1Byte,Unit:1s,range:3-254s), Reserved SetLastMessageRes 0x1F when 0 or 255 no resend,default is no resend (8Bytes,Fixed 0x00) endtimeReq SetLastMessageRes 0x9F Status(0x00_success) Reserved (8Bytes,Fixed 0x00) only used in endtimeRsp...

  • Page 19: Example Of Configbuttonpresstime (Emergencebutton)

    7.4 Example of ConfigButtonPressTime (EmergenceButton) FPort：0x0D Description CmdID PayLoad (Fix byte,1byte) PressTime(1bytes) 0x00_QuickPush_Less then 1 Second OtherValue present the presstime such as 0x01_1 Second push SetButtonPressTimeReq 0x01 0x02_2 Seconds push 0x03_3 Seconds push 0x04_4 Seconds push 0x05_5 Seconds push 0x06_6 Seconds push, and so on SetButtonPressTimeRsp 0x81 Status(0x00_Success 0x01_Failure)

  • Page 20: Configdrycontactintriggertime (Bi-Direction)

    7.5 ConfigDryContactINTriggerTime (Bi-Direction) FPort：0x0F Description CmdID PayLoad(Fix byte,2byte) MinTriggeTime(2bytes) SetDryContactINTriggerTimeReq 0x01 (Unit:1ms,Default 50ms) Status(0x00_Success SetDryContactINTriggerTimeRsp 0x81 Reserved (1Byte,Fixed 0x00) 0x01_Failure) GetDryContactINTriggerTimeReq 0x02 Reserved (2Byte,Fixed 0x00) MinTriggeTime (2bytes) GetDryContactINTriggerTimeRsp 0x82 (Unit:1ms,Default 50ms) Default: MinTriggerTime = 50ms 1. Configure device parameters MinTriggeTime = 100ms Downlink: 010064 Response: 810000 (configuration success) 810100 (configuration fail)

  • Page 21: Set/Getsensoralarmthresholdcmd

    7.6 Set/GetSensorAlarmThresholdCmd Fport:0x10 CmdID Payload(10Bytes) Descriptor (1Byte) SensorType (1Byte, SensorHighThreshold SensorLowThreshold Channel(1Byte, 0x00_Disable ALL (4Bytes,Unit:same as (4Bytes,Unit:same as 0x00_Channel1, SetSensorAlarmThr SensorthresholdSet 0x01 reportdata in fport6, reportdata in fport6, esholdReq 0x01_Channel2, 0x01_Temperature, 0Xffffffff_DISALBLEr 0Xffffffff_DISALBLEr 0x02_Channel3,etc) HighThreshold) HighThreshold) 0x02_Humidity, 0x05_illuminance,) SetSensorAlarmThr 0x81 Status(0x00_success) Reserved (9Bytes,Fixed 0x00) esholdRsp...
  • Page 22 1. Configure device parameters SensorHighThreshold = 40℃ (0FA0), SensorLowThreshold = 10℃ (03E8) Downlink: 01000100000FA0000003E8 Response: 8100000000000000000000 (configuration success) 2. Read configuration Downlink: 0200010000000000000000 Response: 82000100000FA0000003E8 (device current parameter) 3. Configure detection parameters ThresholdAlarmCheckCn = 3 Downlink: 0303000000000000000000 Response: 8300000000000000000000 4. Read configuration Downlink: 0400000000000000000000 Response: 8403000000000000000000...

  • Page 23: Netvoxlorawanrejoin

    7.7 NetvoxLoRaWANRejoin (Note: check if the device is still in the network. If the device is disconnected, it will automatically rejoin back to the network.) Fport: 0x20 CmdDescriptor CmdID(1Byte) Payload(5Bytes) RejoinCheckPeriod (4Bytes,Unit:1s SetNetvoxLoRaWANRejoinReq 0x01 RejoinThreshold(1Byte) 0XFFFFFFFF Disable NetvoxLoRaWANRejoinFunction) SetNetvoxLoRaWANRejoinRsp 0x81 Status(1Byte,0x00_success) Reserved (4Bytes,Fixed 0x00) GetNetvoxLoRaWANRejoinReq...

  • Page 24: Example For Mintime/Maxtime Logic

    7.8 Example for MinTime/MaxTime logic Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V MaxTime MaxTime sleeping (MinTime) sleeping (MinTime) Wakes up and collect data Wake up and collect data Wakes up and collect data REPORTS 2.7V REPORTS 2.5V REPORTS 2.8V...
  • Page 25 Notes: (1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect data. (2) The data collected is compared with the last data reported. If the data change value is greater than the ReportableChange value, the device reports according to MinTime interval.

  • Page 26: Important Maintenance Instruction

    8. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
