Commax DRC-40KR2 User Manual

Commax DRC-40KR2 User Manual

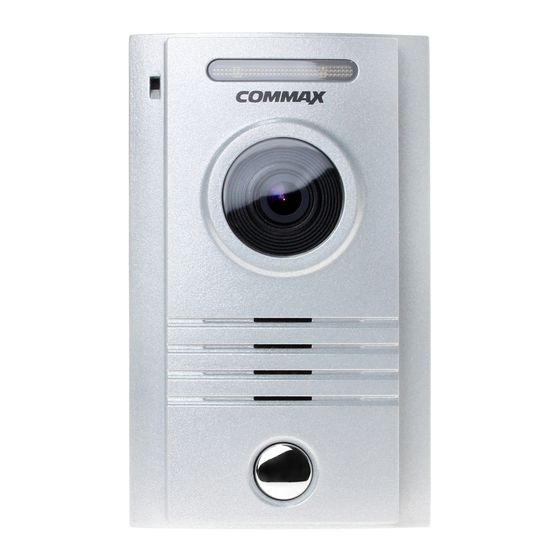

Color door camera

Advertisement

User Manual
Color Door Camera DRC-40KR2
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRC-40KR2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Commax DRC-40KR2

  • Page 1 User Manual Color Door Camera DRC-40KR2 • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
  • Page 2 6. Specification Model No. DRC-40KR2 Rated Voltage / Power Consumption DC 12V (Supplied from monitor) 4 wires to a monitor (polarity) Wiring (Main Unit / Door Release) 2 wires to the DOOR1 release (non-polarity) 3 wires to the 2nd DOOR release...
  • Page 3: Table Of Contents

    www.safemag.ru Contents 1. Introdution ................2 2. Important Safeguard............3 3. Overview ................4 4. Package contents...............6 5. Wiring and Installation ............7 6. Specification ..............9 www.safemag.ru...
  • Page 4: Introdution

    The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No.
  • Page 5: Important Safeguard

    www.safemag.ru 2. Important Safeguards ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spilled or objects have fallen into the unit ⓒ...
  • Page 6: Overview

    www.safemag.ru 3. Overview www.safemag.ru...
  • Page 7 www.safemag.ru ① White LED & Illumination Sensor : Offer clear image at night ② Microphone : Deliver voice signal from a visitor ③ Camera Lens : Transfer image * Make sure the lens is always kept clean ④ Speaker : Deliver voice signal to a visitor ⑤...
  • Page 8: Package Contents

    4. Package contents (DRC-40KR2) www.safemag.ru...
  • Page 9: Wiring And Installation

    www.safemag.ru 5. Wiring and Installation 1. Match the fix the whole in the wall and the fixing bracket [FIG.1] 2. Match and connect monitor line as shown below [FIG.2] (#1: Audio, #2: GND, #3: DC12V, #4: Video) 3. Adjust camera location on the wall by checking the image on monitor screen and fix its location 4.
  • Page 10 www.safemag.ru ▶ Position of camera ▶ Installation place • Do not install the product where direct lays of the sun reach the camera lens. • Adjust the position by using the angle adjustor (in the back). • Install a separate lighting at night for better picture quality. ▶...
  • Page 11: Specification

    513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com PM1040KR2010 Printed In Korea / 2014.03.105 www.safemag.ru...
