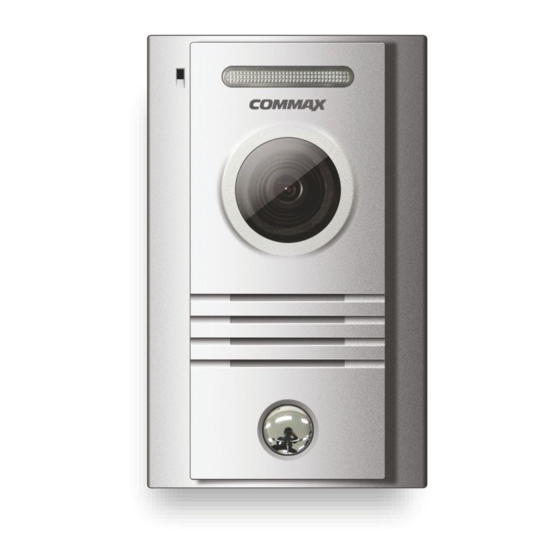

Color door camera

Advertisement

Quick Links

User Manual
Color Door Camera DRC-40K
https://aros.kz
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRC-40KHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Commax DRC-40KHD

  • Page 1 User Manual Color Door Camera DRC-40K https://aros.kz • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
  • Page 2 1. Overview 2. Wiring and Installation 1. Match the fix the whole in the wall and the fixing LED & Sensor fixing bracket [FIG.1] Microphone 2. Match and connect monitor line as shown below [FIG.2] (#1: Audio, #2: GND, #3: DC12V, #4: Video) Camera Lens 3.
  • Page 3 3. Package contents 4. Specification Model No. DRC-40K Power Consumption DC 12V (Supplied from monitor) 4 wires to a monitor (polarity) Wiring ( Main Unit / Door Release) 2 wires to the door release (non-polarity) Sensor Type CMOS IMAGE SENSOR NTSC or PAL STANDARD.
