Using the TRMMIM Hub View
Configuring Station Name, Location, or Priority
To assign a new station Name, Location, or Priority:
1. Highlight the text in the Name, Location, or Priority box and type in the new
2. Press Return on the keyboard to save your change.

Checking Ring Port Status

You can check the status for any ring port on a manageable module inserted into
the MMAC hub.
To open the Ring Port Status window:
1. Click mouse button 3 in the ring Port Status box to display the Ring Port
2. Drag down to Status and release. The Ring Port Status window,
Port Name
This text field can help identify the ring interface; the information entered here is
not displayed anywhere else in the Hub View.
2-20
value(s).
menu.
will appear.

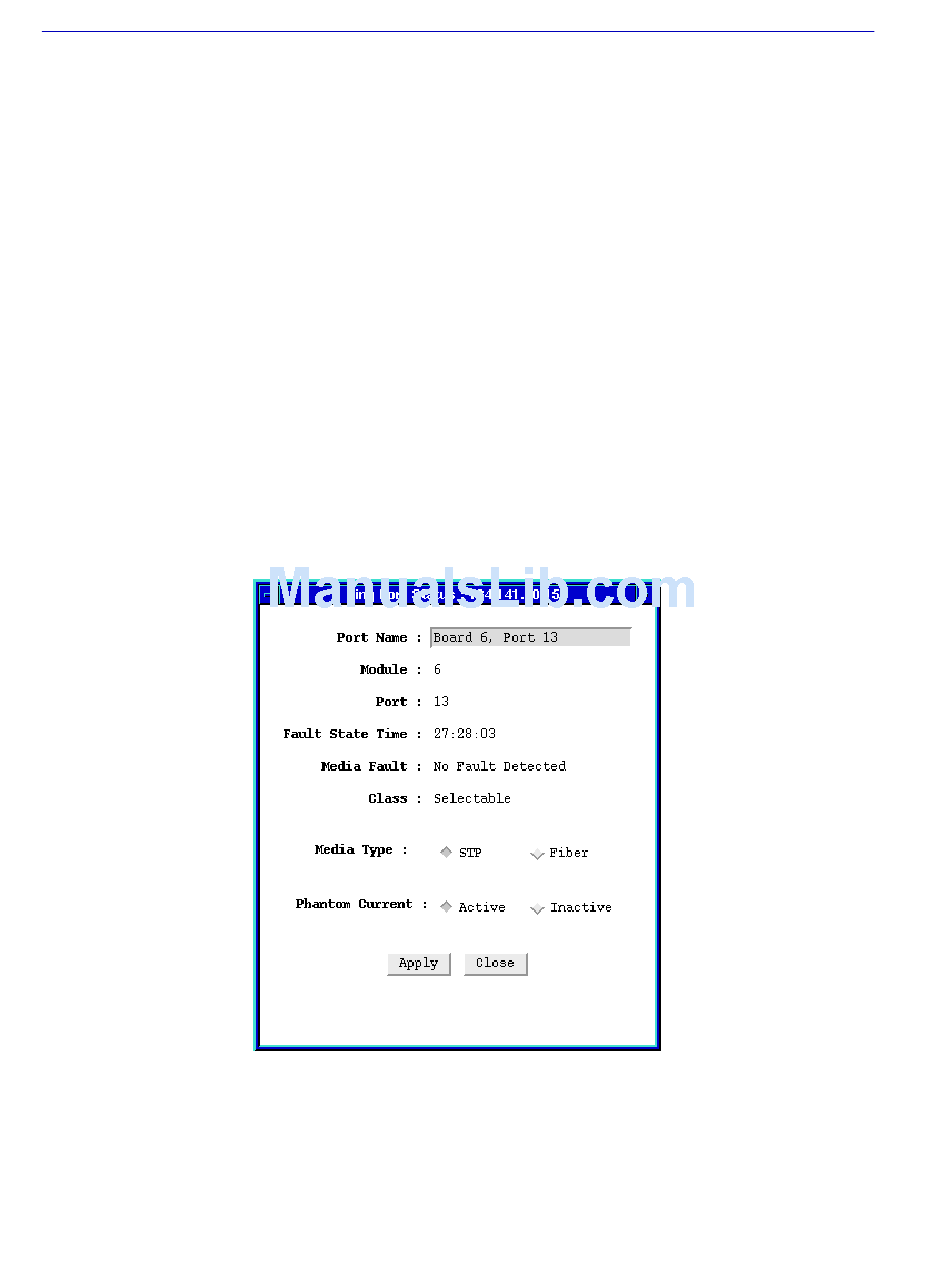

Figure 2-10. The Ring Port Status Window
Figure
Monitoring Hub Performance
2-10,
