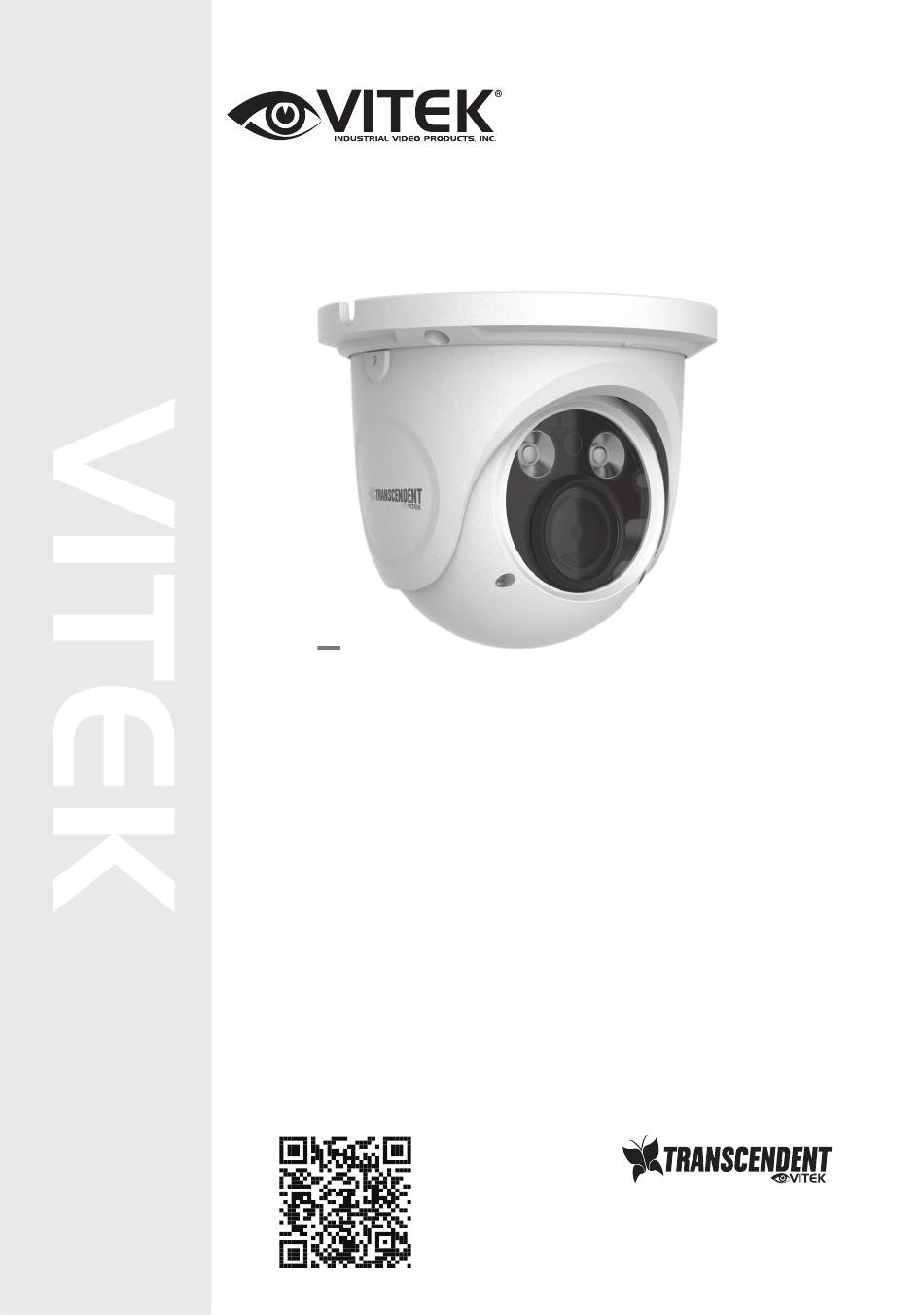

QUICK START GUIDE
FEATURES
FEATURES
• 1/3" 3.0 Megapixel CMOS Image Sensor
• Up to 30fps live view @ 3 MegaPixel (2048x1536)
• 2.8~12mm Varifocal Lens
• 2 High Power Infrared LED's with 100' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• On Board Motion Detection, Privacy Masking, and ROI
• H.264 & MJPEG Compression
• Remote Viewing via CMS, Internet Explorer, and iOS &
Android Apps
• ONVIF Compliant
• IP66 Weather Resistance
• Optional Junction Box Mount (VT-TJB01) & Wall Mount
(VT-TWM03) Available
• Available in Ivory or Charcoal Gray
• 12VDC & PoE (Power over Ethernet) Operation

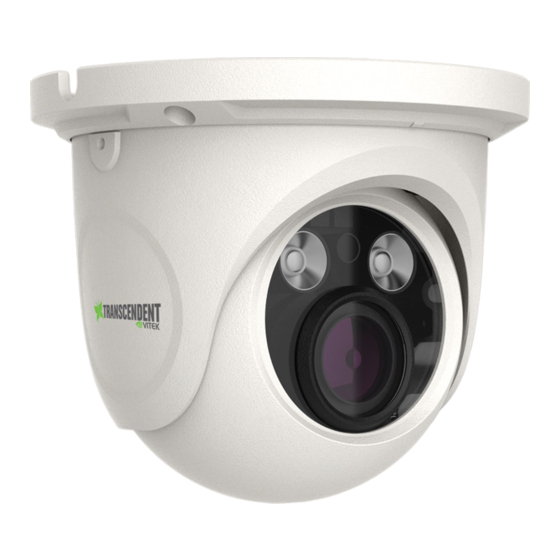

VTC-TNT3RVE
Megapixel Indoor/Outdoor WDR
IP Turret Camera with 2 High
Power IR LED Illumination &
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series 3
Varifocal Lens
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent 3 Series
Summary of Contents for Vitek Transcendent 3 Series
- Page 1 VTC-TNT3RVE Transcendent Series 3 Megapixel Indoor/Outdoor WDR IP Turret Camera with 2 High Power IR LED Illumination & Varifocal Lens QUICK START GUIDE FEATURES FEATURES • 1/3” 3.0 Megapixel CMOS Image Sensor • Up to 30fps live view @ 3 MegaPixel (2048x1536) •...
- Page 2 Components and Accessories Camera Drill Template Quick Guide Product Manual CD Screws Waterproof Cap Hex Wrench Overview Lens Lock Screws RJ-45 Ethernet Focus Zoom Power Cable...
- Page 3 Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. 12VDC Optional 12VDC Power Connection.
- Page 4 Installation Before start, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the...
- Page 5 Installation 4. Tighten the lock screws to secure the viewing angle adjustments. 5. Adjust the Focus and Zoom screws to achieve a clear image (if your camera has a fixed lens, please skip this step). 6. Carefully remove the protective film from the lens to complete the installation.
- Page 6 LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template Accessing the Camera Using the IP-Tool...
- Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
- Page 8 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
