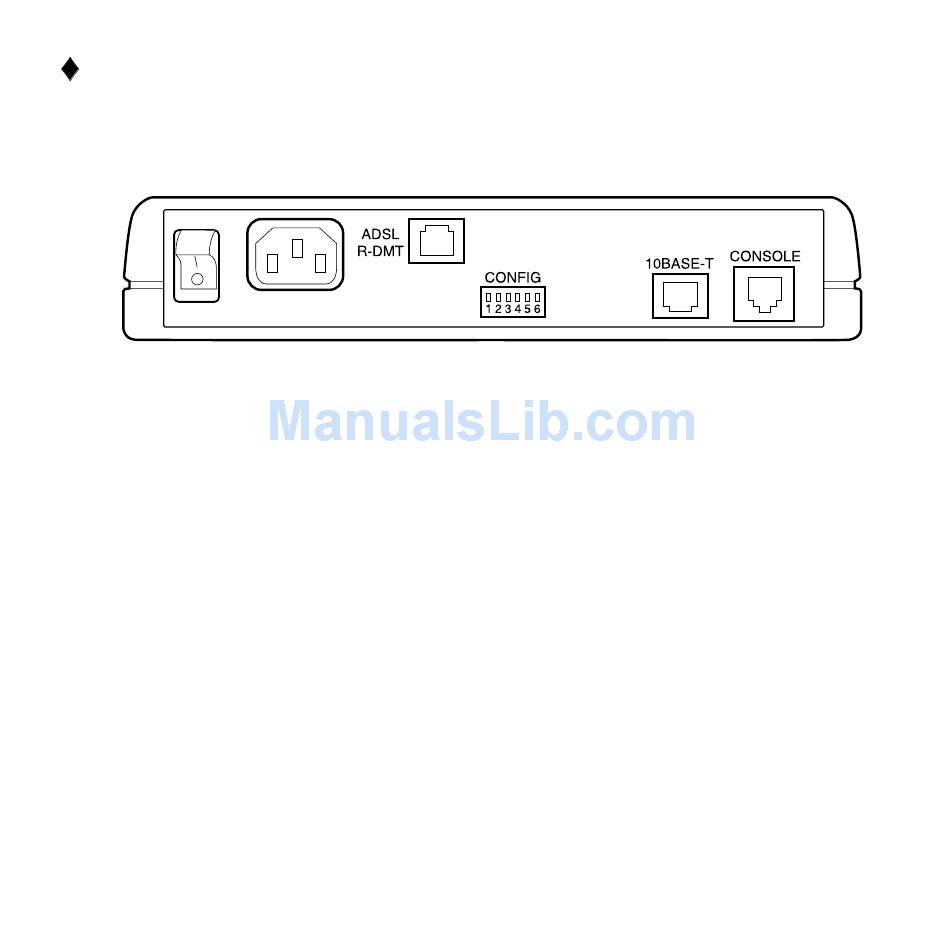

Rear Panel
The rear panel contains all Ethernet, DSL, console, and power
interfaces.
10BASE-T
The 10Base-T Ethernet LAN interface. The router is connected to the
Ethernet LAN with a twisted pair Ethernet cable at this interface.
CONSOLE
RS232 interface used as a control console connection through an RJ45
connector. It supports a set of RS232 signals for connection to an
asynchronous port on a terminal, PC, or other computer in terminal
emulation mode.
CONFIG
Configuration switches which control software execution.
POWER
A standard AC power connector and ON/OFF switch labeled l/0.
