H-2529, H-2530
π
H-3373, H-3374

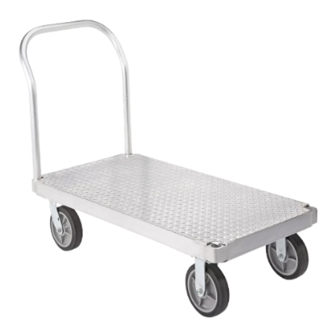

ALUMINUM PLATFORM
TRUCK
TOOLS NEEDED
9⁄16" Wrench
9⁄16" Socket Wrench
1.
Line up mounting holes in caster with the holes in the
caster mounting plate.
NOTE: Nut must be on the caster side of
assembly.
PAGE 1 OF 3
1-800-295-5510
uline.com
ASSEMBLY
2. Place washers on nut side and install as shown on all
3. Tighten all nuts.
4. Insert handle into either end of truck platform.
Pour le français, consulter la page 3.
four casters.
Para Español, vea página 2.
0521 IH-2529
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-2529
Summary of Contents for U-Line H-2529
- Page 1 Para Español, vea página 2. Pour le français, consulter la page 3. H-2529, H-2530 π 1-800-295-5510 H-3373, H-3374 uline.com ALUMINUM PLATFORM TRUCK TOOLS NEEDED 9⁄16" Wrench 9⁄16" Socket Wrench ASSEMBLY Line up mounting holes in caster with the holes in the 2.
- Page 2 H-2529, H-2530 π 800-295-5510 H-3373, H-3374 uline.mx CARRITO CON PLATAFORMA DE ALUMINIO HERRAMIENTAS NECESARIAS Llave de 9⁄16" Llave de Dado de 9⁄16" ENSAMBLE 1. Alinee los orificios de montaje de las ruedas con los 2. Coloque rondanas en el lado de la tuerca y orificios de la placa de montaje de la rueda.
- Page 3 H-2529, H-2530 π 1-800-295-5510 H-3373, H-3374 uline.ca CHARIOT À PLATEFORME EN ALUMINIUM OUTILS REQUIS Clé de 9⁄16 po Clé à douilles de 9⁄16 po ASSEMBLAGE 1. Alignez les trous de fixation des roulettes avec celles 2. Placez les rondelles du côté destiné aux écrous sur des plaques de fixation pour roulette.
