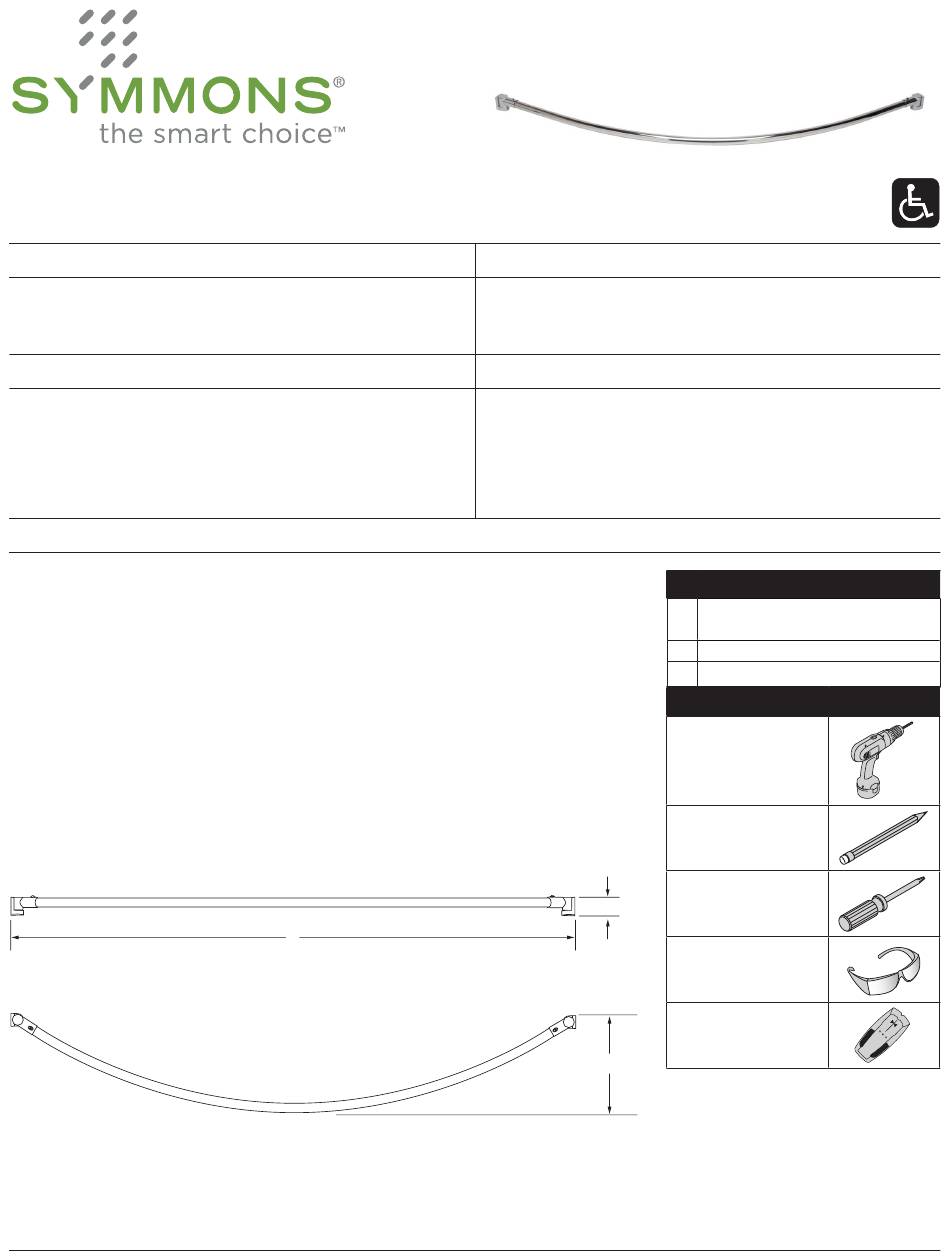

Symmons Dia 353SR-5 Operation & Maintenance Manual

353SR-5, 353SR-6
Curved Shower Rod
Operation & Maintenance Manual
Model Numbers
☐
353SR-5 5' Curved Shower Rod
☐
353SR-6
6' Curved Shower Rod

Finish Options

☐
-STN Satin Nickel finish
Note: Append appropriate -suffix to model number.
Dimensions & Tools Required
For 60" Standard Tub
Mount rod approximately 3" inside the point a
straight rod is normally mounted. The midpoint
of the rod should extend several inches past the
outside rim of the tub.
For 60" Oval Tub
Depending upon tub model, mount rod between
6" and 8" from centerline of the tub. The middle
portion of the rod should curve just outside the
contour of the tub.
Note: Dimensions subject to change without notice.
Dia
®
A A
Specification
• Curved shower rod
• Metal construction

Warranty

Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
B B
C C
Measurements
60", 1524 mm (353SR-5)
A
72", 1829 mm (353SR-6)
B 2-1/8", 54 mm
C 10-1/2", 267 mm
Tools Required
Drill:
3/8 inch for studs
1/4 inch for drywall
5/16 inch for tile
Pencil
Phillips Head
Screwdriver
Safety Glasses
Stud Finder
