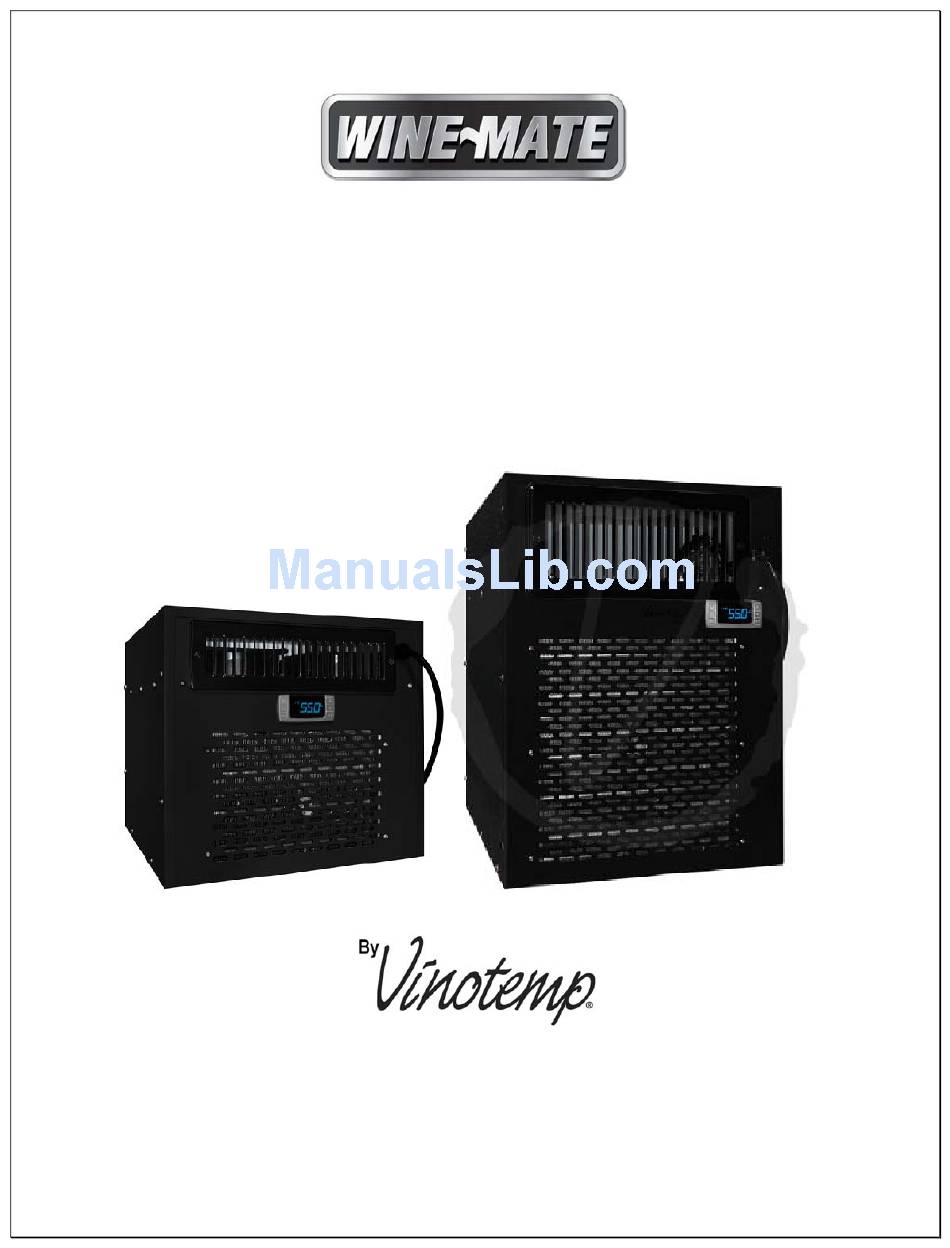

Wine Cooling System
WM-1520HZD, WM-2520HZD
WM-3520HZD, WM-4520HZD
WM-6520HZD, WM-8520HZD
Installation, Use & Care Manual
Read and save these instructions
w
w
w
.
w
i
n
e
m
a
t
e
.
c
o
m
w
w
w
.
w
i
n
e
m
a
t
e
.
c
o
m
w
w
w
.
v
i
n
o
t
e
m
p
.
c
o
m
w
w
w
.
v
i
n
o
t
e
m
p
.
c
o
m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wine-Mate WM-1520HZD and is the answer not in the manual?

Questions and answers

Summary of Contents for Vinotemp Wine-Mate WM-1520HZD

  • Page 1 Wine Cooling System WM-1520HZD, WM-2520HZD WM-3520HZD, WM-4520HZD WM-6520HZD, WM-8520HZD Installation, Use & Care Manual Read and save these instructions...
  • Page 2: Important Safety Information

    Important Safety Information NOTES: • Do not plug in until 24 hours after delivery. • Do not use a ground fault interrupter (GFI). • A dedicated 10 AMP circuit for WM-1520~2520HZD and 15 AMP for WM- 3520~8520HZD are required. - 1 -...
  • Page 3: Table Of Contents

    Table of Contents Features & Specifications.…………………….……………..3 Installation Instructions……………..………………………..6 Temperature & Humidity…………………………..………..16 Care Guide…………………………………………………….20 Troubleshooting………….…………………………………..21 Electrical Diagrams………………..…………………….…24 Customer Support…….…………..…………………….…26 Warranty……………………………………………………….27 - 2 -...
  • Page 4: Features & Specifications

    Features and Specifications • HZD series cooling units are designed and used to provide a stable temperature between 50~65 °F for a properly insulated space. • The refrigerated space will maintain humidity ranges within 50~70% RH. • These temperature and humidity ranges are optimized for long term storage of wine.
  • Page 5 Fig. 1.2 WM-3520~8520HZD FEATURE DESCRIPTIONS Fig. 1.3 WM-1520~2520HZD DIMENSIONS - 4 -...
  • Page 6 Fig. 1.4 WM-3520~8520HZD DIMENSIONS The specifications and dimensions are listed as follows: Cellar Size Dimensions Weight Model Electrical (cu ft) W”XD”XH” (lb) WM-1520HZD 14.25X16X13.25 220V/50HZ/2A WM-2520HZD 14.25X16X13.25 220V/50HZ/3A WM-3520HZD 14.25X21.25X19.75 220V/50Hz/3.5A WM-4520HZD 14.25X21.25X19.75 220V/50Hz/4.5A WM-6520HZD 1400 17X28X22 220V/50Hz/7A WM-8520HZD 1800 17X28X22 220V/50Hz/8A NOTES:...
  • Page 7: Installation Instructions

    Installation Instructions NOTES: • Mounting brackets, screws, gaskets and other seal materials are not included. • Do not install any ducts onto the supply, return, intake and exhaust. • Because of potential safety hazards under a certain condition we strongly recommend against the use of an extension cord.
  • Page 8 2. VINO1520~2520HZD cabinet installation • Cut a rectangular inside opening with the 1/4” clearance inwards to the width and height of the cooling unit. By not going through, leave 1/2” lip inside at the wall to place the gaskets (see Fig 2.1). •...
  • Page 9 Fig. 2.2 THREAD INSERT Fig. 2.3 REAR GASKET - 8 -...
  • Page 10 Fig. 2.4 TOP EXHAUST GASKET Fig. 2.5 COOLING UNIT MOUNTING - 9 -...
  • Page 11 Fig. 2.6 SECURING BRACKET & SCREW - 10 -...
  • Page 12 Fig. 2.7 CABINET GRILLE - 11 -...
  • Page 13 3. WM-3520~8520HZD through-wall installation Fig. 2.8 THROUGH- WALL INSTALLATION • The cooling unit shall be mounted near the ceiling with equal distance from each side of the room. • Cut a rectangular opening at the wine room wall as illustrated. The dimensions of the opening shall be 1/4”...
  • Page 14 NOTE: The cooling unit can be installed with the front of the unit flush with the inside of the wall. Construct a shelf outside the room accordingly. Fig. 2.9 THROUGH-WALL INSTALLATION (OUTSIDE WALL FLUSH) Fig. 2.10 THROUGH-WALL INSTALLATION (INSIDE WALL FLUSH) - 13 -...
  • Page 15 Fig. 2.11 TOP EXHAUST GASKET Fig. 2.12 WALL GRILLE 5. Cellar Construction This is only a guide and shall be considered as minimum requirements. This is only a guide and shall be considered as minimum requirements. All interior walls and floors shall have a vapor barrier and a minimum of R13 insulation.
  • Page 16 Doors shall be of a minimum size, insulated to at least R13 and tightly sealed with high quality weather stripping. Be sure to seal the bottom of the door and fill gap between the door’s frame and wall before installing the cap molding. In order to maintain 55 °F in the wine cellar, the ambient temperature surrounding the enclosure shall not exceed the temperature of the cellar by more than 25 °F.
  • Page 17: Temperature & Humidity

    Temperature and Humidity 1. The controller Fig. 3.1 TEMPERATURE CONTROLLER 1) Keys SET: To display set-point; in programming mode it selects a parameter or confirms an operation. : To start a manual defrost. : To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value.
  • Page 18 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe faulty Compressor switching to Con and CoF Probe temperature ALU higher than the High temperature alarm setting temperature; Outputs unchanged Probe temperature ALL lower than the Low temperature alarm setting temperature;...
  • Page 19 6. Parameter Programming 1) Press and hold the SET + keys until the “°C” or “°F” LED starts flashing, then release the keys. 2) Press and hold again the SET + keys until the Pr2 label is displayed, then release the keys. The first parameter Hy will be displayed. 3) Press up/down keys to scroll to the required parameter within 10 sec.
  • Page 20 In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF = 20 can be used to avoid frost. 9. How to adjust the humidity The parameter Fon is used to adjust the humidity in the wine cellar. Higher Fon results in higher relative humidity.
  • Page 21: Care Guide

    Care Guide 1. Cleaning Condenser • Clean the condenser regularly at least every 6 months. • Condenser is located on the ambient air intake side of the cooling unit. • Use a condenser brush or a vacuum cleaner with an extended attachment to clean the condenser.
  • Page 22: Troubleshooting

    Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes Response a. Power cord not plugged a. Check power cord 1. Unit not b. No power from supply b.
  • Page 23 high or not opening b. Cellar too large b. Check for excessive size cooling and c. Ambient temperature too high c. Check installation location running d. Exhaust restricted d. Leave minimum 3 feet clearance for continually the hot air exhaust side and leave minimum 1 foot clearance for the fresh air intake side e.
  • Page 24 b. Low ambient temperature b. Move to another location c. Air probe fault c. Change a new one d. Temperature controller fault d. Change a new one a. Evaporator air flow restriction a. Check for fans and air flow 13.Evaporator b.
  • Page 25: Electrical Diagrams

    Electrical Wiring Diagrams Fig. 6.1 WM-1520~2520HZD WIRING DIAGRAM Fig. 6.2 WM-1520~2520HZD WIRING DIAGRAM (ALARM CALL) - 24 -...
  • Page 26 Fig. 6.3 WM-3520~8520HZD WIRING DIAGRAM Fig. 6.4 WM-3520~8520HZD WIRING DIAGRAM (ALARM CALL) - 25 -...
  • Page 27: Customer Support

    Customer Support If you need further assistance, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 26 -...
  • Page 28: Warranty

    BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
  • Page 29 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
