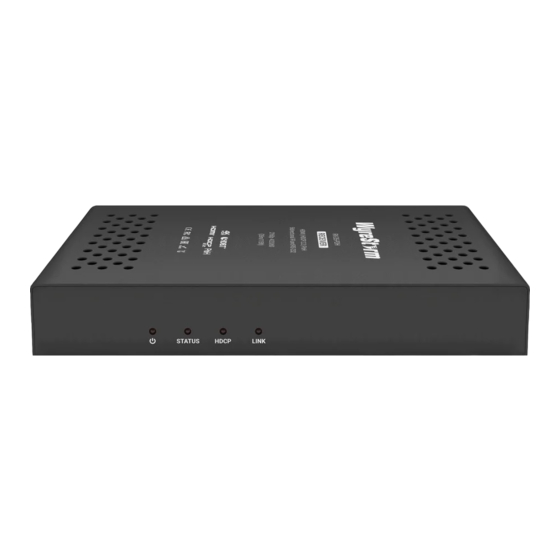

4K UHD HDBaseT™ Receiver with Bidirectional IR,
RS-232 and PoH (4K: 35m/115ft | 1080p: 70m/230ft)
RX-35-POH
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document versions,
additional documentation, and configuration tools.
• Read through the
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Basic Wiring Diagram
Copyright © 2020 WyreStorm Technologies |
RX-35-POH Quickstart Guide | 201112
section for important wiring
TS-280-US
Laptop
TX-35-IW
wyrestorm.com
In the Box
1x RX-35-POH Receiver
1x 12V 2A Power Adaptor (US, UK, EU, AU)
1x IR Emitter
1x IR Receiver
2x Mounting Brackets
1x 3 Pin Phoenix Male Connector
1x Quickstart Guide (this document)
12V DC 2A
Power Supply
RX-35-POH
HDBaseT Cat5e/6/6a
IR RX
IR TX
KEY
HDMI
HDBaseT
Control
Power
1 of 4
Quickstart Guide
HDMI
HDR Display
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Email:
support@wyrestorm.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm RX-35-POH
Summary of Contents for Wyrestorm RX-35-POH
- Page 1 4K UHD HDBaseT™ Receiver with Bidirectional IR, RS-232 and PoH (4K: 35m/115ft | 1080p: 70m/230ft) Quickstart Guide RX-35-POH WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the installation process. In the Box IMPORTANT! Installation Requirements 1x RX-35-POH Receiver •...
- Page 2 HDBT In. 19-pin type A HDMI female HDMI Out Supports HDMI and DVI/D with adapter Copyright © 2020 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) 2 of 4 RX-35-POH Quickstart Guide | 201112 Email: support@wyrestorm.com...
- Page 3 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM | EAC Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information This product is covered by a 5-year limited parts and labor warranty. During this period there will be no charge for unit repair, component replacement or complete product replacement in the event of malfunction.
