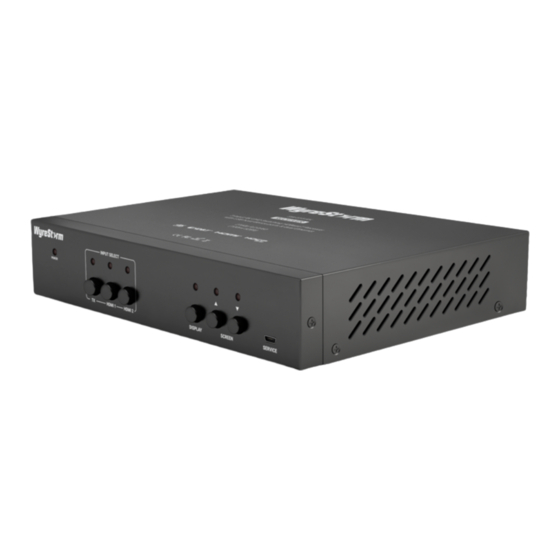

3-input 4K UHD Switching HDBaseT Receiver
with USB Host/Device Ports & Dual Ethernet (4K: 100m/328ft)
SW-515-RX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.
IMPORTANT! Installation Requirements
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
Information and Parts Required for Installation
This extender requires connection via RS-232 or Ethernet in order to configure
functions such as EDID. Ensure that the following items are on hand before
proceeding with the installation.
• PC or Mac
• Telnet and Terminal software such as
• USB COM Port Adapter (Not Included)
• WyreStorm Part: CAB-USB-3PIN
• Network router and/or switch if using IP telnet for configuration.
• Latest version of the
SW-515-RX API
covered in this document.

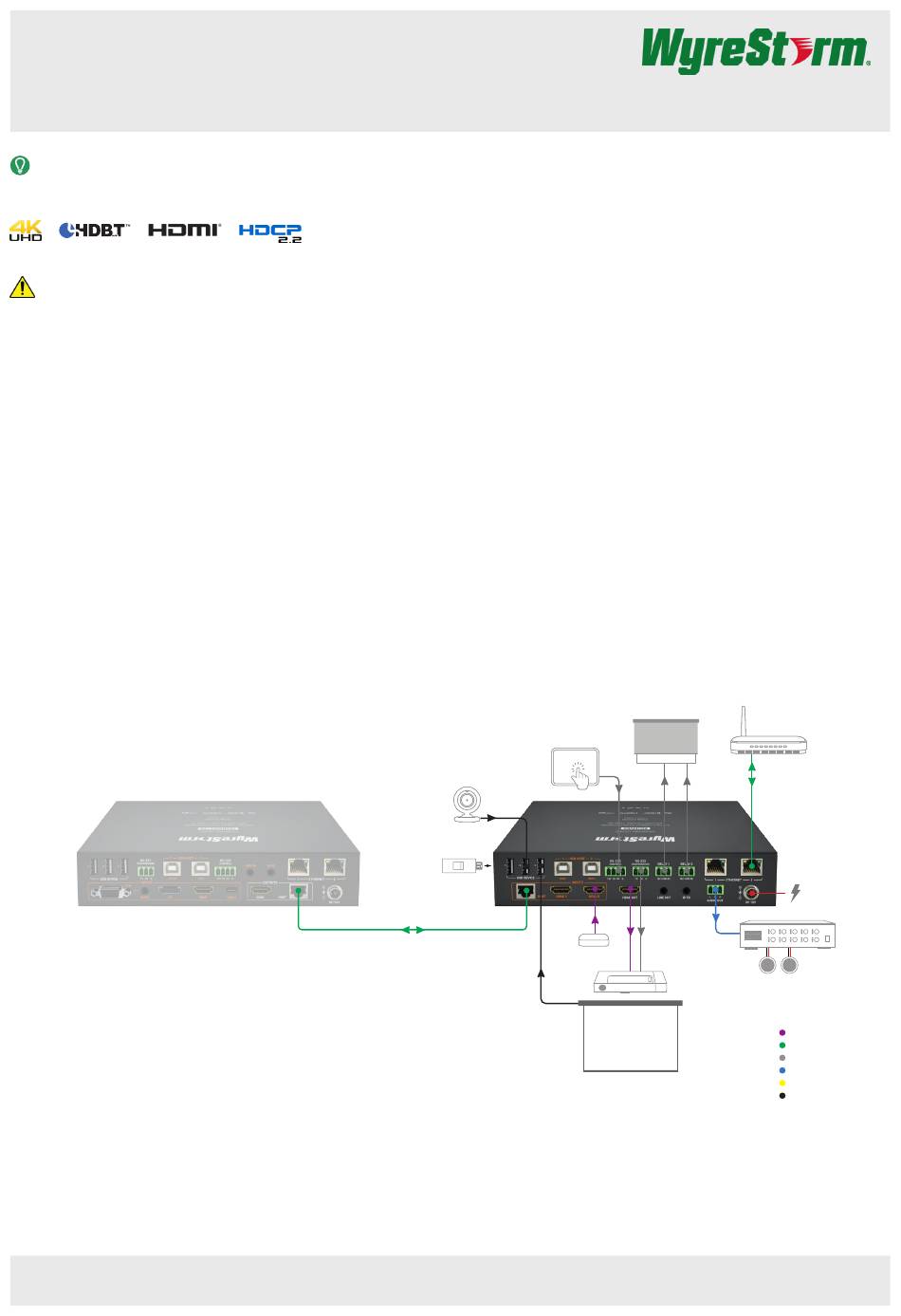

Basic Wiring Diagram
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
SW-515-RX Quickstart Guide | 191212
section for important wiring
PuTTY
for advanced configuration not
SW-510-TX
In the Box
1x SW-515-RX Receiver
1x 12V DC Power Supply (US/UK/EU)
1x IR Transmitter
2x Mounting Brackets
3x 3-pin Screw Down Phoenix Connector
1x 4-pin Screw Down Phoenix Connector
1x Quickstart Guide (This Document)
Touchscreen
USB Camera
USB Flash Drive
Signage Player
1 of 4
Quickstart Guide
Window Blinds
Router
Short Throw
Projector
Interactive
Whiteboard
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
12V DC 1.5A
Power Supply
Amplifier
KEY
HDMI/DisplayPort/USB-C
HDBaseT/Ethernet
RS-232/Relay
Analog Audio
Analog Video
USB 2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm SW-515-RX
Summary of Contents for Wyrestorm SW-515-RX
- Page 1 3-input 4K UHD Switching HDBaseT Receiver with USB Host/Device Ports & Dual Ethernet (4K: 100m/328ft) SW-515-RX Quickstart Guide WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the installation process. In the Box IMPORTANT! Installation Requirements 1x SW-515-RX Receiver •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.
- Page 3 The SW-515-RX is configured using RS-232 and/or Telnet commands for IP address, Output Resolution, and EDID. Follow these steps to properly configure the extender based on the system requirement. Note: The steps and information provided in this QSG are for basic operation of the extender out of the box. Refer to the SW-515-RX API for full configuration settings.
- Page 4 Safety and Emission CE | FCC | RoHS Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
