Wyrestorm MX-0404-HDBT-H2-KIT Quick Start Manual

4x4 HDBaseT Matrix with HDCP 2.2
and 4 Low Profile PoH Receivers (70m/230ft)

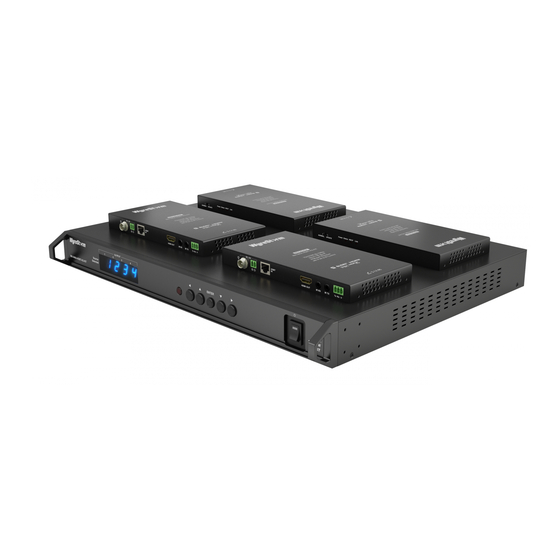

MX-0404-HDBT-H2-KIT Receivers
WyreStorm's latest 4x4 'Kit'; this PoH matrix with 4 receivers ensures compatibility with the latest 4K sources that require HDCP 2.2 encryption.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
Refer to the MX-0404-HDBT-H2-KIT MTRX Quickstart Guide for box
contents included with this kit.
Basic Wiring Diagram
IR TX
IR RX
HDMI
Receivers
powered by
RS-232
Control System
IR RX
LAN
Cat5/5e/6
AC Mains
Power
HDMI HDMI
IR TX
Blu-ray Player
IR TX
Satelitte Box
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.

Additional Information

This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Copyright © 2015 WyreStorm Technologies |
MX-0404-HDBT-H2-KIT Quickstart Guide | 160302
Note: The IR RX can only
be used for source
control at the matrix.
IR TX
Matrix control is not
supported.
IR RX
HDMI
MX-0404-HDBT-H2-KIT (recevier)
IR Control System
IR RX
CAB-IR-LINK (Sold Seperatley)
MX-0404-HDBT-H2-KIT (matrix)
HDMI
Display Mirrored to
HDBaseT Output
Key
HDMI/Digital Video IR Power
RS-232
HDBaseT/Ethernet
wyrestorm.com

Before Beginning

• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the
list.
Pre Wire
1. Run a Cat5e/6/6a cable from the matrix location to the receiver
location no longer than 35m/114ft (4K) and 70m/230ft (1080p).
Terminate the cable per the
2. (Optional) If using IR emitters, run the wire and terminate per the
TX (Emitter) Wiring
3. (Optional) If using IR receivers or an IR control system, run the wire
and terminate per the

Receiver Installation

1. Install the matrix switcher following the instructions provided in the
MX-0404-HDBT-H2-KIT MTRX Quickstart Guide.
2. Connect the HDMI Out on the receiver to an input on the display
using an HDMI cable from a high quality brand such as
Express.
3. Using the cable created in
female plug to the HDBT In jack on the receiver.
4. (Optional) Place an IR emitter onto the display device near the
device's IR sensor and connect the opposite end to an IR TX port.
(Optional) Connect an IR Receiver to the receivers IR RX port. If
5.
using an IR control system, connect it to an IR RX port on the
WyreStorm CAB-IR-LINK
receiver using the
Pre Wire step 2.
6. Repeat steps for additional receivers.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4

Quickstart Guide

HDMI/HDBaseT Wiring
section.
IR RX/IR EXT (Receiver) Wiring
Pre Wire step 1, connect the 8-pin RJ-45
or the cable created in
support@wyrestorm.com
In the Box
section.
IR
section.
WyreStorm
