Wyrestorm RX-70-4K-ARC Quick Start Manual

4K UHD HDBaseT 5-Play HDCP 2.2 Receiver with ARC and
2-way PoH (4K: 70m/230ft | 1080p: 100m/328ft)

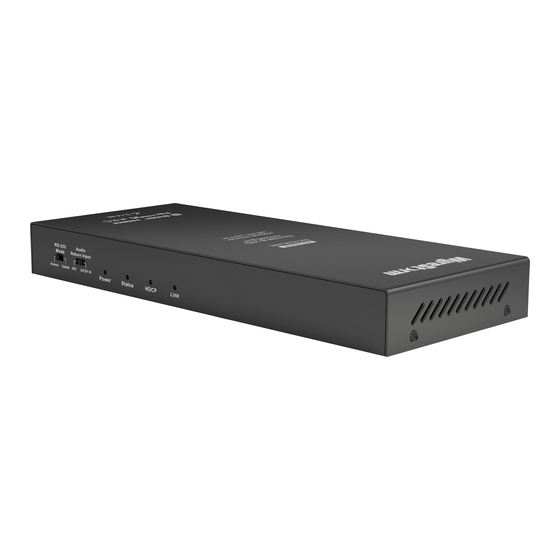

RX-70-4K-ARC v2
Receives UHD and HDR content from up to 70m/230ft (1080p to 100m/328ft) using Class A HDBaseT technology. Additional features include 2-way
PoH, bidirectional Ethernet, IR & RS-232 pass-through, and Audio Return Channel (ARC).
Note:
The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
In the Box
1x RX-70-4K-ARC v2 Receiver
1x IR Emitter
1x Wide-band IR Receiver (30-50KHz)
2x Mounting Brackets
1x 3-pin Phoenix Connector
1x Quickstart Guide (this document)

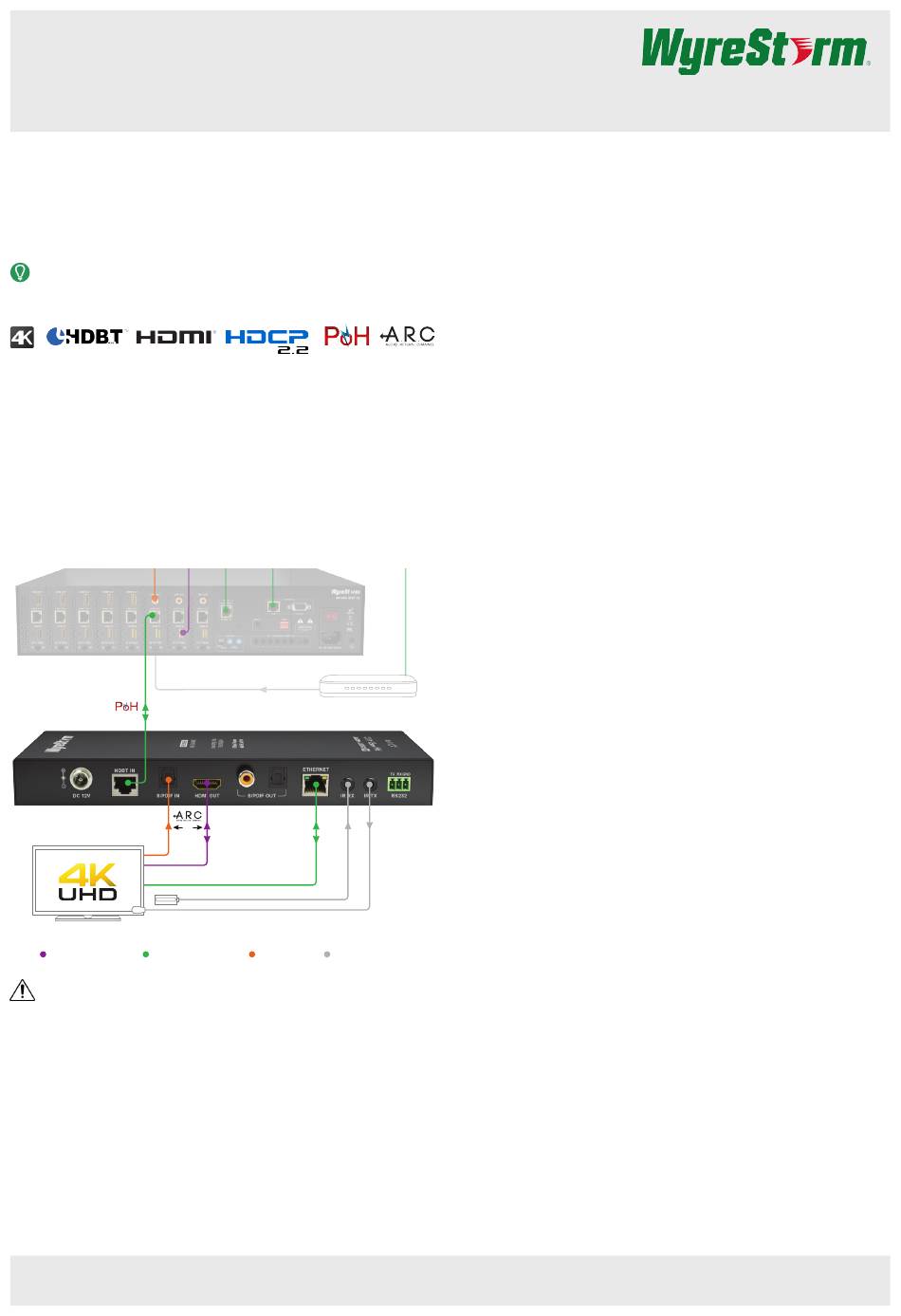

Basic Wiring Diagram
H2 Matrix with ARC
2-way
RX-70-4K-ARC
UHD Display
HDMI/Digital Video HDBaseT/Ethernet
Key
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Recommended Products
To take full advantage of the features of this receiver, WyreStorm
recommends the following products be used within the system.
• H2 Series HDBT Matrix Switchers - Certain output cards on these
switchers have an ARC function which is supported by the RX-70-4K-
ARC. Other receivers may not support ARC.
• CAB-IR-LINK – Use this cable when using an IR control system for
matrix control of HDBaseT pass-through.
Copyright © 2016 WyreStorm Technologies |
RX-70-4K-ARC v2 Quickstart Guide | 161006
Control System
IR RX
CAB-IR-LINK (Sold Separately)
or
Digital Audio IR
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Before Beginning
• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the
list.
Pre Wire
1. Run a Cat5e/6/6a cable from the transmitter location to the receiver
location no longer than 70m/230ft (4K) and 100m/328ft (1080p).
Terminate the cable per the
2. (Optional) If using 3rd party IR emitters or connecting blocks at
either the transmitter or receiver, run the wire and terminate per the
IR TX (Emitter) Wiring
3. (Optional) If using RS-232 pass-through, run the wire and terminate
per the RS-232 Wiring
4. (Optional) If using 3rd party IR receivers at either the transmitter or
receiver, run the wire and terminate per the
section.
Receiver Installation
1. Connect the HDMI Out on the receiver to an input on the display
using an HDMI cable from a high quality brand such as
Express.
2. Using the cable created in
female plug to the HDBT In jack.
3. (Optional) Place an IR emitter onto the display device near the
device's IR sensor and connect it the IR TX port.
4. (Optional) If using RS-232 pass-through, connect the 3-pin
connector to the RS-232 port on the receiver and the opposite end
to a port on the device being controlled.
5. (Optional) If using ARC using the display devices digital audio
output, connect a TOSLINK cable from the display device to the
S/PDIF In on the receiver.
6. If using ARC via HDMI or the audio inputs and outputs, see
Return Input Settings
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
HDMI/HDBaseT Wiring
section.
section.
IR RX (Receiver) Wiring
Pre Wire step 1, connect the 8-pin RJ-45
for switch configuration.
