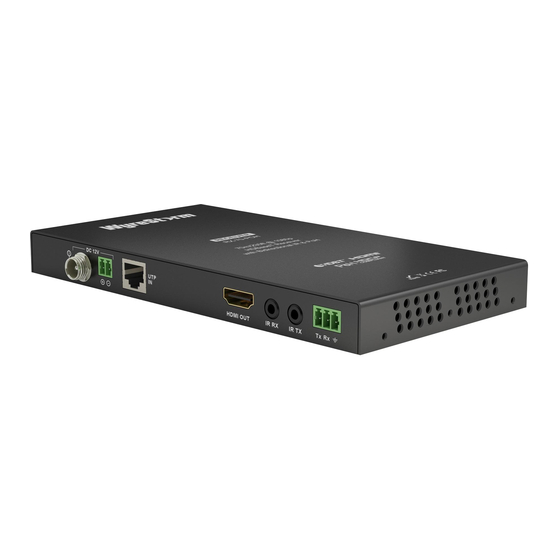

RX-70-POH
WyreStorm HDBaseT™ POH Display Receiver with Bi-directional
IR Control and RS-232 (1080p: 70m/230ft, 4K: 35m/114ft)
Instruction Manual
Thank you for choosing this WyreStorm product.
Please read these instructions carefully before installing to avoid complications later.
1
US/CAN/MEX: +1-518-289-1294
Toll Free Technical Support: +1-844-280-WYRE (9973)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm RX-70-POH
Summary of Contents for Wyrestorm RX-70-POH
- Page 1 RX-70-POH WyreStorm HDBaseT™ POH Display Receiver with Bi-directional IR Control and RS-232 (1080p: 70m/230ft, 4K: 35m/114ft) Instruction Manual Thank you for choosing this WyreStorm product. Please read these instructions carefully before installing to avoid complications later. US/CAN/MEX: +1-518-289-1294 Toll Free Technical Support: +1-844-280-WYRE (9973)
-
Page 2: Safety Precautions
IMPORTANT! Do Not Hot swap HDMI plugs or HDBaseT connectors - Please insert and extract cables carefully with the power SWITCHED OFF. Power is passed along transmissions so connecting and disconnecting cables while powered can result in damage to circuitry or possible injury. Technical support: support@wyrestorm.com EMEA/ROW: +44 (0) 1793 230 343... -
Page 3: Table Of Contents
Contents Safety Precautions Contents Introduction Features In the Box Specifications Panel Description Applications RJ45 Termination and Cat5e/6 Cable Distance Initial Connection IR/RS-232 Control Connection Update RS-232 Settings RS-232 Connection Troubleshooting Maintenance Provided Service Mail In Service Warranty Warranty Limits and Exclusions Disclaimer Installation Notes US/CAN/MEX: +1-518-289-1294... -
Page 4: Introduction
If local power is required, the RX-70-POH offers additional 12v power connectivity via threaded bushings for both standard or locking DC power plugs and phoenix connector. -
Page 5: In The Box
For longer transmission distances, LAN control and Ethernet pass-through, see other models in the WyreStorm HDBaseT range of matrices, transmitters, receivers and extender sets. WyreStorm reserves the right to change hardware, software, packaging and any accompanying documentation without prior written notice. -
Page 6: Panel Description
Cable NOTE: Cable types below are for reference only. This product is tested using WyreStorm HDMI cables - WyreStorm recommends the use of cable from a high quality brand such as WyreStorm Express for guaranteed quality and reliability of transmission when dealing with UHD 4K content. -
Page 7: Applications
NOTE: Transmission device must be PoH-enabled to remotely power the RX-POH-70. RS-232 3-pin RS-232 for firmware update HDMI OUT Connects to display device Applications WyreStorm HDBaseT PoH Matrix as Transmission Device HDMI Source HDMI Display IR Emitter HDBaseT Cat5e/6/6a HDMI... -
Page 8: Initial Connection
Connect a good quality, well-terminated Cat6 cable of no more than 70m/230ft for 1080p or 35m/114ft for 4K* between the HDBT or UTP OUT of the transmission device (matrix or transmitter) to the HDBT IN or UTP IN Input of the RX-70-POH. -
Page 9: Update Rs-232 Settings
An IR receiver should be connected from the IR RX port of the RX-70-POH to the display device, placing the receiver eye on or near the display in clear line of sight to the remote handset used to control, ensuring no obstruction that could interfere with the signal. -
Page 10: Troubleshooting
2) If possible, always use test equipment prior to installation and to troubleshoot any problems. 3) Check the display device is compatible with the RX-70-POH and supports HDCP. Also verify the display device is switched to the correct source input mode. If any issue is suspected, replace display device with another model. - Page 11 It may be an EDID issue in that the source reads the audio EDID from the display and only requests two channel audio. The RX-70-POH features automatic internal handling of EDID between devices so in EDID disparity cases, inclusion of a compatible device enabling manual EDID management to copy EDID from the AVR may be required.
-
Page 12: Faq
7) If problems persist, swap out the IR emitters and receivers to rule out faults with the units themselves. Use emitters you know are fully operational to test working condition. 8) If using a WyreStorm matrix, Reactivate the IR call-back function and swap IR ports on the matrix to rule out a fault with the matrix or connection ports. - Page 13 Do I need power at the TV end? It depends on the WyreStorm device. Products with one-way PoH or PoE technology require local power at the Transmitter end to power the Receiver remotely, but products with two-way PoH or PoE can be locally powered at either the Transmitter OR Receiver ends, depending on which location offers best power availability.
-
Page 14: Maintenance
Replace it with a new or refurbished product. Limited warranty period: All WyreStorm products are covered by a 3 year PARTS and LABOUR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of product if necessary. -
Page 15: Warranty Limits And Exclusions
WyreStorm reserves the right to change software, control codes and specifications without notice. WyreStorm will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions. - Page 16 US: +1 844-280-WYRE (9973) UK:- +44 (0) 1793 230 343 Email: support@wyrestorm.com WyreStorm Technologies reserve the right to change physical appearance or technical specification of this product at any time. Visit wyrestorm.com for the latest information on products.. 150911 Technical support: support@wyrestorm.com...
