4K 4:4:4 60Hz 18Gbps HDMI, HDCP 2.2 and
Bidirectional IR or RS-232 over OM3 Multi-Mode Fiber
EXF-300-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.
In the Box

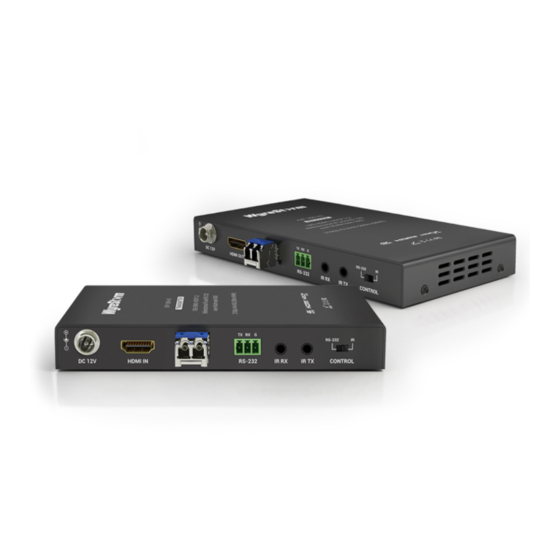

1x EXF-300-H2 Transmitter
1x EXF-300-H2 Receiver
1x Dual USB-A to Locking DC Power Plug
1x IR Emitter
1x IR Receiver (30KHz ~ 50KHz)
2x Male Phoenix Connector
4x Mounting Brackets
1x Quickstart Guide (This Document)

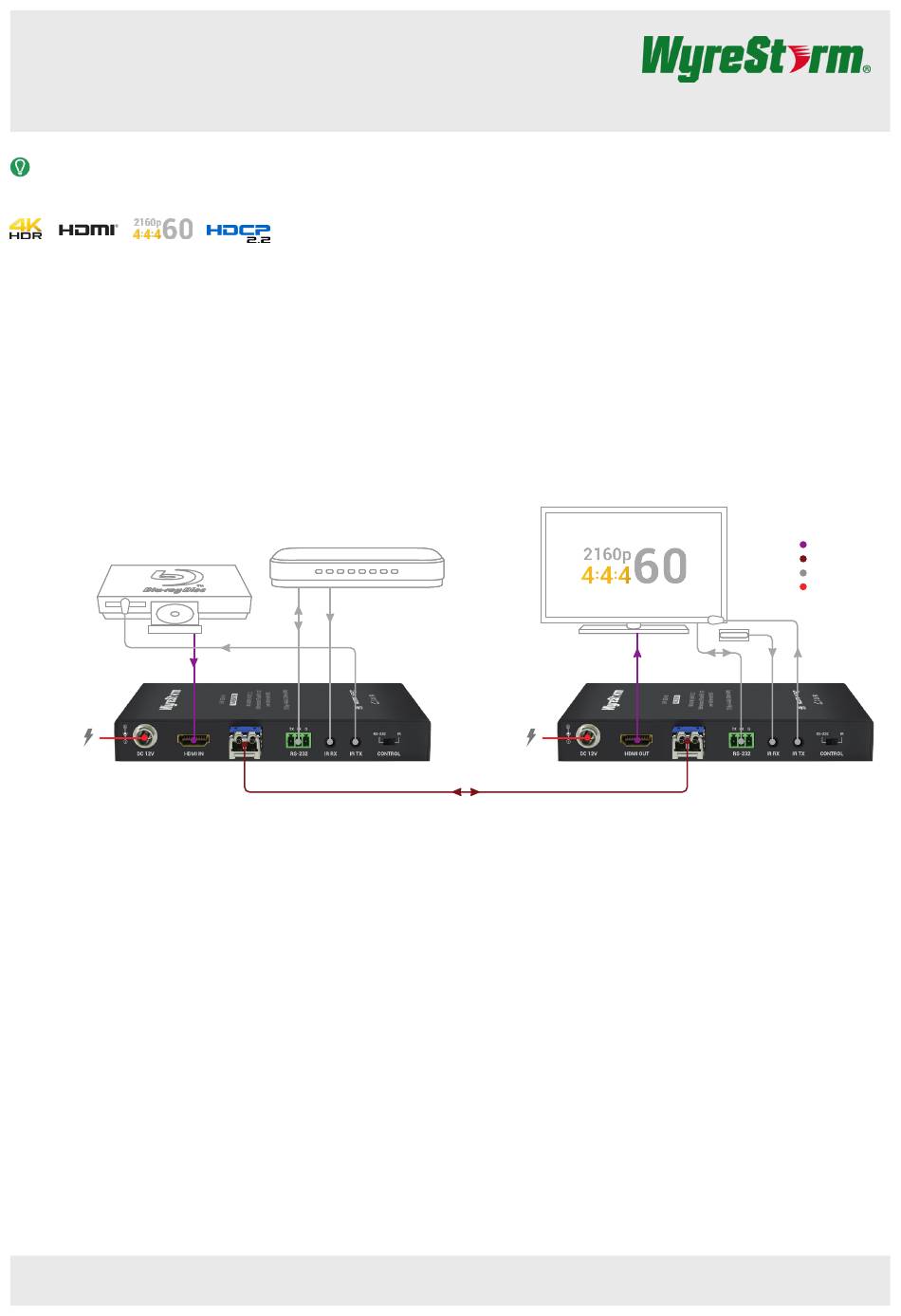

Basic Wiring Diagram
HDMI Source
HDMI
12v DC
Power Supply
EXF-300-H2
Transmitter
Copyright © 2018 WyreStorm Technologies |
EXF-300-H2 Quickstart Guide | 180516
Control System
IR using CAB-IR-LINK
RS-232
(Sold Separately)
IR
wyrestorm.com
12v DC
Power Supply
OM3 Multi-Mode Fibre
300m/984ft
Note: RS-232 and IR signals cannot be transmitted simultaneously over
OM3 if both are connected. Use either RS-232 or IR to avoid data conflicts.
1 of 4
Quickstart Guide
HDMI
IR
RS-232
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
KEY
HDMI
OM3 MM Fiber
IR/RS-232
Power
IR
EXF-300-H2
Receiver
