Connecting Expansion Modules; Connecting A Wired Zone Expander; Connecting A Wireless Zone Expander - Pyronix ENFORCER V11 Installation Manual

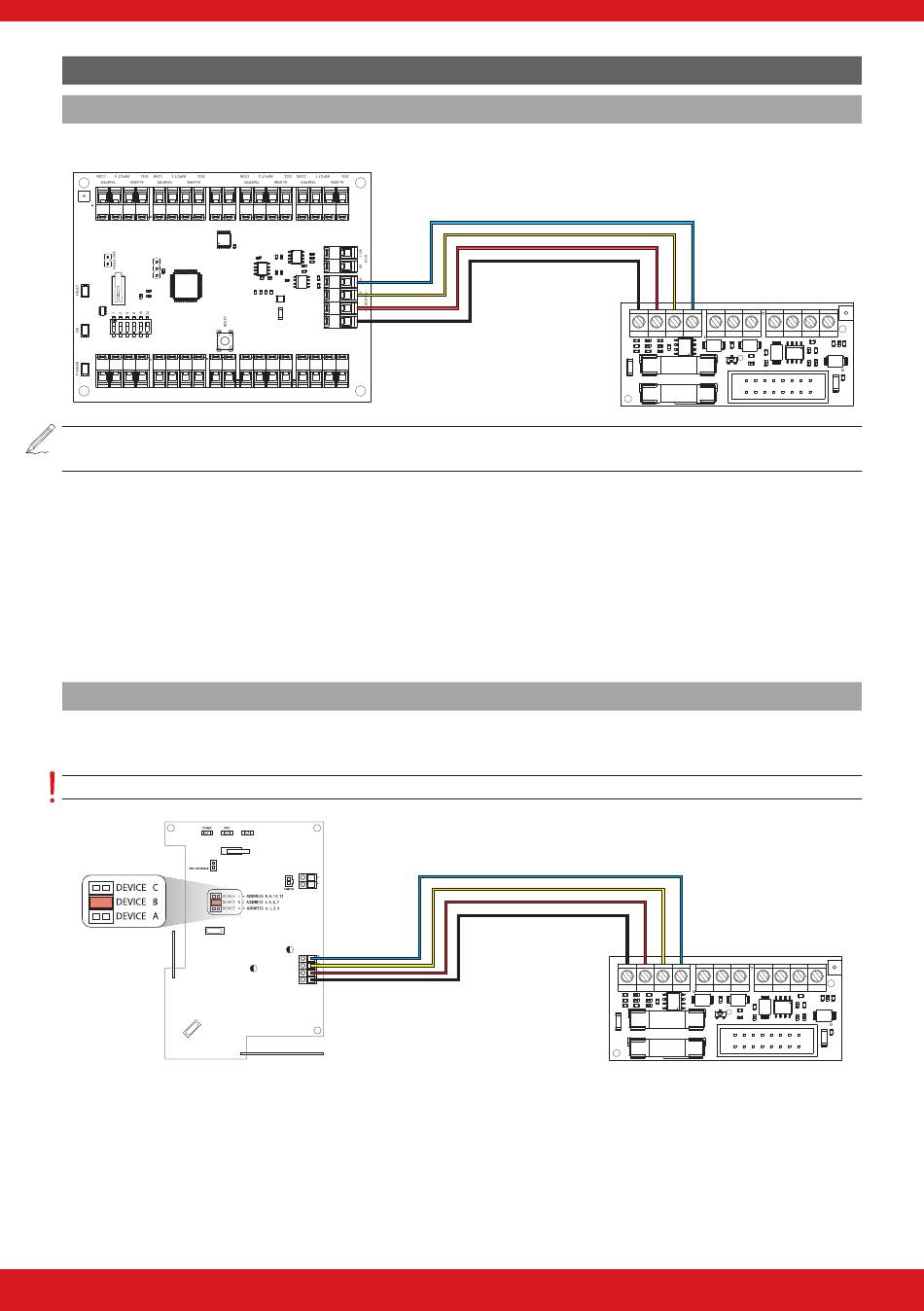

Up to 4 wired zone expanders can be connected to the Enforcer.
ALARM TAMPER ALARM TAMPER
EOL INPUT 5 COM EOL INPUT 6 COM
Please note: The above shows the I/O board connected to a EURO-ZEM8, a EURO-ZEM8+ is connected in
the same way. If using a EURO-ZEM8+PSU, the D2+ MUST NOT be connected.
ZEM address 0
Zones 35-42
ZEM address 1
Zones 43-50
ZEM address 2
Zones 51-58
ZEM Address 3
Zones 59-66
1 wireless zone expander can be connected to the Enforcer however, this expander can take the place of 4
addresses potentially expanding the system by 32 wireless peripherals.
IMPORTANT NOTE: The wireless ZEM must be addressed as 'Device B' via the jumper headers.
The wireless ZEM allows a maximum 32 wireless zones to be learnt. These 32 zones are programmed as 4 different
ZEMs (addresses), and each having 8 wireless zones assigned.
Example
Wired and wireless zone expanders can be installed together on a system and, as long as they are addressed
uniquely, they will work alongside each other. For instance, if you wish to use 24 wireless zones and 8 wired zones,
you can program the wireless ZEM as ZEM addresses 00, 01 and 02 in the menu item 'i
zones to the system using the 'W
ALARM TAMPER ALARM TAMPER
EOL INPUT 7 COM EOL INPUT 8 COM
d C
iReless eviCe ontRol
ENFORCER V11 INSTALLATION GUIDE

CONNECTING EXPANSION MODULES

Connecting a wired zone expander

Connecting a wireless zone expander

' menu. Then address a wired ZEM as ZEM 03.
D1- D2+ D3 D4 PGM STB BELL Z33 COM +12V Z34
D1- D2+ D3 D4 PGM STB BELL Z33 COM +12V Z34
ZeM' and learn 24
nstAll
