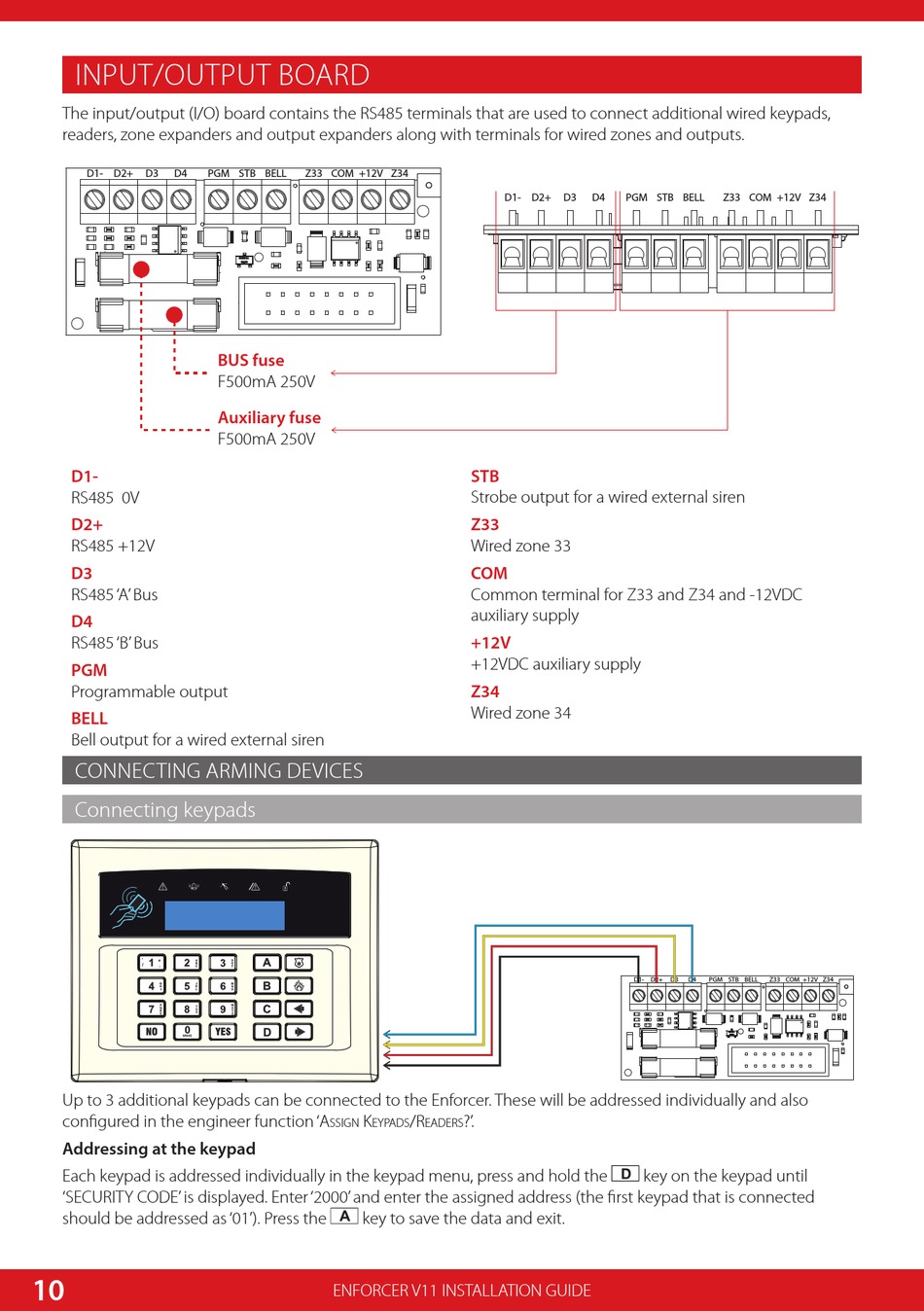

INPUT/OUTPUT BOARD

The input/output (I/O) board contains the RS485 terminals that are used to connect additional wired keypads,
readers, zone expanders and output expanders along with terminals for wired zones and outputs.
D1- D2+ D3 D4
D1-
RS485 0V
D2+
RS485 +12V
D3
RS485 'A' Bus
D4
RS485 'B' Bus
PGM
Programmable output
BELL
Bell output for a wired external siren

CONNECTING ARMING DEVICES

Connecting keypads

Up to 3 additional keypads can be connected to the Enforcer. These will be addressed individually and also
configured in the engineer function 'A
Addressing at the keypad
Each keypad is addressed individually in the keypad menu, press and hold the D key on the keypad until
'SECURITY CODE' is displayed. Enter '2000' and enter the assigned address (the first keypad that is connected
should be addressed as '01'). Press the a key to save the data and exit.
10
PGM STB BELL Z33 COM +12V Z34
BUS fuse
F500mA 250V
Auxiliary fuse
F500mA 250V
K
ssign eypAds
ENFORCER V11 INSTALLATION GUIDE
D1- D2+ D3
STB
Strobe output for a wired external siren
Z33
Wired zone 33
COM
Common terminal for Z33 and Z34 and -12VDC
auxiliary supply
+12V
+12VDC auxiliary supply
Z34
Wired zone 34
/R ?' .
eAdeRs
D4 PGM STB BELL Z33 COM +12V Z34
D1- D2+ D3 D4 PGM STB BELL Z33 COM +12V Z34
