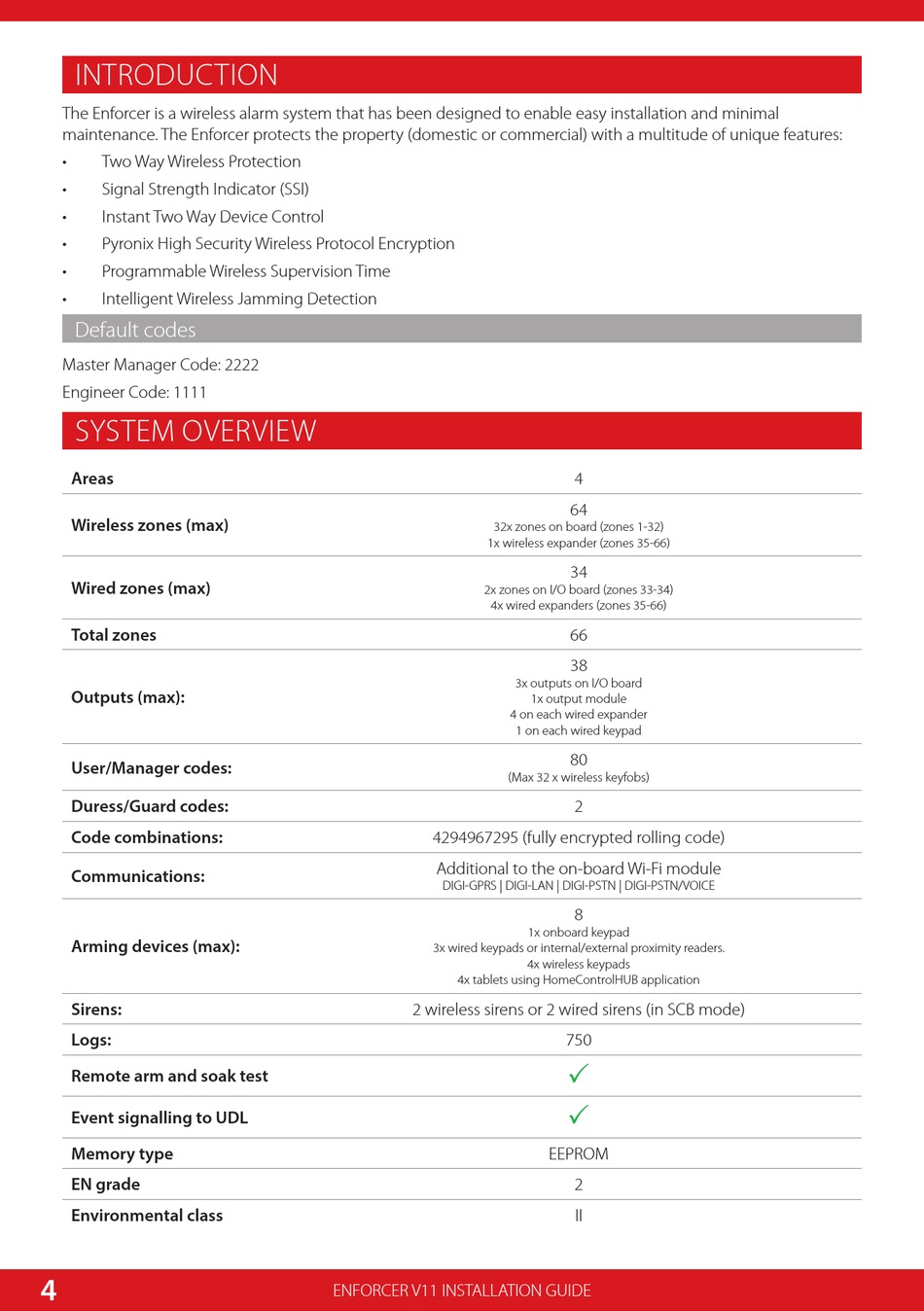

INTRODUCTION

The Enforcer is a wireless alarm system that has been designed to enable easy installation and minimal
maintenance. The Enforcer protects the property (domestic or commercial) with a multitude of unique features:
• Two Way Wireless Protection
• Signal Strength Indicator (SSI)
• Instant Two Way Device Control
• Pyronix High Security Wireless Protocol Encryption
• Programmable Wireless Supervision Time
• Intelligent Wireless Jamming Detection

Default codes

Master Manager Code: 2222
Engineer Code: 1111

SYSTEM OVERVIEW

Areas
Wireless zones (max)
Wired zones (max)
Total zones
Outputs (max):
User/Manager codes:
Duress/Guard codes:
Code combinations:
Communications:
Arming devices (max):
Sirens:
Logs:
Remote arm and soak test
Event signalling to UDL
Memory type
EN grade
Environmental class
4
32x zones on board (zones 1-32)
1x wireless expander (zones 35-66)
2x zones on I/O board (zones 33-34)
4x wired expanders (zones 35-66)
4294967295 (fully encrypted rolling code)
Additional to the on-board Wi-Fi module
DIGI-GPRS | DIGI-LAN | DIGI-PSTN | DIGI-PSTN/VOICE
3x wired keypads or internal/external proximity readers.
4x tablets using HomeControlHUB application
2 wireless sirens or 2 wired sirens (in SCB mode)
ENFORCER V11 INSTALLATION GUIDE
4
64
34
66
38
3x outputs on I/O board
1x output module
4 on each wired expander
1 on each wired keypad
80
(Max 32 x wireless keyfobs)
2
8
1x onboard keypad
4x wireless keypads
750
P
P
EEPROM
2
II
