OE-C8213 Quick Start Guide
OE-C8213 Quick Start Guide
Click the link if you need to download the original hardcopy of the
OE-C8213 Quick Start Guide
included with the boxed
contents.

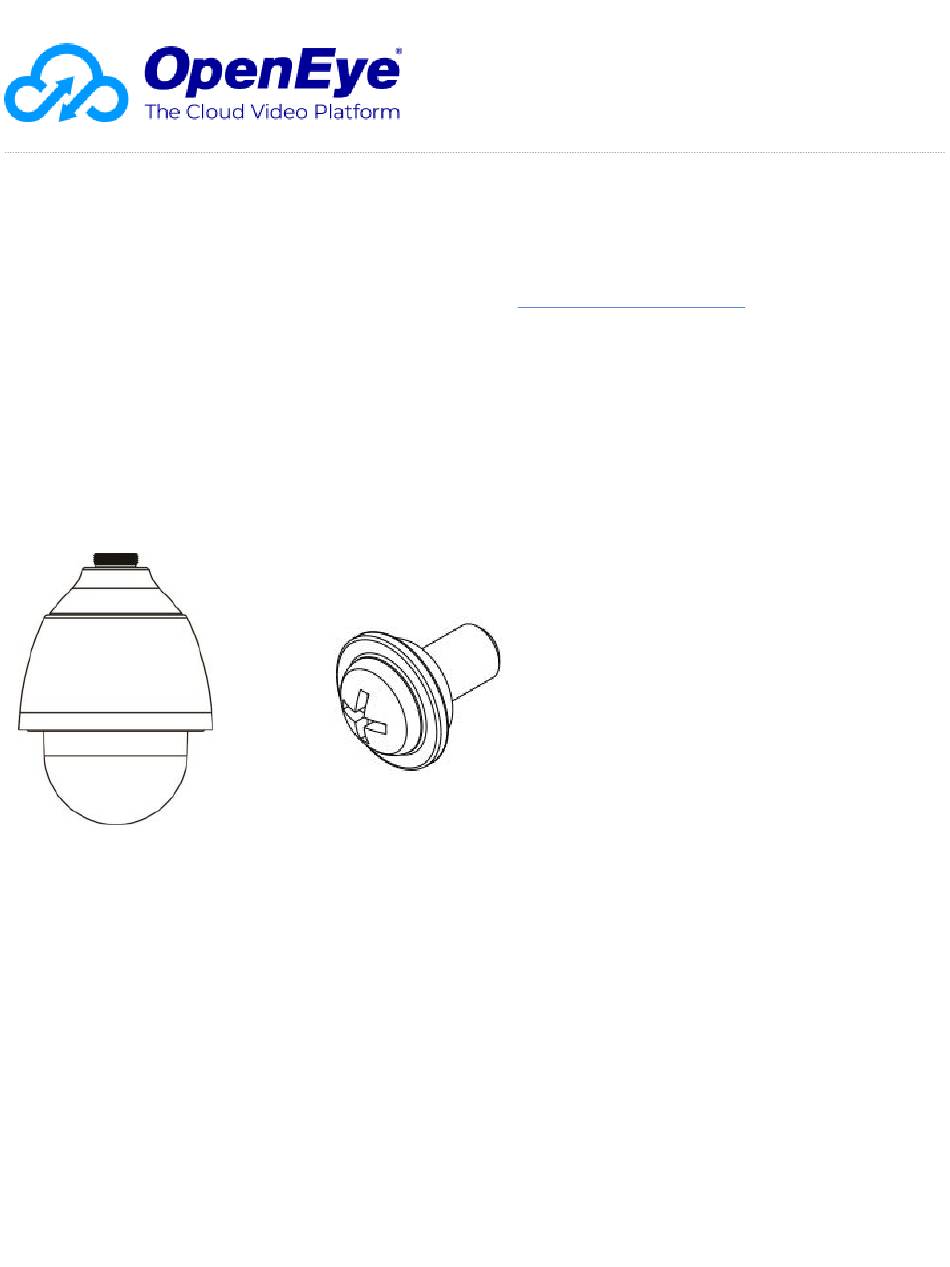

Box Contents
OpenEye C8213 cameras come with screws and rubber washers, 3-Pin power terminal block, threaded mount adapter,
14-pin alarm I/O terminal block, and a torx tool. Identify the following components to make sure everything has been
properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a
replacement.
M4 Screw with Rubber Washer
OE-C8213 Camera
Copyright © OpenEye 2023
1
Advertisement
Table of Contents
Related Manuals for OpenEye OE-C8213
Summary of Contents for OpenEye OE-C8213
- Page 1 Box Contents OpenEye C8213 cameras come with screws and rubber washers, 3-Pin power terminal block, threaded mount adapter, 14-pin alarm I/O terminal block, and a torx tool. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.
- Page 2 14-Pin Alarm I/O Terminal Block 3-Pin Power Terminal Block Threaded Mount Adapter Connections RJ-45 For network and PoE+ connections Power Connector (AC24V) Power supply to camera for non-PoE installations I/O Connections Alarm and RS 485 I/O connections Copyright © OpenEye 2023...
- Page 3 Do not add or remove the microSD card when the camera is powered on. Camera Cabling Considerations The OE-C8213 has an IP66 Outdoor rating to prevent water from entering the camera. However, proper installation is required for this rating. To ensure that the camera is as water resistant as possible, follow these tips: •...
- Page 4 Using the 14-pin connector, installers can connect 4 digital alarm inputs and 2 digital alarm outputs. The alarm pins are serviceable for connecting alarm input and output devices such as sensors, sirens, or flashing lights to the surveillance Copyright © OpenEye 2023...
- Page 5 Alarm OUT B2 RS-485 D+ RS-485 D- Alarm IN 4 Alarm IN 3 Alarm IN 2 Alarm IN 1 Ground (Alarm I/O & RS-485) Default Username and Password *OpenEye IP cameras ship without a default password. Copyright © OpenEye 2023...
- Page 6 Assigning an IP Address OpenEye IP cameras are set to DHCP by default. If a DHCP server is not detected after 2 minutes, the camera will default to IP address 192.168.51.2. If you are not using a DHCP server, NCM will allow you to batch configure a static IP address.
- Page 7 802.3 at PoE+ (30W) / 12vDC 2.12A / 24vAC ± 10% Operating Temperature -40°~122°F (-40°~50°C ) IP Rating IP66 Impact Rating IK10 Related Links Network Camera Manager Advanced Camera Management Adding Cameras and Camera Settings OE-C8213 Copyright © OpenEye 2023...
