OE-C8213 Hardware Manual - Features and Contents
OE-C8213 Hardware Manual - Features and Contents
Important Safeguards
Warranty
Product Description
Camera Dimensions
Connections
Features
Box Contents
Important Safeguards
View
Important Safeguards
before installing the camera.
Warranty
View the
Product Warranty
for the camera.
Product Description

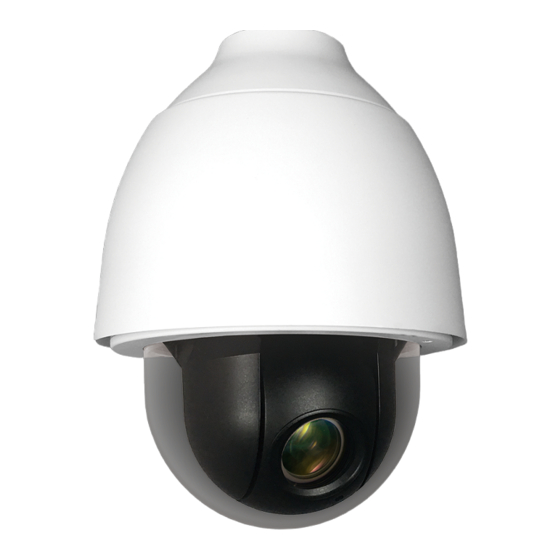

OpenEye OE-C8213 IP PTZ camera provides users with crystal clear video thanks to 3MP resolution and 30x optical
zoom. The cameras' continuous 360º rotation and 190º tilt range make them a versatile PTZ solution for live monitoring
environments. True WDR and a true day/night IR cut filter produce superior video in a variety of lighting conditions. The
Smart Compression option reduces storage requirements by up to 70% while maintaining high resolution video allowing
you to meet video retention and resolution requirements for less. The OE-C8213 is IP66 rated and comes equipped with
a sunshield, heater, and blowers to accommodate a variety of environmental conditions. The camera can be operated
using PoE+ for easy, single cable installation.
All OpenEye cameras are fully ONVIF compliant and compatible with the OpenEye Web Services platform, allowing
multiple users to view high quality images and perform setup through a remote web browser.
https://answers.openeye.net/Install/Hardware_and_OS/Cameras/OpenEye_Cameras/OE-C8213/OE-C8213_Hardware_Manu...
Updated: Sun, 26 May 2024 22:25:20 GMT
Powered by
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OE-C8213 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenEye OE-C8213

Summary of Contents for OpenEye OE-C8213

  • Page 1 Smart Compression option reduces storage requirements by up to 70% while maintaining high resolution video allowing you to meet video retention and resolution requirements for less. The OE-C8213 is IP66 rated and comes equipped with a sunshield, heater, and blowers to accommodate a variety of environmental conditions. The camera can be operated using PoE+ for easy, single cable installation.

  • Page 2: Camera Dimensions

    Camera Dimensions Connections RJ-45 For network and PoE+ connections https://answers.openeye.net/Install/Hardware_and_OS/Cameras/OpenEye_Cameras/OE-C8213/OE-C8213_Hardware_Manu… Updated: Sun, 26 May 2024 22:25:20 GMT Powered by...
  • Page 3 For operation, the IP dome camera requires a network cable to carry the video signals to the remote viewing site and a power cable to power the dome. Cable Requirements For operation, the OE-C8213 can be powered with PoE+ and/or 24vAC if the heater is used. Power Wire Length Specifications Wire Gauge...
  • Page 4 NOTE: An Ethernet crossover cable can be used to connect the camera directly to a PC during configuration. Camera Cabling Considerations The OE-C8213 has an IP66 Outdoor rating to prevent water from entering the camera. However, proper installation is required for this rating. To ensure that the camera is as water resistant as possible, follow these tips: •...

  • Page 5: Power Connection

    Using the 14-pin connector, installers can connect 4 digital alarm inputs and 2 digital alarm outputs. The alarm pins are serviceable for connecting alarm input and output devices such as sensors, sirens, or flashing lights to the surveillance https://answers.openeye.net/Install/Hardware_and_OS/Cameras/OpenEye_Cameras/OE-C8213/OE-C8213_Hardware_Manu… Updated: Sun, 26 May 2024 22:25:20 GMT...
  • Page 6 RS-485 D+ RS-485 D- Alarm IN 4 Alarm IN 3 Alarm IN 2 Alarm IN 1 Ground (Alarm I/O & RS-485) Features • 3MP (2048x1536) Maximum Resolution • 30 IPS https://answers.openeye.net/Install/Hardware_and_OS/Cameras/OpenEye_Cameras/OE-C8213/OE-C8213_Hardware_Manu… Updated: Sun, 26 May 2024 22:25:20 GMT Powered by...

  • Page 7: Box Contents

    • Sunshield Box Contents OpenEye C8213 cameras come with screws and rubber washers, 3-Pin power terminal block, threaded mount adapter, 14-pin alarm I/O terminal block, and a torx tool. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.

  • Page 8: Related Links

    Torx Tool 14-Pin Alarm I/O Terminal Block 3-Pin Power Terminal Block Threaded Mount Adapter Related Links OE-C8213 OE-C8213 Quick Start Guide Network Camera Manager https://answers.openeye.net/Install/Hardware_and_OS/Cameras/OpenEye_Cameras/OE-C8213/OE-C8213_Hardware_Manu… Updated: Sun, 26 May 2024 22:25:20 GMT Powered by...
