OpenEye OE-C8103 Quick Start Manual

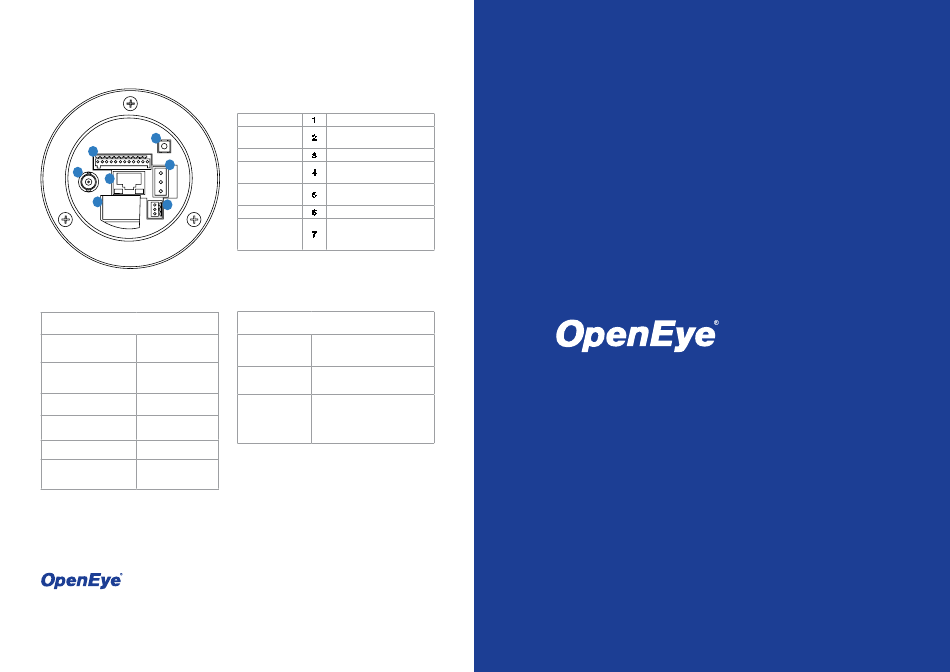

CONNECTIONS
24vAC / PoE+
2
1
5
3
4
7
6

PRODUCT FEATURES

Camera
Maximum Resolution
3M (2048x1536)
Frame Rate at 25/30 @ 3M H.264
Maximum Resolution IPS
Total Streams Quad Streaming
ONVIF Profile S
ONVIF
Compliant
Day/Night True Day/Night
Digital Wide Dynamic
Wide Dynamic Range
Range
23221 E Knox Ave
Liberty Lake, WA 99019
509.232.5261
ww.openeye.net
Alarm I/O 1 Alarm I/O connections
Reset the camera to the
Reset Button 2
factory default
BNC 3 For analog video output
For network and PoE+
RJ-45 4
connections
Power supply to camera for
Power (24vAC) 5
non-PoE networks
Audio I/O 6 Audio I/O connections
Insert the microSD card into
MicroSD Card
7 the card slot to store videos
Slot
and snapshots
Environmental and Power
24W (OE-C8103)

Power

Consumption
59.5W with heater (OE-C8203)
802.3at PoE+ (60W)/ AC 24V
Input Voltage
± 10%
0 ~ 40 °C (32~104 °F) (OE-
C8103)
Operating
Temperature
-40 ~ 50 °C (-40~122 °F) (OE-
C8203)
Copyright ©2015 OpenEye.
All Rights Reserved. Information contained in this document
is subject to change without prior notice. OpenEye does
its best to provide accurate information but cannot be held
responsible for typos or mistakes.
QUICK START GUIDE
OE-C8103 / OE-C8203 | HD IP PTZ Dome
Camera
This quick start guide is a reference for users to install and operate the HD
PTZ dome camera and only provides basic information on the camera's
settings and operation. Before attempting to connect, configure and operate
the dome camera, please read the user manual thoroughly.
