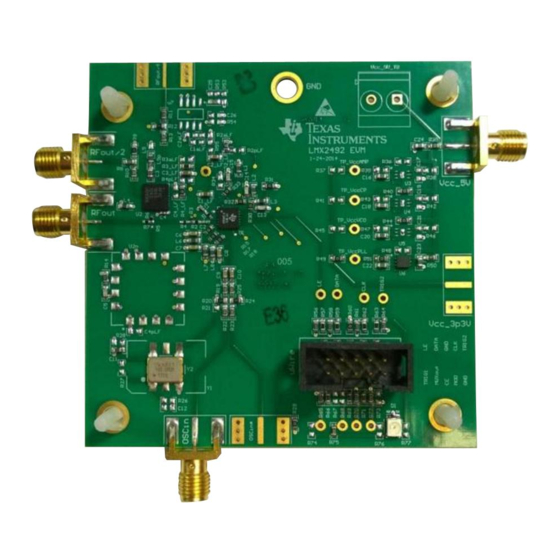

Ultra low noise frequency synthesizer with integrated vco evaluation board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LMX2492 Evaluation Instructions
Ultra Low Noise Frequency Synthesizer with
Integrated VCO Evaluation Board Operating
Instructions
User's Guide
Literature Number: SNAU160C
March 2014 – Revised November 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMX2492 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments LMX2492

Summary of Contents for Texas Instruments LMX2492

  • Page 1 LMX2492 Evaluation Instructions Ultra Low Noise Frequency Synthesizer with Integrated VCO Evaluation Board Operating Instructions User's Guide Literature Number: SNAU160C March 2014 – Revised November 2014...

  • Page 2: Table Of Contents

    ......................Board Layers Stackup ........................Bill of Materials ..................Typical Performance Measurements ......................PLL Phase Noise ......................Ramping Example .......................... Revision History Contents SNAU160C – March 2014 – Revised November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 3 User's Guide SNAU160C – March 2014 – Revised November 2014 Evaluation Board Operating Instructions SNAU160C – March 2014 – Revised November 2014 Evaluation Board Operating Instructions Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 4: Evaluation Board Setup

    1.1.1 VCO Outputs The LMX2492 operates at 10 GHz, but this can be a problem for some test equipment. If it is, use the VCO/2 output or the VCO/4 output. The VCO/4 output is powered down by default, but can be configured if necessary.

  • Page 5: Evaluation Board Configuration

    R3_LF 150 Ω R4_LF 0 Ω Charge Pump Gain 3.1 mA Phase Detector Frequency 100 MHz OSCin Frequency 100 MHz SNAU160C – March 2014 – Revised November 2014 Evaluation Board Configuration Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 6: Codeloader Software Settings

    Note that position 3 is MUXout, which can be used for readback. In order to do this, the MUXout pin needs to be programmed to Readback and also resistor R68 needs to be placed. Figure 2-1. LMX2492 Port Setup Evaluation Board Configuration SNAU160C –...

  • Page 7: Device Selection

    CodeLoader Software Settings www.ti.com 2.2.2 Device Selection Go to “Select Device” → “PLL–Fractional” → LMX2492 Figure 2-2. Part Selection SNAU160C – March 2014 – Revised November 2014 Evaluation Board Configuration Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 8: Bits/Pins Tab And Restoring The Default Configuration

    To restore the part to the original software configuration, on can select the default mode as shown. Figure 2-3. Restoring Default Mode Evaluation Board Configuration SNAU160C – March 2014 – Revised November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 9: Registers Tab

    Once this is done entire registers can be read, or a specific field can be typed in to read the value. Realize that some fields of the LMX2492 are read only and therefore might not be the same as written to.

  • Page 10: Pll Frequency Tab

    CodeLoader Software Settings www.ti.com 2.2.5 PLL Frequency Tab Verify your “PLL” Tab looks like below: Figure 2-5. PLL Frequency Tab Evaluation Board Configuration SNAU160C – March 2014 – Revised November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 11: Ramp Generator Tab

    Only modify values in "Yellow" regions • Click and unclick “RST” to clear the accumulator after modifying a row in Ramps SNAU160C – March 2014 – Revised November 2014 Evaluation Board Configuration Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 12: Schematic

    SNAU160C – March 2014 – Revised November 2014 Schematic Refer to Chapter 5 for actual component values. Also realize that not all components are placed on this board. Schematic SNAU160C – March 2014 – Revised November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 13: Board Layers Stackup

    LMX2492.GTL Top Layer LMX2492.GP1 GND Plane LMX2492.G1 Power LMX2492.GBL Bottom Layer Top Copper - 1oz thick [LMX2492.GTL] Ro4003 (Er=3.38) CONTROLLED THICKNESS OF 16 MILS THICK GND Layer [LMX2492.GP1] FR4 (Er = ~4.6) 18 MILS THICK Power Layer [LMX2492.G1] FR4 (Er = ~4.6) 22 MILS THICK Bottom Copper - Thermal Relief [LMX2492.GBL]...

  • Page 14: Bill Of Materials

    RES, 10 ohm, 5%, 0.1W, 0603 Vishay-Dale CRCW060310R0JNEA R56, R58, R61, R64, R65, R70, RES, 12k ohm, 5%, 0.1W, 0603 Vishay-Dale CRCW060312K0JNEA Bill of Materials SNAU160C – March 2014 – Revised November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 15 Texas Instruments LP5900SD-3.3 Requires No Bypass Capacitor, 6-pin LLP uWire Connector 52601-G10-8LF OSC 100.0000MHZ 3.3V +- Connor-Winfield CWX813-100.0M 25PPM SMD SNAU160C – March 2014 – Revised November 2014 Bill of Materials Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 16: Typical Performance Measurements

    The above figure shows the phase noise in default for mode. Note that this is ½ the VCO frequency as it was observed on the Fout/2 output. Typical Performance Measurements SNAU160C – March 2014 – Revised November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 17 At about 260 kHz, the phase noise is -113.1 dBc/Hz, which is actually being degraded by 0.5 dB by the 1/f noise. This implies a figure of merit of -227.2 dBc/Hz. SNAU160C – March 2014 – Revised November 2014 Typical Performance Measurements Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 18 -170 1.E+02 1.E+03 1.E+04 1.E+05 1.E+06 1.E+07 Offset (Hz) The phase noise of the LMX2492 does vary somewhat with tuning voltage with the best performance typically near lower tuning voltages. Table 6-1. Phase Noise FVCO Vtune 9000 0.04 9100 0.18 9200 0.338...

  • Page 19: Ramping Example

    Below is an example that can be used to generate the waveform shown later in this document. Figure 6-4. Setup for Ramping Example Figure 6-5. Generated Waveform at VCO/2 Output SNAU160C – March 2014 – Revised November 2014 Typical Performance Measurements Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 20: Revision History

    Changes from B Revision (October 2014) to C Revision ....................Page ..........• Changed Updated Schematic *Again* due to curruption. Now using a GIF format. Revision History SNAU160C – March 2014 – Revised November 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
