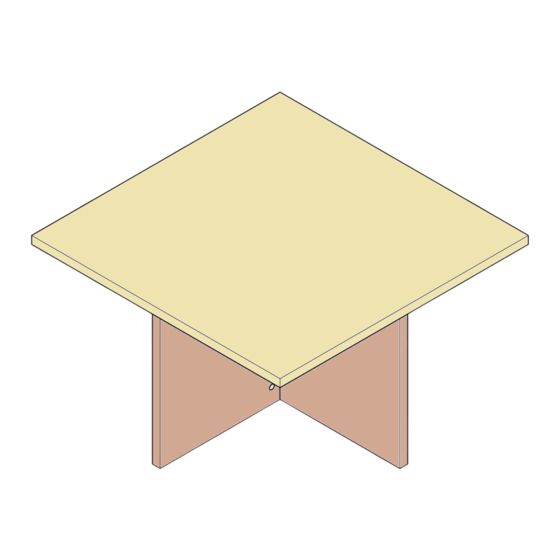

Ohio Ottoman Black Coffee Table

143/6563

- Please keep for future reference

Dimensions

Width - 79cm

Depth - 79cm

Height - 43.5cm

Important

- Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 1 - 25/10/13

Table of Contents

Do you have a question about the Ohio Ottoman 143/6563 and is the answer not in the manual?

Page 1 Ohio Ottoman Black Coffee Table Assembly Instructions 143/6563 - Please keep for future reference Dimensions Width - 79cm Depth - 79cm Height - 43.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 25/10/13...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Do not discard any of the • Assemble the item as close to • We do not packaging until you have its final position (in the same recommend the checked that you have all the room) as possible.
Page 3 Components - Parts If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the parts listed below Short Base Panel x 2 Table Top Long Base Panel (38 x 40.5 x 2.5cm) (79 x 79 x 2.5cm) (78.5 x 40.5 X 2.5cm) Components - Fittings...
Page 4 Assembly Instructions Step 1 Base panels assembly Insert bolts into holes on long base panel as shown and tighten using a crosshead screwdriver. Insert long wooden dowels into holes on short base panels Insert cam locks into holes on short base panels Attach the short base panels...
Page 5 Assembly Instructions Step 2 Attaching the table top Place the table top upside down on a flat protected surface. Insert bolts into holes on the table top shown and tighten using a crosshead screwdriver. Insert short wooden dowels into holes on long &...
