2.2 Using the LIN-interface

The UART of the MB89210series supports the LIN-protocol. A LIN-transceiver is available

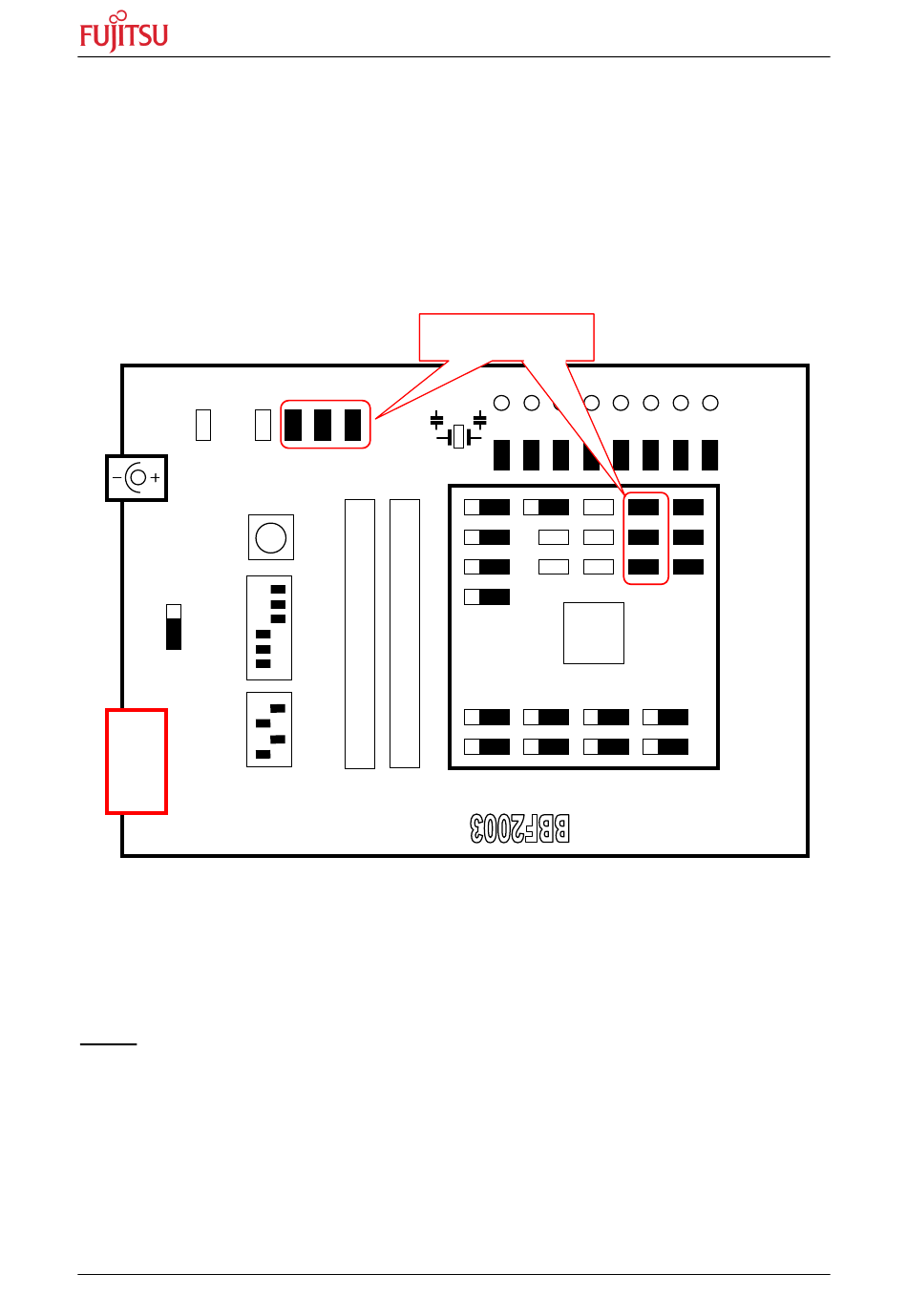

on the evaluation board. Set the jumpers shown below in order to use the LIN-interface
The jumpers LUO, LUI and LUC have to be shortcut on the daughter board, as well as the
jumpers LIN-RxD, LIN-TxD and LNP on the main board.
Do not connect the jumper LMP of the main board, because the MB89210series does not
support the master bus-mode.
3V
SW3
5V
SW2
Take care to enable the on board LIN-transceiver by setting the signal LUC to 'high' level.
The signal LUC is controlled by port P17:
NOTE:
LIN-interface and RS232-interface cannot be used at the same time, because the
MB89210series supports only one UART that can be directed either to the LIN- or to the
RS232-interface!
AN-890023-10
Getting started
Chapter 2 Evaluation system configuration
Set these jumpers in order Set these jumpers in order
to use the LIN UART to use the LIN UART
16
15
DDR1_D17 = 1;
PDR1_P17 = 1;
- 8 -
// enable LIN-transceiver
// set Jumper LUC
