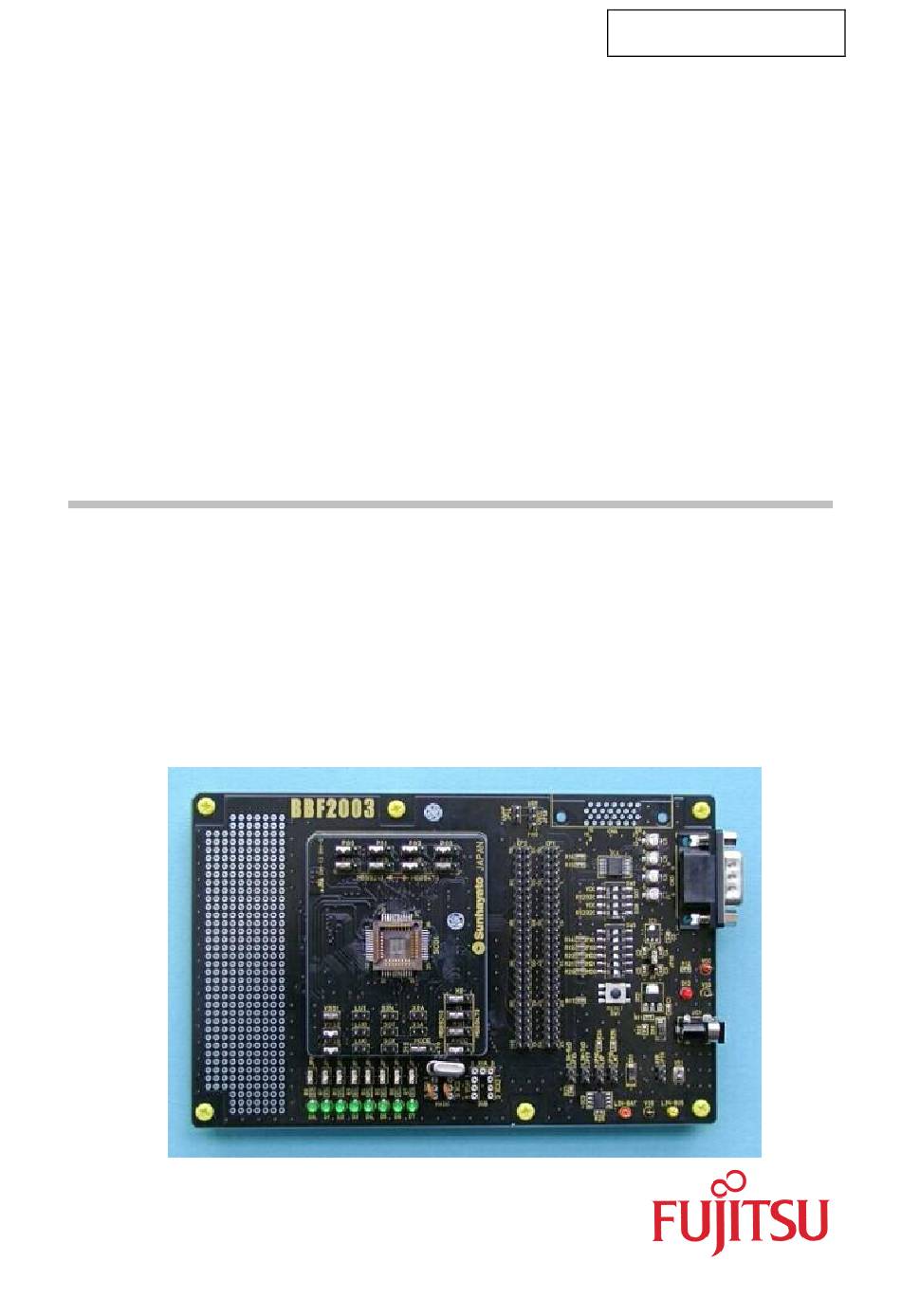

- Page 1 Fujitsu Microelectronics Europe FMEMCU-AN-890023-10 Application Note F²MC-8L FAMILY 8-BIT MICROCONTROLLER MB89210 GETTING STARTED APPLICATION NOTE...
-
Page 2: Revision History
Getting started Revision History Revision History Date Issue 06.08.2004 V1.0, HWe, First release This document contains 13 pages. AN-890023-10 - 2 - © Fujitsu Microelectronics Europe GmbH... -
Page 3: Warranty And Disclaimer
Product or parts thereof, if the Product is returned to Fujitsu Microelectronics Europe GmbH in original packing and without further defects resulting from the customer´s use or the transport. -
Page 4: Table Of Contents
2 EVALUATION SYSTEM CONFIGURATION..............6 Optional Sub-D9 connector for RS232-UART............7 Using the LIN-interface.................... 8 3 SOFTWARE........................9 New project ......................9 Flash programming ....................11 3.2.1 Hardware ....................11 3.2.2 Software ....................12 AN-890023-10 - 4 - © Fujitsu Microelectronics Europe GmbH... -
Page 5: Introduction
Package conversion adapter MQP-48C-P02 --> FPT-30P-M02 48QF2-48QF2-8L Package conversion adapter MQP-48C-P02 --> FPT-48P-M13 1.2.4 Flash programmer software The freeware “8bit Fujitsu Flash MCU Programmer” version V01L08 or newer can be downloaded from our webpage: http://www.fme.gsdc.de/products/utilitie.htm © Fujitsu Microelectronics Europe GmbH... -
Page 6: Evaluation System Configuration
LEDs on the main board want to be used) to position 89210 and close the jumpers VSS1, VSS2, AVSS. Use the probe cable MB2144-203 to connect the evaluation system to the emulator-system. AN-890023-10 - 6 - © Fujitsu Microelectronics Europe GmbH... -
Page 7: Optional Sub-D9 Connector For Rs232-Uart
Set Dip-SW2 to (1:ON, 2:OFF, 3:ON, 4:OFF). Handwire SOT and LUO Handwire SIN and LUI If the RS232-tranceiver wants to be used … Solder optional male-SUB-D9 connector in order to use RS232-UART-transceiver. Use 1:1 cable for PC-connection! © Fujitsu Microelectronics Europe GmbH - 7 - AN-890023-10... -
Page 8: Using The Lin-Interface
// set Jumper LUC NOTE: LIN-interface and RS232-interface cannot be used at the same time, because the MB89210series supports only one UART that can be directed either to the LIN- or to the RS232-interface! AN-890023-10 - 8 - © Fujitsu Microelectronics Europe GmbH... -
Page 9: Software
Enter ‘my_application’-folder and rename ‘template.prj‘ into ‘my_application.prj‘ and ‘template.wsp‘ into ‘my_application.wsp’ Edit ’my_application.prj’ and rename the symbol ‘template’ into ‘my_application’. Edit ‘my_application.wsp’ and rename the symbol ‘template’ into ‘my_application’. my_application.wsp my_application.prj © Fujitsu Microelectronics Europe GmbH - 9 - AN-890023-10... - Page 10 Vector.c : Vector table • Main.c Your application Compile & build your project. The generated MHX-file can be flashed into the Flash-device; the ABS-file can be used for emulation and simulation. AN-890023-10 - 10 - © Fujitsu Microelectronics Europe GmbH...
-
Page 11: Flash Programming
PC TxD via RS232 transceiver VSS (for programming only) VCC (for programming only) 8, 19, 43 X0, X1 10, 9 Crystal (e.g. 10MHz) Pull-up resistor to high, /RST Switch-button to VSS © Fujitsu Microelectronics Europe GmbH - 11 - AN-890023-10... -
Page 12: Software
Getting started Chapter 3 Software 3.2.2 Software Install the latest version of the 8bit Fujitsu Flash MCU Programmer, which should be version V01L08 or newer. Select the Target Microcontroller [MB89F217] and the crystal frequency depending on your external crystal [e.g.: 10MHz]. - Page 13 Getting started Chapter 3 Software © Fujitsu Microelectronics Europe GmbH - 13 - AN-890023-10...
