Summary of Contents for Fieldmann FZN 70405-0
- Page 1 FZN 70405-0...
- Page 2 English ....................................5–18 Čeština ..................................... 19–32 Slovenčina ..................................33–46 Magyarul ..................................46–60 Polski ....................................61–74 FZN 70405-0...

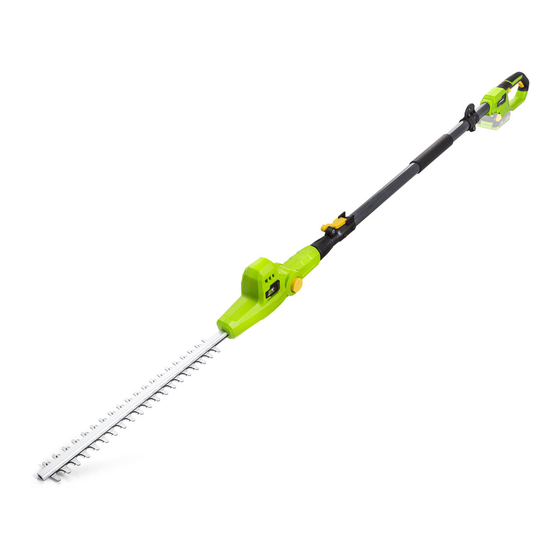

- Page 3 POLE HEDGE TRIMMER USER'S MANUAL...
- Page 4 FZN 70405-0...
-
Page 5: Table Of Contents
Table of Contents Pole Hedge Trimmer USER'S MANUAL TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ........................6 2. SYMBOLS ................................... 7 3. SAFETY INSTRUCTIONS ............................... 9 4. MACHINE DESCRIPTION AND PACKAGE CONTENT ................13 5. OPERATION ...................................14 6. MAINTENANCE ................................15 7. STORAGE ..................................15 8. -
Page 6: Important Safety Instructions
The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZN 70405-0... -
Page 7: Symbols
Symbols 2. SYMBOLS WARNING! Read the Instruction Manual attentively prior to use. Protect the tool from the damp and never expose it to rain! Keep other persons in distance! WARNING! When operating the device, take care that no other persons are nearby (safe distance: 15m). - Page 8 Symbols Wear work gloves. Beware of falling branches. Wear work shoes. WARNING! When operating the device, take care that any power lane is not close (safe distance: 10m). FZN 70405-0...
-
Page 9: Safety Instructions
Safety instructions 3. SAFETY INSTRUCTIONS Attention! ATTENTION! For safety reasons, the hedge trimmer may not be operated by persons under 16 years of age and by persons not familiarized with information contained in this manual. Persons with reduced mental or physical abilities may operate the hedge trimmer only if they are under supervision of a responsible person or have been trained by a qualifi... - Page 10 Use of the power tool for operations other than those for which the power tool is intended could result in hazardous situations. FZN 70405-0...
- Page 11 Safety instructions SERVICE Have your power tool serviced by a qualifi ed repair person using only original replacement parts. This will ensure that the safety of the power tool is maintained. SAFETY INSTRUCTIONS WHEN WORKING WITH HEDGE TRIMMER Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving.
- Page 12 MAINTENANCE AND STORAGE Attention! DANGER OF INJURY! Do not touch the cutting blades. Attention! After completion or interruption of work, lift the blade scabbard. Keep all nuts and bolts properly tightened to ensure safe operation of the tool. FZN 70405-0...
-
Page 13: Machine Description And Package Content
Machine description and package content 4. MACHINE DESCRIPTION AND PACKAGE CONTENT Figure 1: Hedge trimmer 1. Cutting tool 2. Safety button for setting the cutting angle 3. Front handle 4. Eyelet for attaching the shoulder strap 5. Rear handle 6. Safety button for on / off switch 7. -
Page 14: Operation
Hold the hedge trimmer at an angle of 5–10 ° to the hedge to create a straight cut. Cut the hedge trapezoidal.This prevents discoloration of the lower hedge area due to lack of light. Cut the top edges of the hedge slightly round. FZN 70405-0... -
Page 15: Maintenance
Operation | Maintenance | Storage Cut in multiple passes when heavy pruning is required. If necessary, tension a guide if you want to cut the hedge evenly. Trim the young hedge plants to the desired shape.The main shoot should not be damaged until the hedge has reached the desired height.All other shoots can be cut in half. -
Page 16: Technical Data
Technical data 8. TECHNICAL DATA Model FZN 70405-0 Rated voltage 20 V Bar Length 420 mm Cutting Dia. 16 mm Blade speed 2 800/min Max operation time 45 min (2Ah), 90 min (4Ah) ACCESSORIES Item number Accessory FDUZ 79020 Battery pack 2 Ah... -
Page 17: Disposal
Disposal 9. DISPOSAL The machine, rechargeable batteries, accessories and packaging should be sorted for environmentalfriendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. -
Page 18: Declaration Of Conformity
Declaration of conformity 10. DECLARATION OF CONFORMITY FZN 70405-0...
