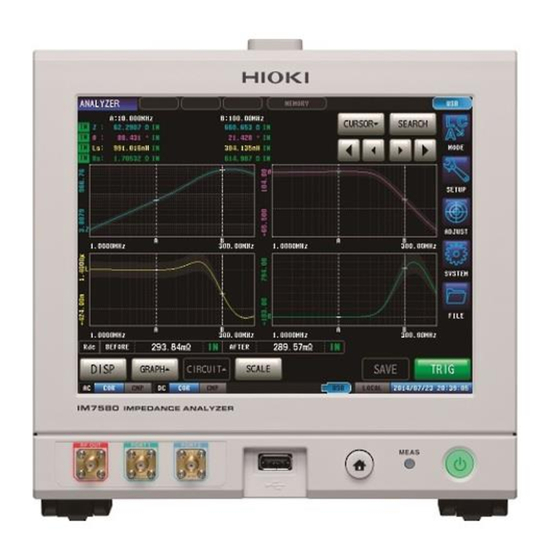

- Page 1 Communication Instruction Manual IM7580A IM7580A-1 IM7580A-2 IM7581 IM7581-01 IM7581-02 IM7583 IM7583-01 IM7583-02 IM7585 IM7585-01 IM7585-02 IMPEDANCE ANALYZER 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Table Of Contents
Contents Contents Introduction....................1 Safety Information ..................1 Chapter 1 Specifications 1.1 RS-232C Specifications ..............3 1.2 GP-IB Specifications ...............4 1.3 USB Specifications .................4 1.4 LAN Specifications ................4 Chapter 2 Connection and Setting 2.1 Overview of Communication ............5 2.2 USB Settings and Connection ............7 ... -
Page 3: Introduction
This instruction manual provides details on the communication interfaces of the IM7580A series, IM7581 series, IM7583 series and IM7585 series Impedance Analyzer. In this document, the "instrument" means the IM7580A series, IM7581 series, IM7583 series and IM7585 series. Safety Information This manual contains information and warnings essential for safe operation of the instrument and for main- taining it in safe operating condition. -
Page 4: Chapter 1 Specifications
RS-232C Specifications Chapter 1 Specifications 1.1 RS-232C Specifications Communication method: Full duplex Transmission Method Synchronous method: Start-stop synchronization Transmission Speed 9600 bps, 19200 bps, 38400 bps, 57600 bps Data Bits 8 bits Parity None Stop bit 1 bits Message terminator CR+LF, CR (delimiter) Software (XON/XOFF control) -
Page 5: Gp-Ib Specifications
1.2 GP-IB Specifications GP-IB Specifications Supports all source handshake functions. Supports all acceptor handshake functions. Supports standard talker functions. Supports serial poll functions. Talk only mode is not supported. Supports the talker cancel function by MLA (My Listen Address). Supports standard listener functions. Listener only mode is not supported. -
Page 6: Chapter 2 Connection And Setting
Overview of Communication Connection and Chapter 2 Setting 2.1 Overview of Communication You can control the instrument with communication commands from a computer via the USB, GP-IB, RS- 232C and LAN interfaces. There are the following four communication methods. To enable communication, the communication condi- tions need to be set on the instrument. - Page 7 Overview of Communication Screen Displayed while Setting Interfaces When you set an interface, the icon for the set interface is displayed on the right side of the screen. When USB is set When GP-IB is set When RS-232C is set When LAN is set 1.888.610.7664 www.calcert.com...
-
Page 8: Usb Settings And Connection
Before connecting the instrument to the computer, install the USB driver. The USB driver can be downloaded from the bundled CD, or our web site.(http://www.hioki.com) The USB driver is compatible with the Windows Vista (32-bit, 64-bit version), Windows 7 (32-bit, 64-bit version), Windows 8 (32-bit, 64-bit version) and Windows 10 (32-bit, 64-bit version) operating systems. -
Page 9: Connecting The Usb Cable
USB Settings and Connection USB Setting Select the terminator setting. CR+LF Press to confirm the setting. Connecting the USB Cable Connect a USB cable (commercially available USB cable) to the USB port of the instrument. USB interface port of computer Type B USB cable (commercially available product) -
Page 10: Lan Settings And Connection
LAN Settings and Connection 2.3 LAN Settings and Connection LAN Settings You can perform command control using the TCP/IP protocol. Set the instrument to match your network environment in advance. • Make these settings before connecting to a network. Changing settings while connected can duplicate IP addresses of other network devices, and incorrect address information may other- wise be presented to the network. - Page 11 LAN Settings and Connection Procedure You can configure the setting from any of mode and mode. LCR Measurement Screen Interface Settings LAN Settings Press LAN Settings Select the IP address. 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 12 LAN Settings and Connection IP address Settings to set the IP address. Press to confirm the setting. LAN Settings Select the subnet mask. Subnet mask Settings to set the subnet mask, and press to confirm the setting. Any of the following 30 subnet masks can be set for the instrument. 128.000.000.000 255.128.000.000 255.255.128.000...
- Page 13 LAN Settings and Connection LAN Settings Select the default gateway. If the default gateway does not need to be set, for example, when connecting the instrument and computer on a one-to-one basis using a cross ca- ble, leave this set to OFF. Default gateway Settings to set the default gate- way.
- Page 14 LAN Settings and Connection Port number Settings to set the port number to use for communication commands. Settable range : 1024 to 65535 Press to confirm the setting. LAN Settings Select the terminator setting. CR+LF Press to confirm the setting. 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 15: Connecting A Lan Cable
• Straight-through Cat 5, 1000BASE-T-compliant Ethernet cable (up to 100 m, commercially available). For 100BASE/10BASE communication, a 100BASE-TX/10BASE-T-compliant cable may also be used. • Hioki 9642 LAN Cable (option) (A cross adapter cannot be used.) When connecting one instrument to a single computer (prepare one of the following): •... -
Page 16: Gp-Ib Connection And Settings
GP-IB Connection and Settings (when the Z3000 is connected) 2.4 GP-IB Connection and Settings (when the Z3000 is connected) Connecting the GP-IB Cable Connect the GP-IB cable to the GP-IB connector. Recommended cable: 9150-02 GP-IB connection cable (2 m) Setting GP-IB Procedure You can configure the setting from any of mode and... - Page 17 GP-IB Connection and Settings (when the Z3000 is connected) GPIB Setting Press GPIB Setting to set the GP-IB address. Select the terminator setting. LF with EOI LF with CR+EOI Press to confirm the setting. 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 18: Rs-232C Connection And Settings (When The Z3001 Is Connected)
RS-232C Connection and Settings (when the Z3001 is connected) 2.5 RS-232C Connection and Settings (when the Z3001 is connected) Connecting the RS-232C Cable Connect the RS-232C cable to the RS-232C connector. (Recommended cable: 9637 RS-232C cable) 1 2 3 4 5 Male 9-pin D-sub #4-40 attaching screws 6 7 8 9... -
Page 19: Setting Rs-232C
RS-232C Connection and Settings (when the Z3001 is connected) Setting RS-232C Procedure You can configure the setting from any of mode and mode. LCR Measurement Screen Interface Settings RS-232C Settings Press RS-232C Settings Select the baud rate setting. Select the handshake setting. No flow control Software (XON/XOFF control) Select the terminator setting. -
Page 20: Remote Mode
Remote Mode 2.6 Remote Mode When you connect a device to an interface and start communication, the mode becomes remote mode (remote operation state) and the keys on the LCD are disabled. Remote Mode State All of the keys except are disabled. -
Page 21: Appendix
USB, it will be recognized as a virtual COM port on the computer. Device Manager starts. Click Check Check the COM number to the right of "HIOKI USB Device" in the [Ports (COM & LPT)] list. The procedure to start Device Manager differs depending on the version of the Windows operat- ing system.
