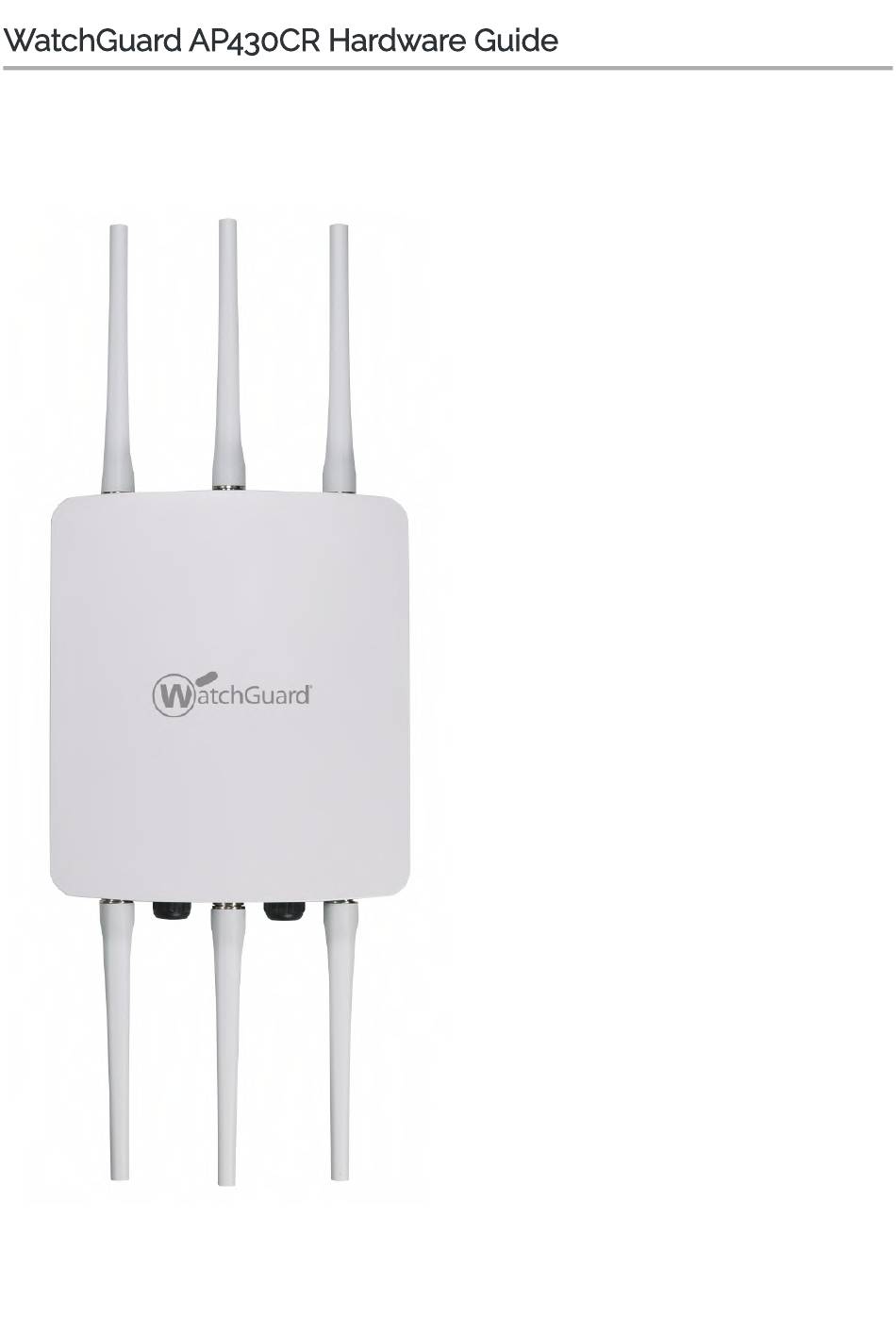

WatchGuard AP430CR Hardware Guide
The WatchGuard AP430CR is a secure wireless access point designed for indoor/outdoor rugged deployment
conditions and built with an industrial-rated IP67 enclosure.
The AP430CR features a Wi-Fi 6 802.11ax 2x2 2.4 GHz dual radio and 4x4 5 GHz dual concurrent radio that
support up to 1148 Mbps data rate on the 2.4 GHz band and 2402 Mbps on the 5 GHz band.
The AP430CR also has a third 2x2 dual band radio for security scanning, and an integrated Bluetooth
(BLE) radio.
Power is provided by a PoE+ (Power over Ethernet) power source.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP430CR and is the answer not in the manual?

Questions and answers

Related Manuals for Watchguard AP430CR

Summary of Contents for Watchguard AP430CR

  • Page 1 IP67 enclosure. The AP430CR features a Wi-Fi 6 802.11ax 2x2 2.4 GHz dual radio and 4x4 5 GHz dual concurrent radio that support up to 1148 Mbps data rate on the 2.4 GHz band and 2402 Mbps on the 5 GHz band.

  • Page 2: Access Point Management

    You can manage WatchGuard Wi-Fi 6 access points with WatchGuard Cloud. WatchGuard Cloud delivers a simplified platform for Wi-Fi management to easily deploy, configure, and report on your wireless networks. For quick start instructions on how to set up your access point with WatchGuard Cloud, go to: watchguard.com/start About Your Hardware Hardware Specifications...
  • Page 3 Hardware Description MTBF 275,523 hours (Mean Time Between Failures) Dimensions 267.1 mm x 217.65 mm x 53.7 mm (10.5” x 8.6” x 2.1”) Weight 1.759 kg (3.87 lbs)

  • Page 4: Environmental Requirements

    Environmental Requirements To safely install your WatchGuard access point, we recommend that you: Install the device per local regulations Make sure the device has adequate clearance for air flow and cooling Other environmental requirements: Operating Temperature -30°C to 60°C (-22°F to 140°F)

  • Page 5: Hardware Description

    Hardware Description Bottom Panel Connections 2.4/5GHz Antenna connectors for the dual band Wi-Fi radios. 2.4/5GHz Scan Antenna connector for the dual band security scanning radio. LAN 1 (POE+) The LAN 1 port is a 5 GbE port that connects the access point to a wired LAN connection through a switch or hub.

  • Page 6: Top Panel Connections

    The reset button and the LAN 2 port are discontinued in hardware revision M and higher. You can reset the access point from the command line interface (CLI). For more information, go to Access Point Command Line Interface. To reset the access point to factory-default settings: Remove the weatherproof connector from the LAN 2 port.

  • Page 7: Side Panel Connections

    WatchGuard Cloud. The access point briefly passes through each stage until the device is connected to WatchGuard Cloud and shows a solid blue LED indicator. If the access point remains in the same state for a long period of time without a solid blue LED indicator status, there might be a network issue, activation or feature key issue, or a problem with your WatchGuard Cloud account.
  • Page 8 / bypass list to enable the access point to receive a feature key from WatchGuard servers. On the WatchGuard Firebox, this is enabled by default for cloud- managed Fireboxes in WatchGuard Cloud. Use the access point Web UI or command line interface (CLI) to check the feature key status, download a feature key, and run diagnostic tests.
  • Page 9 Mount and Connect the Access Point Your package includes these wall mount and pole mount accessories: 2 x Pole mount clamps 4 x Wall mount screws 8 x Wall and pole mount screws Ground screw The MAC address and serial number of your access point are printed on a label on the back of the device.

  • Page 10: Wall Mount Installation

    Wall Mount Installation Use the supplied wall-mounting accessories to install the access point on a wall. 1. Attach the access point to the wall mount bracket with the included screws. 2. Affix the access point and mounting bracket to the wall with the included screws.

  • Page 11: Pole Mount Installation

    Pole Mount Installation Use the supplied pole-mounting accessories to install the access point on a pole. 1. Attach the wall mount bracket to the access point with the included screws. 2. Attach the pole mount bracket to the wall mount bracket and access point with the included screws. 3.
  • Page 12 5. Fasten the screws and make sure the access point is firmly attached to the pole.

  • Page 13: Antenna Installation

    Antenna Installation WatchGuard dual band omnidirectional dipole antennas (WG9004) are sold separately in packs of two antennas. The device must have antennas connected for full range and functionality.   The access point requires a total of six antennas (two antennas for each radio band, and two antennas for the dual band scanning radio).

  • Page 14: Connect The Ground Wire

    Connect the Ground Wire To make sure your access point is safely protected from electrical events, we recommend you ground the access point according to your local regulations. Use the included screw to attach a ground wire to the ground connector on the back of the access point and to a nearby grounding point.

  • Page 15: Connect The Access Point

    Connect the Access Point Plug one end of the Ethernet cable from your network into the LAN 1 (PoE+) port on the bottom panel of the access point. Make sure the other end of the Ethernet cable is connected to your network through a hub, switch, or injector with PoE+ (802.3at) power enabled.
  • Page 16 How to Assemble the Weatherproof Connector Use these instructions to connect the Ethernet cable to the access point through the weatherproof connector.
  • Page 17 How to Disassemble the Weatherproof Connector Use these instructions to disconnect the Ethernet cable from the weatherproof connector.

  • Page 18: Ethernet Power Injector (Optional)

    This device complies with IEEE 802.3at/af PoE specifications. Do not use any PoE adapters that are not IEEE 802.3at/af compliant as they may damage your device. To connect an Ethernet Power Injector to the WatchGuard access point: 1. Plug the Ethernet Power Injector into an AC power source.
  • Page 19 Ethernet Power Injector Specs Output Power 30W maximum Ethernet Interfaces LAN: RJ-45 for 10/100/1000/2500 Mbps data POE: RJ-45 for 10/100/1000/2500 Mbps data and power Voltage: Pin4, 5:54V, Pin7, 8:Return Indicator Power: Green Temperature Operating: 0 - 40°C (32 - 104°F) Storage: -30 - 80°C (-22 - 176°F) Humidity 5% - 90% (Operating and storage)

  • Page 20: Safety Warning

    (EMI) requirements, you must make sure the power source is connected to earth ground before you connect power to the access point. Disclaimer WatchGuard shall not be held liable if the end user alters, modify, or repairs any WatchGuard hardware appliance. Avis Tous les produits WatchGuard sont conçus et testés pour répondre à...

  • Page 21: Hinweise Zur Sicherheit

    à la terre avant de connecter l'alimentation au point d'accès. Clause de non-responsabilité WatchGuard décline toute responsabilité si l'utilisateur final altère, modifie ou répare une appliance matérielle WatchGuard. HINWEISE ZUR SICHERHEIT Alle WatchGuard Produkte werden entwickelt und getestet, um strenge Sicherheitsanforderungen zuerfüllen.

  • Page 22: Descargo De Responsabilidad

    Descargo de Responsabilidad WatchGuard no será responsable si el usuario final altera, modifica o repara cualquier dispositivo de hardware de WatchGuard. FCC Certification (USA) This device complies with part 15 of the FCC Rules.
  • Page 23 ISED Certification (Canada) This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’...
  • Page 24 European Union (CE) This device complies with the essential requirements of the RED Directive 2014/53/EU. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the RED Directive 2014/53/EU: EN 62368-1:2014+A11:2017 Safety of Information Technology Equipment (ITE) EN 55024:2010+A1:2015 Immunity for Information Technology Equipment (ITE)
  • Page 25 Dieses Gerät ist auf die Verwendung in Innenräumen beschränkt, wenn es in den angegebenen Ländern im Frequenzbereich von 5150 bis 5350 MHz betrieben wird. Frequency Range Maximum Output Power (EIRP) 2412 - 2472 MHz 19.99 dBm 5500 - 5700 MHz 29.89 dBm In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to...
  • Page 26   Français Ce produit est conforme à la Directive 2014/53/UE. Hrvatski Ovaj proizvod je u skladu s Direktivom 2014/53/EU. Italiano Questo prodotto è conforme alla Direttiva 2014/53/EU. Latviski Šis produkts atbilst Direktīvai 2014/53/EU. Lietuvių Šis gaminys atitinka direktyvą 2014/53/ES. Malti Dan il-prodott huwa konformi mad-Direttiva 2014/53/UE.
  • Page 27 Brazil ANATEL Notice Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. CISPR 22 Statement Este produto não é apropriado para uso em ambientes domésticos, pois poderá causar interferências eletromagnéticas que obrigam o usuário a tomar medidas necessárias para minimizar estas interferências. This is a class A product.

  • Page 28: Japan Statement

    (BBP), Dibutyl phthalate (DBP) and Diisobutyl phthalate (DIBP). After June 4, 2015 the use of these materials are banned in new products sold in Europe. WatchGuard declares that all products listed herein comply with European Union RoHS Directive (RoHS 2.0 2011/65/EU and 2015/863/EU) requirements taking the following Annex III exemptions: [stating the list of exemptions, 6(c) ,7(a) ,7(C)-1].

  • Page 29: Weee Statement

    WEEE Statement WatchGuard asks that all our products to be recycled at the end of their current use to comply with local waste compliance requirements. WatchGuard supports the EU Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU). That means that WEEE may not be disposed as unsorted municipal waste but is to be collected separately.
  • Page 30 2. REMEDIES. If any Product does not comply with the WatchGuard warranties set forth in Section 1 above, WatchGuard will, following the receipt of the product you claim is defective and at its option, either (a) repair the Product, or (b) replace the Product with a like or similar product; provided, that you will be responsible for returning the Product and for all costs of shipping and handling.
  • Page 31 © 2023 WatchGuard Technologies, Inc. All rights reserved. WatchGuard and the WatchGuard logo are registered trademarks or trademarks of WatchGuard Technologies in the United States and other countries. Various other trademarks are held by their respective owners.  ...
