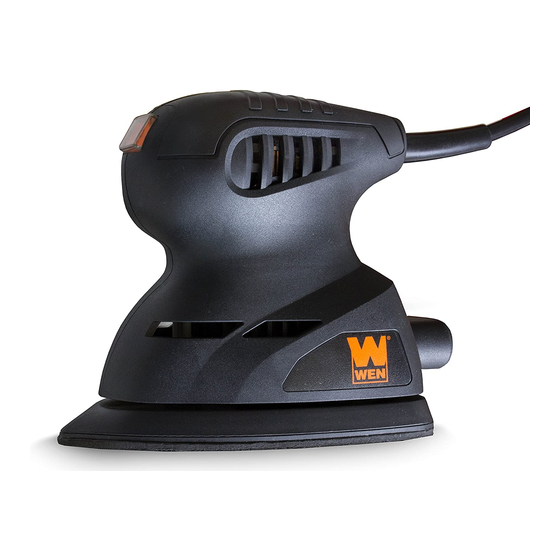

MODEL 6301
DETAILING
PALM SANDER
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6301 and is the answer not in the manual?

Questions and answers

Related Manuals for Wen 6301

Summary of Contents for Wen 6301

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Palm Sander Safety Warnings ................6 Electrical Warnings ..................7 BEFORE OPERATING Unpacking & Packing List .................8 Know Your Crown Stapler ................8 OPERATION & MAINTENANCE Operation ......................

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Palm Sander. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Palm Sander Safety Warnings

    PALM SANDER SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. PALM SANDER SAFETY WARNING! This product and the dust created 1.

  • Page 7: Electrical Warnings

    ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation.

  • Page 8: Before Operating

    KNOW YOUR HANDHELD PLANER TOOL PURPOSE Remove putty, round sharp edges, and create an ultra-smooth surface with your WEN Detailing Palm Sander. Refer to the following diagrams to become familiarized with all the parts and controls of your palm sander. The compo- nents will be referred to later in the manual for assembly and operation instructions.

  • Page 9: Operation & Maintenance

    OPERATION TOOL SET UP WARNING! To avoid injury from accidental startups, turn switch OFF and remove the plug from the power source outlet before making any adjustments or when you are finished using the tool. 1. Before installing sandpaper, make sure the hook and loop base of the sander is free of dust and dirt and that the sander is unplugged with the ON/OFF switch in the OFF (O) position.

  • Page 10: Maintenance

    OPERATION SANDPAPER SELECTION Choosing the right grit and material of sandpaper maximizes the quality of your sanded finish. Aluminum oxide, sili- con carbide, and other synthetic abrasives are best for power sanding as natural abrasives, such as flint and garnet, are too soft for economical use in power sanding.

  • Page 11: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replace- ments should only be performed by an authorized technician. For any questions, please contact our customer service at 1-(800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com. Problem Common Causes Solution...

  • Page 12: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase.
  • Page 13 EXPLODED VIEW & PARTS LIST MODEL DESCRIPTION MODEL DESCRIPTION 6301-001 Screw 6301-018 Carbon Brush 6301-002 Label 6301-019 Spring 6301-003 Right Housing 6301-020 Spring 6301-004 Switch 6301-021 Inner Pipe 6301-005 Switch Cover 6301-022 Rear Support 6301-006 Vacuum Adapter 6301-023 Sanding Base...

  • Page 14: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of one (1) year used for professional or commercial use.
  • Page 15 NOTES...
  • Page 16 THANKS FOR REMEMBERING V. 2020.09.02...
