Wen 6321 Owner's Manual

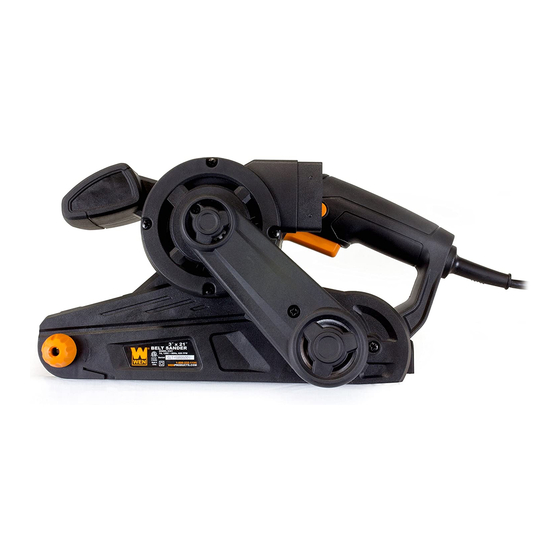

3 x 21 inch belt sander
Hide thumbs

Advertisement

Quick Links

Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
BELT SANDER
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
3 X 21 INCH
(M-F 8AM-5PM CST)
Model # 6321
bit.ly/wenvideo

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6321 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 6321

Summary of Contents for Wen 6321

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Electrical Information Know Your Sander Assembly and Adjustments Operation Maintenance Exploded View and Parts List Warranty TECHNICAL DATA Model Number: 6321 120 V, 60 Hz, 7A Motor: 820 feet per minute Speed: 3˝ x 21˝ Belt Size: Weight: 6 lbs...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.
  • Page 4 GENERAL SAFETY RULES 14. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit. DO NOT store anything above or near the tool. 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear.

  • Page 5: Electrical Information

    SPECIFIC RULES FOR THE SANDER 7. Unplug the tool before changing accessories. Accidental start-ups may occur if the tool is plugged in during an accessory change. Before plugging the tool back in, check that the trigger is OFF. 8. After changing sanderpaper, rotate the sanderpaper to make sure the sandpaper doesn’t hit any part of the tool. 9.
  • Page 6 ELECTRICAL INFORMATION GUIDELINES FOR USING EXTENSION CORDS REQUIRED GAUGE FOR EXTENSION CORDS AMPERAGE 25 ft. 50 ft. 100 ft. 150 ft. 18 gauge 16 gauge 14 gauge 12 gauge Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.

  • Page 7: Know Your Sander

    KNOW YOUR SANDER ON/OFF SWITCH TENSION LEVER DUST PORT TRACKING KNOB ASSEMBLY AND ADJUSTMENTS REMOVING OR INSTALLING ABRASIVE BELT WARNING: To avoid injury from accidental startups, turn switch OFF and remove the plug from the power source outlet before making any adjustments. 1.
  • Page 8 ASSEMBLY AND ADJUSTMENTS ADJUSTING BELT TRACKING The belt life will be increased by using the tracking adjustment. 1. Turn the tool upside down and hold it firmly with one hand. Then start the tool and observe the tracking of the sanding belt. 2.

  • Page 9: Maintenance

    To maintain peak efficiency of the motor, we recommend examining the brushes every two to six months. Only genuine WEN replacement brushes designed specifically for your tool should be used. CLEANING: Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not at- tempt to clean these components by inserting pointed objects through openings.

  • Page 10: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST...
  • Page 11 54 6321-054 Rotor 17 6321-017 Roller 55 6321-055 Bearing Cover 18 6321-018 Bearing 626-2Z 56 6321-056 Bearing 608-2RS 19 6321-019 Adjustment Washer 8 57 6321-057 Left Housing 20 6321-020 Fork 58 6321-058 Pinion Shaft Gear 21 6321-021 Wahser 6 59 6321-059 Bearing 627-2Z...
  • Page 12 LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
