Your new tool has been engineered and manufactured to WEN's highest standards for easy
operation, dependability and maximum user safety. When properly cared for, this product will
supply rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings
and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe,
reliable service.
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Detailing

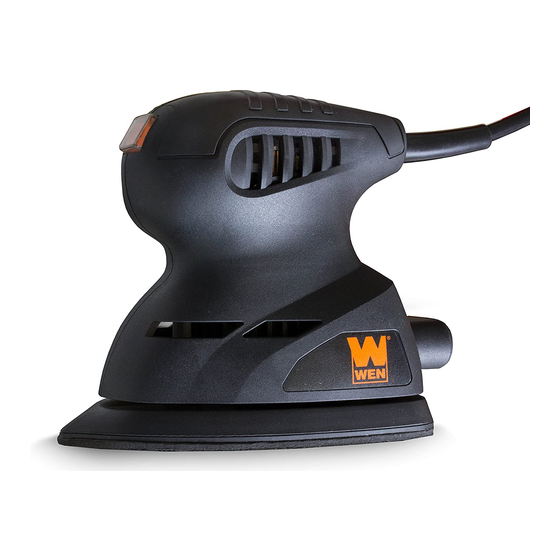

Palm Sander
(M-F 8AM-5PM CST)
Model # 6301
bit.ly/wenvideo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wen 6301

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for easy operation, dependability and maximum user safety. When properly cared for, this product will supply rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings and cautions.
  • Page 2: Table Of Contents

    Specific Safety Rules For the Sander Electrical Information Know Your Sander Operating Instruction Maintenance Troubleshooting Exploded View and Parts List Warranty TECHNICAL DATA 6301 Model Number: Motor: 120 V, 60 Hz, 1.0 A 13,500 RPM (no load) Speed: 6 feet Cord length: 2.2 lbs...
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. 1.
  • Page 4: Specific Safety Rules For The Sander

    GENERAL SAFETY RULES 14. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit. DO NOT store anything above or near the tool. 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear.
  • Page 5: Vibration Safety

    SPECIFIC RULES FOR THE SANDER 6. If the power cord is damaged, it must be replaced only by the manufacturer or by an authorized service center. 7. Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this product, loan them these instructions also.
  • Page 6: Electrical Information

    ELECTRICAL INFORMATION DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protect- ing insulation.
  • Page 7: Know Your Sander

    KNOW YOUR SANDER ON/OFF Switch Vacuum Adapter Detail Sanding Base OPERATING INSTRUCTIONS TOOL SET UP WARNING: To avoid injury from accidental startups, turn switch OFF and remove the plug from the power source outlet before making any adjustments. 1. Before installing sandpaper, make sure the hook and loop fastener base is free of dust and dirt and that the sander is unplugged with the ON/OFF switch in the off “O”...
  • Page 8: General Operating Instructions

    OPERATING INSTRUCTIONS WORKPIECE AND WORK AREA SET UP 1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent distraction and injury. 2. Allign the power cord along a safe route to reach the work area without creating a tripping hazard or exposing the power cord to possible damage.
  • Page 9: Maintenance

    MAINTENANCE TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Make sure that the trigger is in the “O” off-position and unplug the tool from its electrical outlet before performing any procedure in this section. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.
  • Page 10: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST...
  • Page 11 EXPLODED VIEW AND PARTS LIST Item Stock # Description Item Stock # Description 6301-001 Screw 6301-018 Carbon brush 6301-002 Label 6301-019 Spring 6301-003 Right housing 6301-020 Spring 6301-004 Switch 6301-021 Inner pipe 6301-005 Switch cover 6301-022 Rear support 6301-006 Vacuum adapter...
  • Page 12: Warranty

    LIMITED ONE YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of ONE (1) year from date of purchase.
